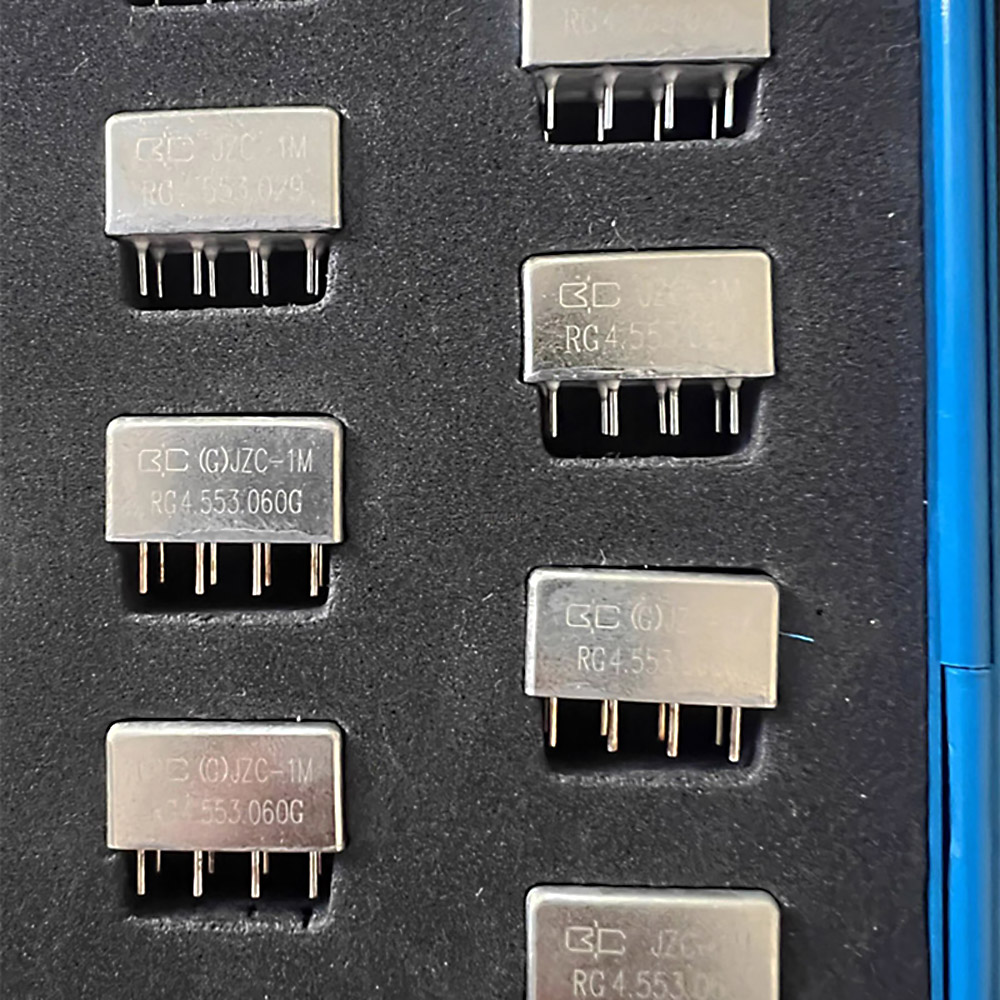

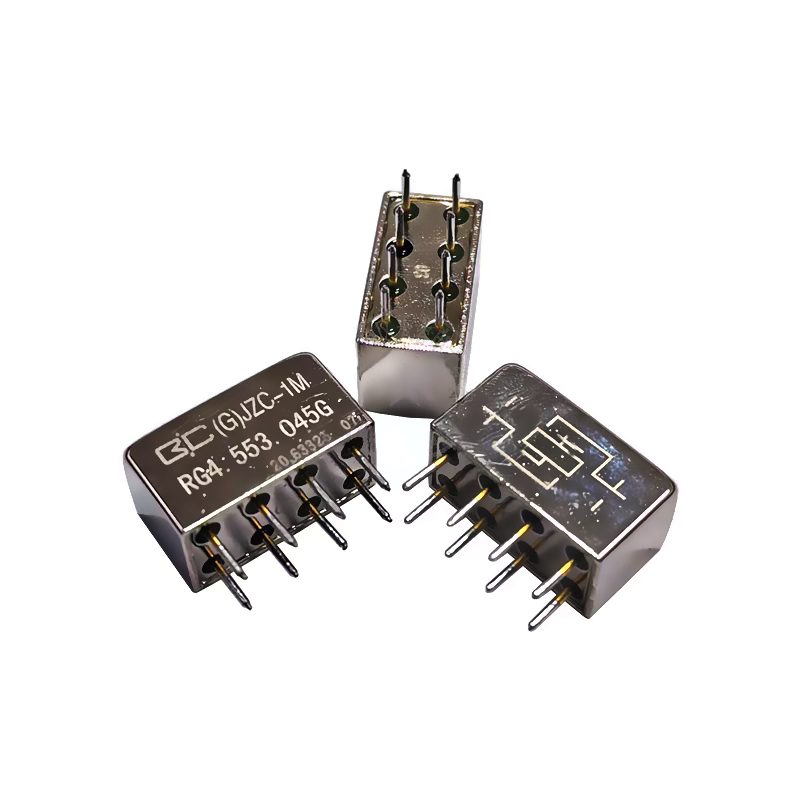

Military DPDT Relay JZC-1M RG4.553.060G

Model No.: JZC-1M RG4.553.060G

Brand: YM

Output: Dc

Relay Type: Telecom

Ambient Temperature: e -65℃~85℃

Relativehumidity: 98% at 40℃

Cyclone: 4kPa

Sinusoidalvibration: 10g,(10～500)Hz

Random Vibration: 0.2g²/Hz,169.1m/s²

Coil Powerconsumption: ≤1.2W

Dielectricwithstandvoltage: Normal atmospheric pressure:500Vr.m.s., 50Hz Under low pressure: 300Vr.m.s., 50Hz

Contact Load Andlife: Resistance, 5A,28 Vd.c., 2×10⁴ timesResistance, 2A,28 Vd.c., 1×10⁵ times Resistance, 2A,115 Va.c., 2×10⁴ times (unearthed housing) Low level, (10-50) μA, (10-50) mV, 1×10⁵ times

Insulationresistance: ≥ 1 0 0 0 MQ

Contact Resistance: Initial value ≤50mQ Life test after ≤100mΩ

Tightness: Leakage rate ≤10³ Pa ·cm³/s
