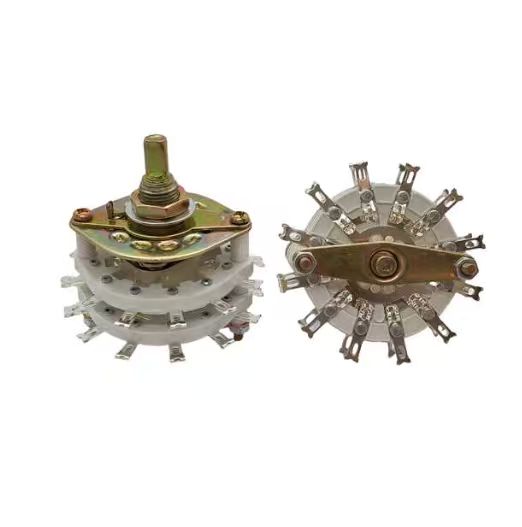

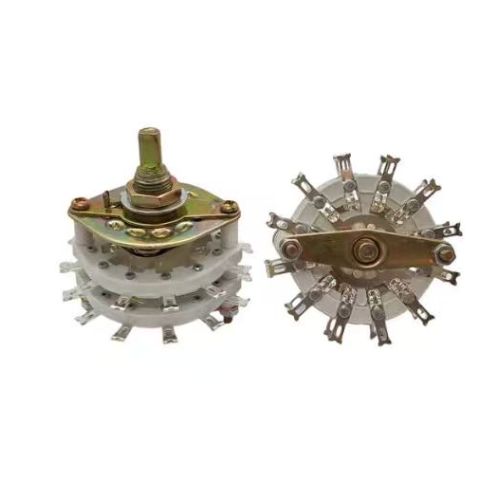

Aviation Bandswitch KCT5W4D
Product Overview
The Military Aviation Bandswitch KCT5W4D for Aerospace Applications represents the pinnacle of precision switching technology for defense and aerospace systems. Engineered as a High-Reliability Aviation Switch KCT5W4D for Aviation Use, this advanced component delivers exceptional performance in mission-critical environments where failure is not an option. With its enhanced design and military-grade construction, the KCT5W4D ensures reliable frequency band selection and signal routing in the most demanding Aviation Applications.
Key Features & Technical Advantages
- Military-Grade Durability: Built as a Durable Aviation Bandswitch KCT5W4D for Critical Operations with materials and construction designed to withstand extreme vibration, shock, and temperature fluctuations.
- Precision Switching Performance: Engineered as a Precision Aviation Switch KCT5W4D for Defense Systems with fast action time (≤4ms) and reliable contact engagement for accurate frequency selection.
- Enhanced Electrical Characteristics: Features low contact resistance (initial ≤50mΩ) and high insulation resistance (>500MΩ) ensuring minimal signal loss and maximum reliability.
- Advanced Sealing Technology: Hermetic sealing with leakage rate ≤1×10⁻³ Pa·cm³/s protects against moisture, dust, and altitude pressure variations.
- Lightweight Design: Weighing under 3 grams, the switch minimizes overall system weight while maintaining robust performance.
- High Cycle Life: Rated for 100,000+ operations under both resistive and low-level load conditions, ensuring long-term reliability.
Technical Specifications
Electrical Parameters
- Coil Power Consumption: 0.3W - 0.43W
- Contact Configuration: 5-position bandswitch with 4 poles (5W4D)
- Contact Load Ratings:
- Resistive Load: 1A at 28V DC, 100,000 operations minimum
- Low-Level Load: (10-50)μA, (10-50)mV, 100,000 operations minimum
- Contact Resistance:
- Initial Value: ≤ 50 mΩ
- After Life Testing: ≤ 200 mΩ
Performance Characteristics
- Switching Speed:
- Action Time: ≤ 4ms
- Release Time: ≤ 4ms
- Incentive Pulse Width: 10ms - 50ms
- Dielectric Strength:
- Normal Atmosphere: 500V RMS, 50Hz
- Low Pressure (Altitude): 250V RMS, 50Hz
Physical & Environmental Specs
- Insulation Resistance:
- Normal Conditions: > 500 MΩ
- After High-Level Life Test: > 50 MΩ
- Weight: < 3 grams
- Sealing Performance: Leakage rate ≤ 1.0 × 10⁻³ Pa·cm³/s
- Operating Temperature Range: Designed for extended temperature specifications
- Wire Coil Specifications: Compatible with standard VDC line coil voltages
Installation & Operation Procedure
- System Preparation: Ensure all power sources are de-energized following MIL-STD-882 safety protocols before installation.
- Mechanical Mounting: Secure the Advanced Aviation Bandswitch KCT5W4D with Enhanced Performance using appropriate mounting hardware, ensuring proper alignment and vibration resistance.
- Electrical Connections: Connect coil terminals to control circuit and RF/switch contacts to signal paths according to system schematics.
- Initial Testing: Apply control voltage and verify smooth band switching across all positions, checking for proper engagement and signal continuity.
- Performance Verification: Test switching speed, contact resistance, and insulation properties to ensure specifications are met.
- Environmental Seal Check: Verify all seals remain intact, particularly for applications exposed to harsh environmental conditions.
Application Scenarios
The Aviation Bandswitch KCT5W4D is engineered for critical applications including:
- Avionics Communication Systems: Frequency band selection in military aircraft communication radios and transceivers
- Radar & EW Systems: Signal routing and frequency selection in radar, electronic warfare, and threat detection systems
- Navigation Equipment: Band switching for GPS, TACAN, and other navigation systems in Aviation platforms
- Test & Measurement: Integration into aviation test equipment and ground support systems for frequency band selection
- Unmanned Aerial Systems: Lightweight, reliable switching in UAV communication and sensor systems
- Satellite Communication: Frequency band selection in airborne SATCOM systems for military communications
Value Proposition for Defense Procurement
- Enhanced System Reliability: Military-grade construction and testing ensure dependable performance in critical operations, reducing system failures.
- Reduced Lifecycle Costs: Extended operational life (100,000+ cycles) and durability minimize replacement frequency and maintenance requirements.
- Improved Signal Integrity: Low contact resistance and high insulation resistance preserve signal quality in sensitive RF applications.
- Weight Optimization: Lightweight design contributes to overall weight reduction in aircraft systems, improving fuel efficiency and performance.
- Simplified Logistics: Standardized design and proven reliability simplify supply chain management and reduce inventory complexity..
Certifications & Quality Assurance
Manufactured in facilities implementing comprehensive quality management systems, the KCT5W4D bandswitch is designed and tested to meet relevant military and aerospace standards. Our production processes include rigorous testing protocols to ensure consistent performance and reliability for defense applications.
Customization Options
We understand that standard configurations may not meet all application requirements. Available customization options include:
- Specific coil voltage configurations and impedance matching
- Custom contact materials and plating for specialized applications
- Modified switching sequences and position configurations
- Special environmental sealing for extreme operating conditions
- Application-specific mounting configurations and form factors
- Custom testing and qualification to meet specific military standards
Frequently Asked Questions
What are the primary applications for the KCT5W4D bandswitch?
The KCT5W4D is designed for military aviation applications including communication systems, radar, navigation equipment, and electronic warfare systems where reliable frequency band selection is critical.
Can this switch handle RF signals effectively?
Yes, with its low contact resistance (≤50mΩ initial) and high insulation resistance (>500MΩ), the KCT5W4D is engineered to maintain signal integrity in RF applications while providing reliable switching performance.
What environmental conditions can the switch withstand?
Designed for military aviation environments, it withstands extreme vibration, shock, wide temperature ranges, altitude variations, and features hermetic sealing (≤1×10⁻³ Pa·cm³/s leakage rate) for moisture and contaminant protection.
Is the switch compatible with automated assembly processes?
Yes, the KCT5W4D is designed for compatibility with automated assembly systems and includes features that facilitate robotic handling and installation in high-volume production environments.
What quality testing is performed on each unit?
Every unit undergoes 100% electrical testing including contact resistance, insulation resistance, dielectric strength, switching speed, and functional verification. Batch testing includes environmental stress screening and life cycle testing.
Are samples available for evaluation and testing?
Yes, we provide evaluation samples to qualified B2B clients. Contact our technical sales team to discuss your specific requirements and testing protocols.
