KX035-30-1D4WD Military Aviation Potentionmeter

Product Overview

The KX035-30-1D4WD is a high‑precision, multi‑turn potentiometer engineered for military Aviation Applications, including band switches, radar tuning, autopilot reference inputs, and cockpit control panels. This military grade aviation switch (potentiometer with switching function) provides accurate, repeatable voltage division and/or contact switching for frequency selection, gain control, and position sensing. Featuring a rugged, hermetically sealed housing (leakage ≤10⁻³ Pa·cm³/s), wide temperature range (-55°C to +125°C), and excellent vibration resistance (20g RMS), the KX035‑30-1D4WD delivers reliable performance in fighter jets, helicopters, drones, and ground support equipment. Its conductive plastic resistive element ensures long mechanical life (1×10⁶ cycles) and low contact resistance variation. As a core product in YM’s aviation control portfolio – which includes Aviation Rocker Switch with military grade, certified aircraft rocker switches, aviation encoding switch with military grade, gx Aviation Connector, and static encoder aviation – the KX035‑30-1D4WD is the ideal choice for demanding frequency selection and control applications.

Technical Specifications

Electrical Characteristics

• Resistance range: 500Ω to 100kΩ (standard), other values available on request
• Tolerance: ±5% standard; ±2% (precision grade)
• Power rating: 1.5W at 70°C, derated to 0W at 125°C
• Maximum operating voltage: 350V DC
• Contact resistance variation (CRV): ≤1.5% of total resistance or 5Ω, whichever is greater
• Insulation resistance: >1000MΩ at 500V DC
• Dielectric strength: 1000Vrms between terminals and case

Switching Function (Band Switch Section)

• Number of positions: 6, 8, or 12 positions (specify when ordering)
• Contact configuration: SPST or SPDT per deck (up to 2 decks)
• Switching current: 1A at 28V DC (resistive); 0.5A at 115V AC 400Hz
• Initial contact resistance: ≤50mΩ; after life ≤200mΩ
• Switching life: 1×10⁵ cycles at rated load

Mechanical & Environmental (Aviation Grade)

• Mechanical rotation: 3600° (10 turns) continuous with stops (potentiometer); detent angles for switch positions
• Mechanical life (potentiometer): 1×10⁶ cycles
• Operating torque: 0.8 – 2.5 N·cm
• Sealing (leakage rate): ≤10⁻³ Pa·cm³/s (hermetic, glass‑to‑metal seal)
• Operating temperature: -55°C to +125°C
• Vibration: 20g RMS, 10-2000Hz per RTCA/DO‑160
• Shock: 50g, 11ms half‑sine
• Weight: ≤35g
• Terminal style: Gold‑plated solder lugs or PCB pins (30° or 45° spacing)

All parameters are validated at 25°C ambient. The KX035‑30-1D4WD meets MIL‑PRF‑39023 (potentiometer) and MIL‑PRF‑3786 (switch) requirements.

Product Images & Visuals

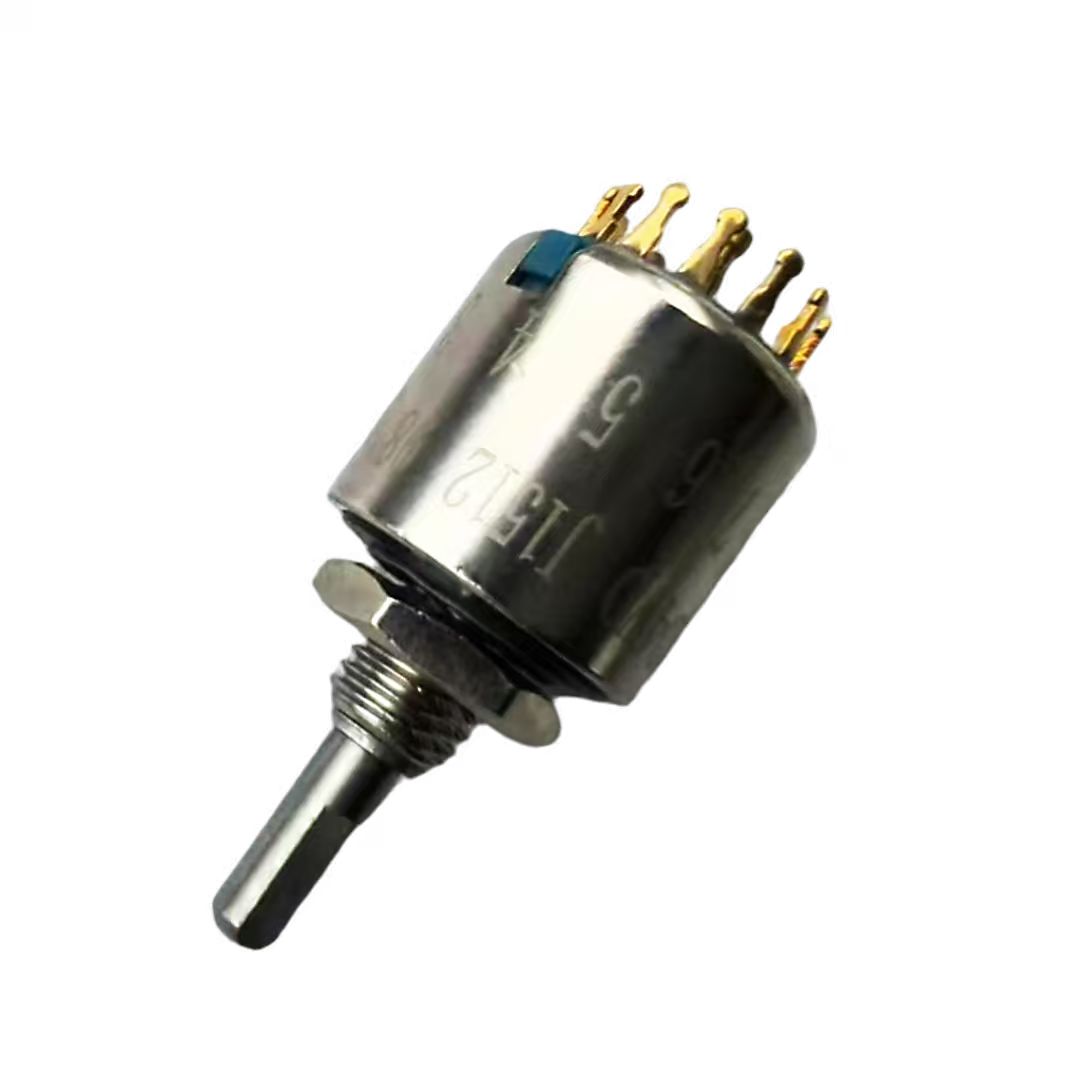

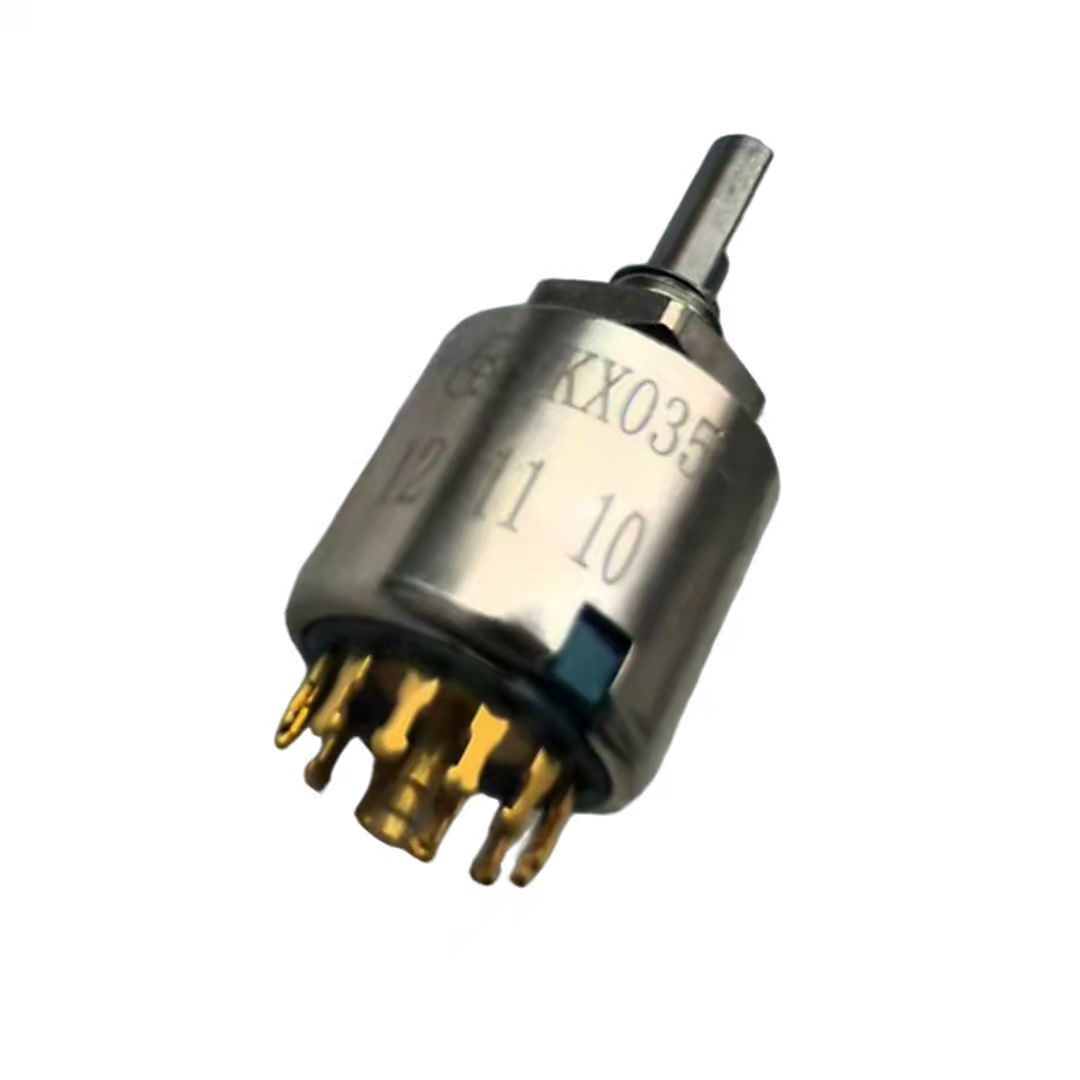

Above: KX035‑30-1D4WD series potentiometer/band switch. Contact YM for dimensional drawing, pinout, and environmental qualification reports.

Key Features & Advantages for Military Aviation

• Integrated potentiometer + band switch: Combines precision resistance adjustment with multi‑position switching in one compact unit – saves panel space and reduces wiring in radio tuning and radar control panels.
• Hermetic sealing (≤10⁻³ Pa·cm³/s): Glass‑to‑metal seal protects against moisture, fuel vapors, and altitude changes – ensures reliable operation in unpressurized bays and engine compartments.
• High precision & low CRV: ≤1.5% CRV and ±2% resistance tolerance enable accurate frequency setting and repeatable gain control – critical for mission‑critical communication and navigation systems.
• Wide temperature & vibration tolerance: -55°C to +125°C and 20g vibration meet RTCA/DO‑160 – suitable for fighters, helicopters, drones, and ground stations.
• Long mechanical & electrical life: 1×10⁶ potentiometer cycles and 1×10⁵ switch cycles reduce maintenance and replacement costs.
• Compatible with military rocker switches & encoders: Matches YM’s aviation rocker switch with military grade and aviation encoding switch with military grade for unified cockpit aesthetics and wiring.

YM’s engineering advantage: The KX035‑30-1D4WD shares proven contact technology with our certified aircraft rocker switches and Military Grade Switch families. Compared to commercial potentiometers, it offers true hermeticity and 10x longer life. For complete control systems, YM also provides gx aviation connector, static encoder aviation, and aviation encoding switch 28v – a one‑stop source for aircraft panel manufacturers.

How to Install & Use the Aviation Potentiometer with Band Switch – Step by Step

1. Identify pinout and detent positions: Refer to the datasheet for the terminal arrangement (potentiometer wiper, CW, CCW, and switch common/NO/NC). Note the number of detent positions (6, 8, or 12).
2. Panel mounting: Insert the potentiometer through a standard 0.5” (12.7mm) panel hole. Secure with the supplied hex nut and lock washer. Torque to 0.8‑1.2 N·m. Do not overtighten.
3. Wiring: Solder MIL‑spec wires (22‑24 AWG) to the gold‑plated terminals. For the potentiometer section, connect CW to reference voltage (e.g., +5V or +28V), CCW to ground, and wiper to the signal input. For the switch section, connect common to the load or logic input, and NO/NC to the respective circuits.
4. Mechanical integration: Attach a knob (customer supplied) to the 6mm slotted or D‑shaft. Ensure the knob does not contact the panel and rotates freely through all detents.
5. Functional test: Rotate the shaft through the full range. Measure wiper voltage – it should change smoothly from 0% to 100% of reference. At each detent, verify switch contact closure (continuity) as specified.
6. Maintenance: Periodically check for loose connections or shaft seal damage. Clean exterior with isopropyl alcohol – do not immerse. The hermetic seal requires no internal maintenance.

Pro tip for avionics integrators: Use the potentiometer section for continuous control (e.g., volume, brightness) and the switch section for discrete band selection. YM can pre‑wire the component to a mating connector for plug‑and‑play installation.

Application Scenarios & Key Buyer Benefits

Typical Military & Aerospace Applications

• Radio frequency (RF) tuning panels: Frequency selection (band switch) and fine tuning (potentiometer) in communication/navigation radios.
• Radar & electronic warfare (EW) control: Gain adjustment, frequency hopping band selection, and pulse width control – hermetic sealing prevents contamination.
• Cockpit instrument panels: Altimeter barometric pressure adjustment, heading reference set, and display brightness control.
• Drone ground control stations (GCS): Gimbal tilt/pan control with detent for center position – lightweight and vibration‑resistant.
• Weapon system simulators & training devices: Replica controls requiring both rotary switch and potentiometer functions.

Direct Value to International Buyers (Defense OEMs, MROs, Panel Builders)

• Reduced panel space & weight: Combining two functions (switch + pot) cuts component count and wiring – lowers overall system cost.
• Enhanced reliability: Hermetic sealing and 1×10⁶ cycle life eliminate early failures – reduces field returns and unscheduled maintenance.
• Easy retrofitting: Standard 0.5” mounting hole and terminal spacing match many legacy band switches (e.g., in C‑130, F‑16, Black Hawk) – no panel rework.
• Supply chain consolidation: The KX035‑30-1D4WD complements YM’s full line of aircraft rocker switches, aviation swing arm switch, and protect switch – one qualified source for all cockpit controls.

For new aircraft or drone programs, YM offers custom resistance values, detent angles, and shaft configurations. Engineering samples available for qualification testing.

Certifications & Compliance

• MIL-PRF-39023 (precision potentiometers).
• MIL-PRF-3786 (rotary switches – band switch section).
• RTCA/DO-160G (environmental – temperature/altitude, vibration, humidity, salt spray).
• MIL-STD-810G (shock, vibration, temperature extremes).
• AS9100D (aerospace quality management).
• RoHS & REACH compliant – full material declaration available.

Each KX035‑30-1D4WD unit is 100% tested for resistance, CRV, insulation resistance, dielectric strength, switch contact resistance, and mechanical detent operation. Lot traceability per AS9100 is maintained. First Article Inspection (FAI) reports per AS9102 are provided upon request.

Customization Options

YM supports tailored KX035‑30-1D4WD variants for volume military and aerospace orders. Customizations include:

• Resistance & taper: 100Ω to 500kΩ, linear or logarithmic.
• Number of switch positions: 4, 6, 8, 10, 12 positions with adjustable stops.
• Switch contact material: Gold‑plated (standard) or silver‑cadmium oxide (for higher current).
• Shaft configuration: Round, D‑shaft, slotted, or custom length; with or without detent.
• Terminal style: Solder lugs, PCB pins, or flying leads with MIL‑spec connector.
• Sealing level: Hermetic (standard) or panel‑sealed with silicone boot (IP67).
• Marking: Laser engraving of customer part number, resistance value, and switch position indicators.

Our engineering team provides free feasibility analysis and 3D models for integration. Minimum order quantities for custom options apply – contact YM with your specification sheet.

Production Process & Quality Assurance (AS9100D Certified)

YM’s aviation potentiometer and switch production line follows a zero‑defect, fully traceable process designed to meet the most stringent requirements for aerospace and defense programs.

• Raw material control: 100% certification of resistive elements, wiper assemblies, contact springs, glass preforms, and metal housings – all from approved aerospace suppliers with COC and batch traceability.
• Resistive element deposition & trimming: Precision screen printing and laser trimming to achieve ±2% tolerance.
• Switch contact assembly in Class 100 cleanroom: Riveting of fine‑silver contacts; dynamic force testing to ensure ≤50mΩ resistance.
• Hermetic sealing & leak detection: Glass‑to‑metal sealing of terminals; 100% helium mass spectrometry leak test (sensitivity 10⁻⁹ Pa·cm³/s).
• Environmental screening (100% for high‑rel lots): Thermal cycling (-55°C to +125°C, 10 cycles), vibration (20g RMS), and mechanical life test (1×10⁶ potentiometer cycles + 1×10⁵ switch cycles).
• Final electrical test: Automated test system (ATS) measures resistance, CRV, insulation resistance, dielectric strength, and switch contact resistance at each position.
• Destructive Physical Analysis (DPA): One unit per lot cross‑sectioned per MIL‑STD‑1580 for internal workmanship.

With decades of experience in aviation switch with military grade and aviation encoder manufacturing, YM has supplied potentiometers and band switches to major defense contractors and cockpit integrators. The KX035‑30-1D4WD is built to exceed the reliability expectations of next‑generation aircraft control systems.
