Ultra-Miniature High-Density Circular Connector
Product Overview

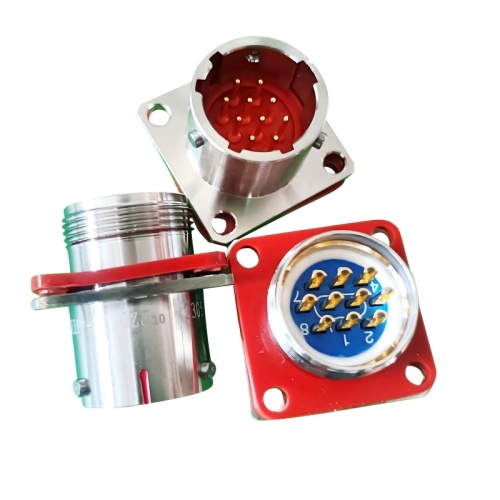

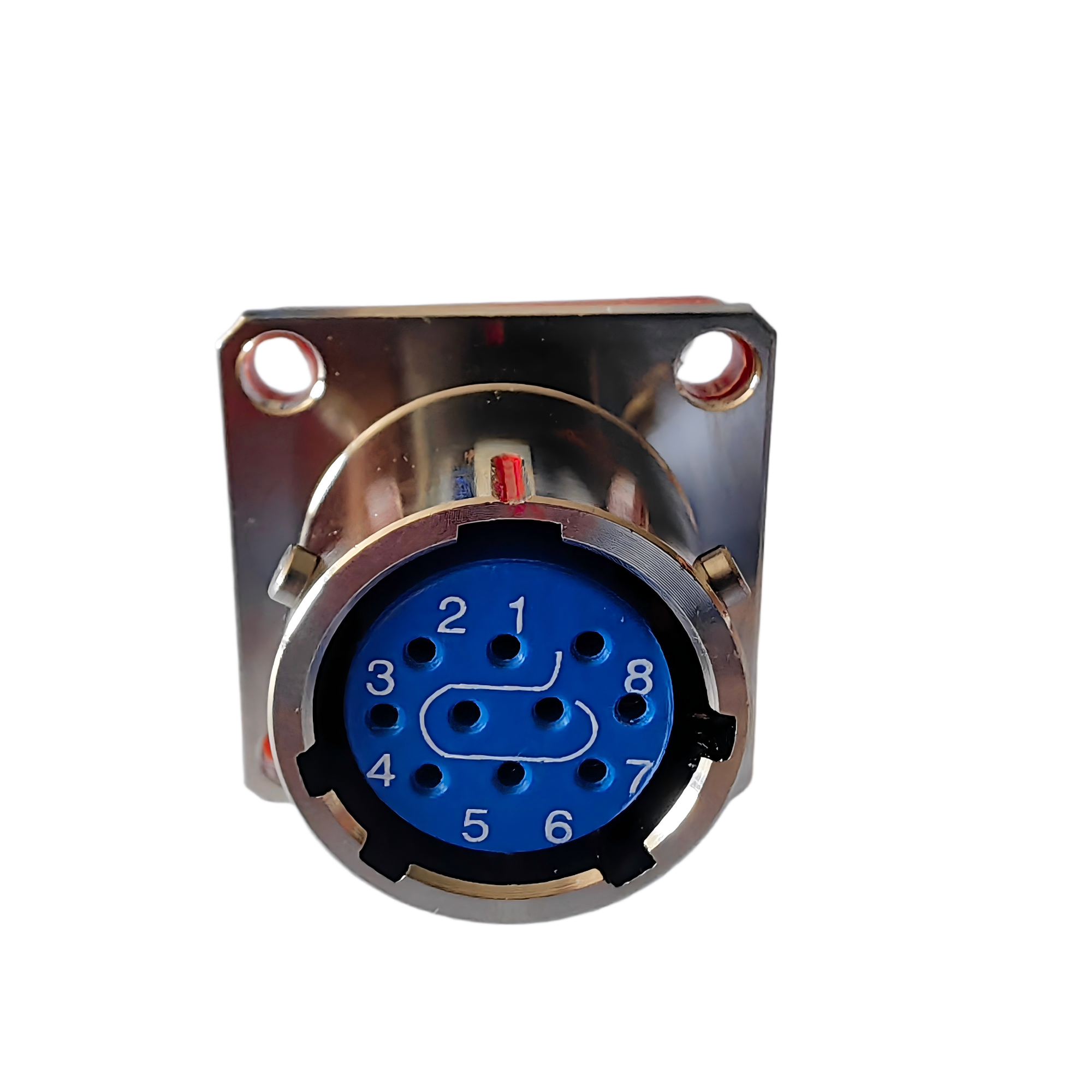

The YM Military Aviation Connector Y11P-1210ZK10 is an ultra-miniature, high-density circular connector engineered for mission-critical signal transmission in the most space-constrained aerospace and defense applications. Designed specifically for integration with Aviation Microswitch systems, Military Aviation Encoding switch interfaces, and compact drone flight control units, this connector provides reliable performance where traditional connectors cannot fit. As a key component in YM's comprehensive aviation portfolio—which includes complementary products like Aviation Temperature Sensor and Aviation Hours Timer—the Y11P-1210ZK10 delivers exceptional signal integrity and environmental protection in ultra-compact form factors.
Core Advantage: Unmatched miniaturization with high contact density in a circular design, providing reliable interconnection in applications where millimeter-level space constraints dictate component selection.
Technical Specifications
- Model: Y11P-1210ZK10
- Connector Type: Ultra-Miniature Circular
- Physical Characteristics:
- Shell Diameter: 12mm or smaller (ultra-compact design)
- Material: Stainless steel or aluminum alloy with protective plating
- Weight: Typically under 5 grams
- Contact System:
- Contact Configuration: High-density circular arrangement
- Contact Types: Precision machined contacts with gold plating
- Contact Count: 7 to 19 positions (standard configurations)
- Current Rating: 2A per contact maximum
- Contact Resistance: ≤20mΩ initial resistance
- Electrical Performance:
- Voltage Rating: 250V AC/DC working voltage
- Insulation Resistance: >1000 MΩ at 500V DC
- Dielectric Strength: 1000V AC RMS between contacts and shell
- EMI/RFI Shielding: Metal shell provides effective shielding
- Environmental Specifications:
- Ingress Protection: IP67 rated when properly mated
- Operating Temperature: -55°C to +125°C
- Sealing: Multi-point silicone sealing system
- Vibration Resistance: Meets MIL-STD-202 requirements
- Coupling Mechanism: Threaded or bayonet coupling options
Product Features & Advantages
- Ultra-Compact Circular Design: Provides the smallest possible circular footprint while maintaining reliable performance, ideal for interfacing with Aviation Button Switch clusters and Aviation Swing arm Switch controls in tight spaces.
- High-Density Contact Arrangement: Maximizes signal transmission capability in minimal circular area, enabling multiple Aviation Temperature Sensor and Military Pressure Sensor connections through a single ultra-miniature interface.
- Advanced Micro-Sealing Technology: Precision-engineered sealing system provides environmental protection comparable to larger Military Aviation connector systems, ensuring reliability in harsh aviation conditions.
- Military-Grade Durability: Meets rigorous specifications for vibration, shock, and mechanical stress, ensuring compatibility with other military-grade components like Military Electronic Horn and Aviation Magnetic Valve systems.
- Lightweight Construction: Minimal weight contributes to overall system weight reduction, critical for drone and aircraft applications where every gram matters.
- Easy Field Serviceability: Designed for tool-assisted mating and demating, allowing maintenance in confined spaces without special equipment.
Our Manufacturing Advantage: YM leverages specialized precision manufacturing capabilities developed through producing Aviation Microswitch and Military Aviation Encoding switch components to create ultra-miniature connectors with exceptional dimensional accuracy and reliability.
How to Integrate the Y11P-1210ZK10 Connector
- Space Assessment: Verify available installation space matches the ultra-compact dimensions. This connector is ideal when interfacing multiple Aviation Rocker Switch controls or sensor inputs in extremely limited spaces.
- Configuration Selection: Select appropriate contact count (7-19 positions) based on signal requirements. Consider compatibility with existing Military aircraft Plug and socket systems.
- Cable Preparation: Use precision crimping tools for the miniature contacts. Ensure proper wire stripping and contact insertion according to manufacturer specifications.
- Connector Assembly: Assemble connector with proper sealing grommets and backshell. Follow torque specifications for coupling mechanism to ensure environmental sealing.
- System Integration and Testing: Connect to complementary systems like Aviation Press Meter displays or Aviation Cold Air Solenoid Valve controls. Perform electrical continuity and insulation resistance testing.
Application Scenarios
The Y11P-1210ZK10 is essential for ultra-miniaturized aviation and defense systems:
- Micro-Drone Avionics: Primary interface for micro flight controllers connecting to Aviation Temperature Sensor arrays, miniature Aviation Pressure Release Valve controls, and nano-GPS modules.
- Aircraft Cockpit Controls: Connects Military Aviation Band Switch clusters, Aviation Button Switch arrays, and miniature indicator lights in space-constrained control panels.
- Engine Monitoring Systems: Interfaces between micro-sensors and engine control units, working alongside Aviation Oil Sealed Valve and Hydraulic Circuit Breaker monitoring circuits.
- Portable Military Electronics: Provides connections in handheld targeting systems, man-portable communication devices, and dismounted soldier equipment.
- Medical Aviation Equipment: Used in portable medical devices and emergency equipment onboard aircraft and medical evacuation helicopters.
- Ground Support Test Equipment: Interfaces in portable test sets for Aviation Copper Fuse Holder systems and Aviation Single Hydraulic Valve diagnostics.
Value for Buyers: Enables breakthrough miniaturization in critical systems, reduces weight and space requirements significantly, maintains high reliability in extreme environments, simplifies installation in confined spaces, and provides long-term durability matching aviation industry standards.
Certifications & Compliance
Manufactured in our SGS-audited facility, the Y11P-1210ZK10 meets relevant MIL specifications for miniature circular connectors and is produced under ISO 9001:2015 certified quality management systems. Our connectors comply with RoHS and REACH directives, and we support project-specific certifications including UL, CE, and military qualification testing. This certification approach aligns with our production of other aviation components like Aviation Oxygen Valve and Military Aviastion Temperature Sensor systems.
Customization Options
YM provides specialized customization for the Y11P-1210ZK10 to meet specific ultra-miniature application requirements:
- Custom Contact Configurations: Design specialized contact arrangements for specific Aviation Microswitch or sensor interface requirements in confined spaces.
- Special Shell Materials: Custom materials including specialized alloys or composites for unique weight or corrosion resistance requirements.
- Enhanced Sealing Solutions: Special sealing designs for integration with Aviation Oxygen Valve systems or other critical Aviation Applications requiring ultra-miniature connections.
- Custom Coupling Mechanisms: Specialized locking designs for tool-free operation or unique installation requirements in confined spaces.
- Complete Cable Assemblies: Pre-terminated ultra-flexible cable systems for installation in tightly routed aircraft harnesses.
- Special Color Coding: Custom shell colors or marking for easy identification in complex miniature systems.
Our extensive OEM/ODM experience with ultra-miniature aviation components, including Aviation Button Switch and Military Aviation Encoding switch systems, enables us to provide tailored connector solutions for your most challenging space-constrained applications.
Production & Quality Assurance
Every Y11P-1210ZK10 connector undergoes rigorous manufacturing and testing processes:
- Precision Micro-Machining: Shells and contacts are produced using advanced CNC micro-machining technology maintaining sub-millimeter tolerances.
- Selective Micro-Plating: Precision plating processes apply gold to miniature contact surfaces using specialized equipment developed for Aviation Microswitch production.
- Micro-Molding Technology: Insulators and seals are produced using specialized micro-molding equipment with exacting dimensional control.
- Automated Micro-Assembly: Robotic assembly systems handle miniature components with precision required for reliable ultra-miniature connector performance.
- Advanced Optical Inspection: 100% automated optical inspection using high-magnification vision systems to verify critical micro-dimensions.
- Comprehensive Micro-Testing: Electrical testing includes micro-contact continuity, insulation resistance, and dielectric strength verification, plus environmental testing matching standards for Military Aviastion Temperature Sensor components.
This quality assurance program ensures connectors meet the same high standards as our other ultra-miniature aviation components, including Aviation Hours Timer and Aviation Haulage Pressure Sensor products, for reliable performance in the most space-constrained applications.
