Product Overview

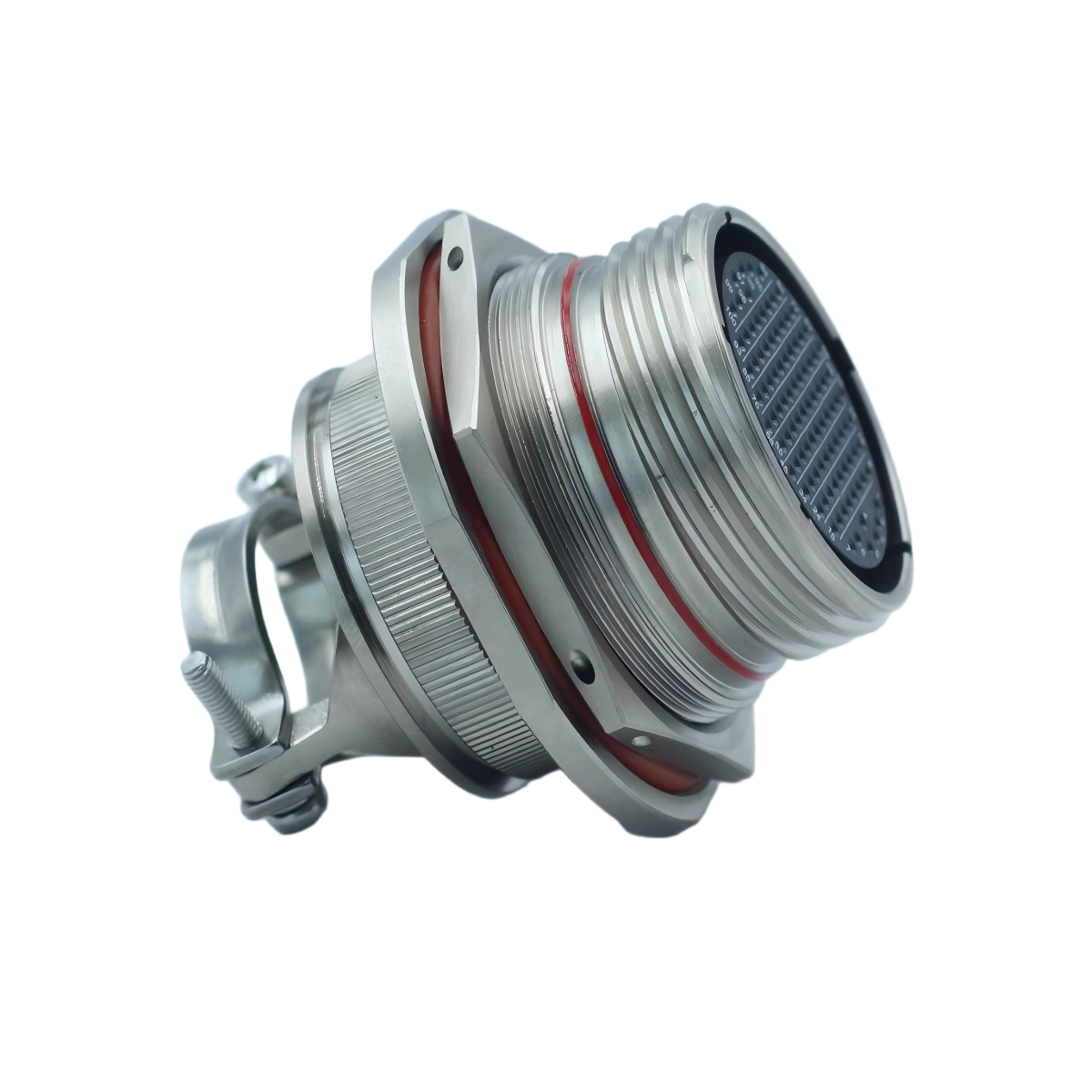

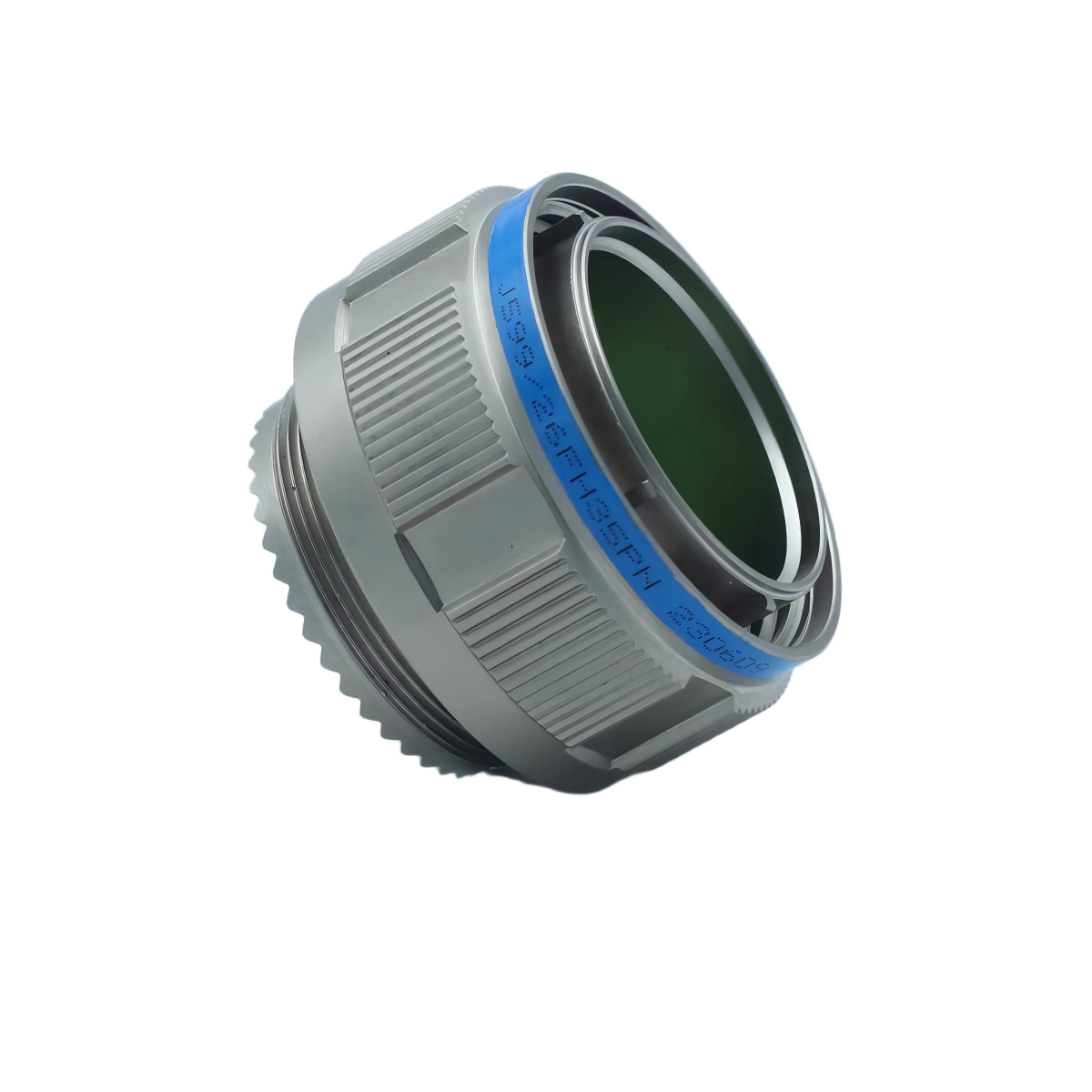

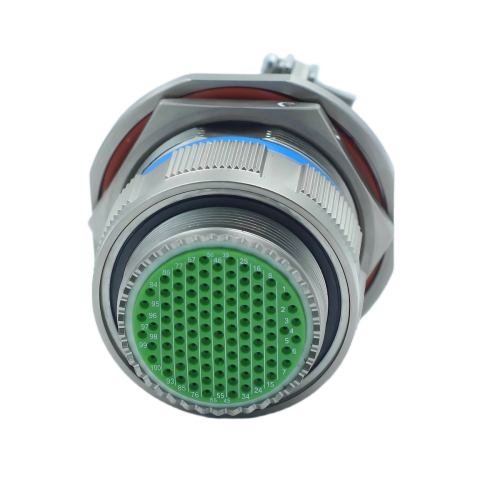

The Military Aviation Connector J599 24FH35SN represents the pinnacle of reliability and performance for critical aerospace applications. Designed as a Reliable J599 24FH35SN for Military Aviation Use, this high-performance connector meets the stringent demands of modern military aircraft systems. With 100-pin configuration and military-grade construction, it ensures secure electrical connections in the most challenging environments where failure is not an option.
Key Features & Advantages
- Military-Grade Construction: Built as a Durable J599 24FH35SN for Military Aircraft Systems with materials that withstand extreme vibration, shock, and temperature variations.
- High-Density 100-Pin Configuration: Optimized for complex aviation systems requiring multiple connections in compact spaces.
- Superior Electrical Performance: Features low contact resistance (≤50mΩ initial) and high insulation resistance (>500MΩ) for reliable signal transmission.
- Environmental Sealing: Advanced hermetic sealing with leakage rate ≤1×10⁻³ Pa·cm³/s protects against moisture, dust, and altitude pressure changes.
- Quick-Action Coupling: Designed for fast, secure mating and unmating even in challenging operational conditions.
- EMI/RFI Shielding: Built-in electromagnetic interference protection ensures clean signal transmission in dense electronic environments.
- Corrosion Resistance: Materials and plating selected for resistance to salt spray, chemicals, and other corrosive elements common in aviation operations.
Technical Specifications
Electrical Characteristics
- Connector Type: J599 Series, 24FH35SN configuration
- Pin Configuration: 100-pin arrangement
- Contact Ratings:
- Current Rating: Up to 7.5A per contact
- Voltage Rating: 1000V RMS at sea level
- Contact Resistance: ≤ 50mΩ initial, ≤ 200mΩ after lifecycle testing
- Insulation Resistance: > 5000 MΩ minimum at 500V DC
- Dielectric Withstanding Voltage: 1500V RMS at sea level
Mechanical Specifications
- Shell Material: Aluminum alloy with cadmium plating per MIL-DTL-38999
- Insert Material: Thermoplastic with high temperature resistance
- Contact Material: Gold-plated copper alloy for optimal conductivity
- Coupling Mechanism: Threaded coupling with positive locking
- Operating Temperature: -65°C to +200°C
- Vibration Resistance: MIL-STD-202, Method 214
- Shock Resistance: MIL-STD-202, Method 213
Environmental Performance
- Sealing: Hermetically sealed to withstand immersion
- Corrosion Resistance: Salt spray tested per MIL-STD-810
- Fluid Resistance: Resistant to aviation fuels, hydraulic fluids, and cleaning solvents
- Altitude Rating: Operational up to 70,000 feet
Installation & Mating Procedure
- Preparation: Inspect connector shells and contacts for damage. Clean mating surfaces with approved solvents.
- Alignment: Align key and keyway of both connector halves to ensure proper orientation.
- Initial Engagement: Gently engage connector halves, ensuring straight alignment to prevent pin damage.
- Coupling: Rotate coupling nut clockwise until initial resistance is felt. Do not force engagement.
- Final Torque: Apply specified torque (typically 50-70 in-lbs) to achieve proper seal compression.
- Verification: Check alignment marks and locking indicators to confirm secure mating.
- Testing: Perform continuity and insulation resistance tests before system activation.
Application Scenarios
The Military Aviation Connector J599 24FH35SN is engineered for demanding applications including:
- Avionics Systems: Critical connections for flight control computers, navigation systems, and communication equipment
- Weapons Systems: Reliable interconnects for targeting systems, armament control, and defensive countermeasures
- Engine Control: High-density connections for FADEC (Full Authority Digital Engine Control) systems
- Sensor Networks: Interconnects for radar, EO/IR sensors, and surveillance systems
- Power Distribution: Main power bus connections and secondary power distribution panels
- Ground Support Equipment: Test interfaces and maintenance connections for aircraft systems
Value for Defense Procurement
- Enhanced Mission Reliability: Military-grade construction and rigorous testing ensure mission-critical connections remain secure in combat conditions.
- Reduced Maintenance Costs: Durable design and corrosion resistance minimize maintenance requirements and extend service intervals.
- Improved System Performance: Low contact resistance and EMI shielding ensure optimal signal integrity for sensitive avionics.
- Simplified Logistics: Standard J599 configuration ensures interoperability with existing military systems and reduces spare parts inventory.
- Weight Optimization: Advanced materials and design contribute to overall aircraft weight reduction without compromising durability.
- Lifecycle Cost Reduction: Extended service life and reduced failure rates lower total ownership costs over the aircraft lifecycle.
Certifications & Compliance
The J599 24FH35SN connector is manufactured in compliance with MIL-DTL-38999 Series IV specifications and other relevant military standards. Our production facilities maintain AS9100 quality management certification, and components are tested to meet or exceed performance requirements for military Aviation Applications.
Customization Options
ABC offers comprehensive customization services to meet specific mission requirements:
- Contact Configuration: Custom pin arrangements and contact types
- Shell Finishes: Special plating and coating options for enhanced corrosion resistance
- Cable Integration: Custom cable assemblies and backshell configurations
- Environmental Sealing: Enhanced sealing for specific altitude or immersion requirements
- Identification: Custom marking, color coding, and serialization
- Testing Protocols: Application-specific qualification testing and certification support
Manufacturing Excellence
Every J599 24FH35SN connector undergoes precision manufacturing with automated crimping and assembly processes. Our quality assurance includes 100% electrical testing, automated optical inspection, and batch testing to military standards. Environmental stress screening and life cycle testing ensure reliability in the most demanding conditions. This rigorous approach guarantees that every connector meets the exacting standards required for High Performance Military Aviation Connector J599 24FH35SN applications.
Frequently Asked Questions
What military specifications does the J599 24FH35SN meet?
The connector complies with MIL-DTL-38999 Series IV specifications and is tested to meet performance requirements for MIL-STD-810 environmental conditions and MIL-STD-202 test methods.
Can this connector withstand combat aircraft vibration levels?
Yes, it is specifically designed and tested to withstand the vibration profiles specified in MIL-STD-810 for fixed-wing and rotary aircraft applications, including combat maneuver conditions.
What is the mating cycle life of this connector?
The J599 24FH35SN is rated for 500 minimum mating cycles while maintaining electrical and environmental performance, exceeding typical aviation requirements.
How does the connector perform in high-altitude conditions?
With its hermetic sealing (≤1×10⁻³ Pa·cm³/s leakage rate) and altitude rating to 70,000 feet, the connector maintains performance in high-altitude flight conditions.
What EMI protection does the connector provide?
The connector features 360° shielding and meets MIL-STD-461 requirements for electromagnetic interference, ensuring reliable operation in dense electronic environments.
Are tooling and installation support available?
Yes, we provide comprehensive tooling kits, installation guides, and technical support for integration into military aviation systems.
