Military Aviation Connector J599 20KD18PN

Standardized High-Reliability Interconnect Solution

Product Overview

The Military Aviation Connector J599 20KD18PN is a high-reliability interconnect component designed to meet stringent military and aerospace standards. As part of the renowned J599 series, this connector exemplifies aviation connector with military grade quality, offering a standardized yet robust solution for critical electrical systems. Engineered for extreme environments, it serves as a dependable military connector for aviation use, ensuring secure power and signal transmission in applications where performance and durability are non-negotiable. Its design prioritizes interoperability and reliability, making it a preferred choice for upgrade programs and new designs alike.

Product Images

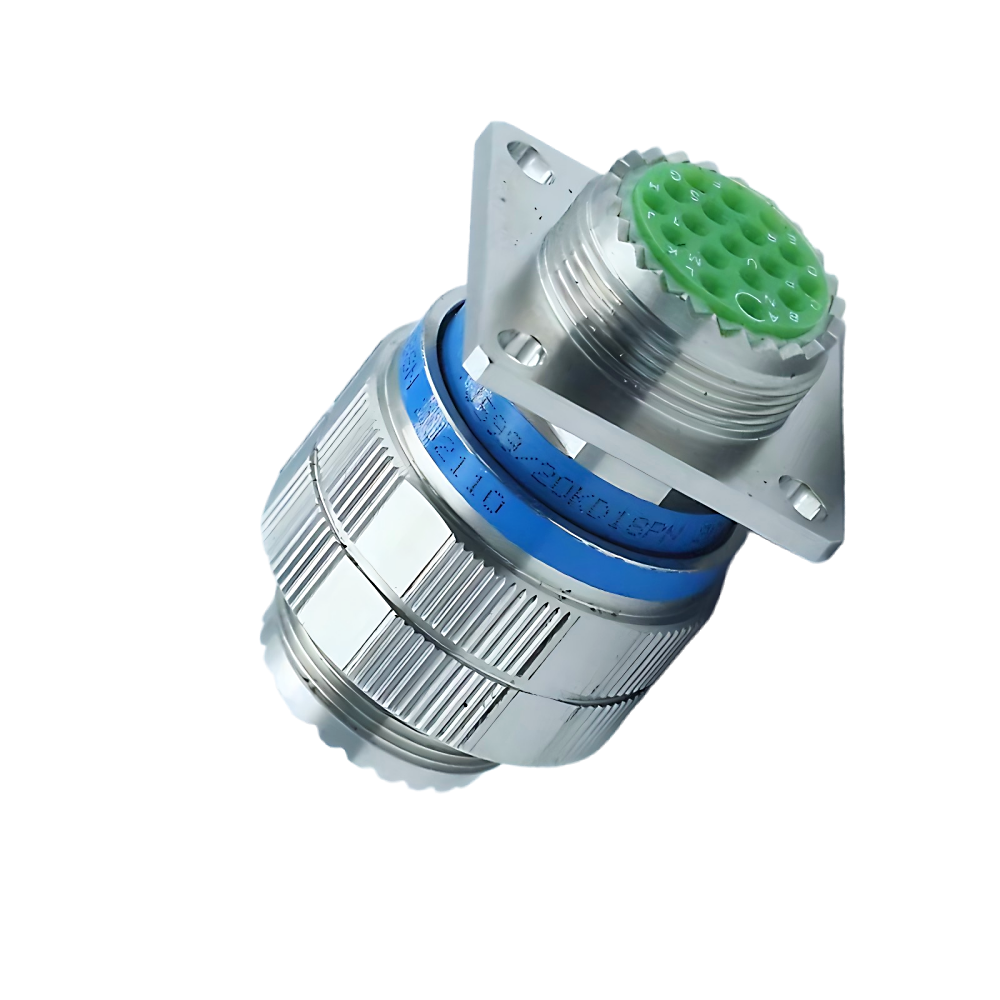

Military Aviation Connector J599 20KD18PN front and angled view

Detailed technical view of J599 20KD18PN connector assembly

Product Features & Advantages

The J599 20KD18PN connector delivers exceptional value through its proven design and superior engineering:

Standardized Reliability: Conforms to the widely recognized J599 (MIL-DTL-38999) series interface, ensuring compatibility and interchangeability within systems designed to this robust military connector specification.
Exceptional Environmental Sealing: Achieves high levels of ingress protection (IP68 equivalent) against moisture, dust, and fluids, with performance validated under both normal and low-pressure conditions.
High-Durability Contacts: Equipped with premium aviation grade terminals that provide low and stable contact resistance over an extended operational lifespan, far exceeding that of general aviation plugs.
Robust Mechanical Design: Features a bayonet coupling mechanism (as indicated by "KD") for quick, secure, and vibration-proof mating, essential for high-shock military aviation environments.
Superior Electrical Performance: Offers high dielectric strength and insulation resistance, ensuring signal integrity and preventing leakage in complex aerospace electrical connectors systems.
Lightweight & Streamlined: Maintains a weight of less than 3 grams, contributing to overall weight savings without compromising the ruggedness required for a military aviation plug.

This connector is a quintessential aviation type military spec connector plug, manufactured with rigorous adherence to army aviation quality control regulations to guarantee field performance.

Technical Specifications

The J599 20KD18PN's capabilities are defined by precise, measurable parameters that ensure it meets mission requirements:

Series & Shell Style: J599 Series, Shell Size 20, Bayonet Coupling (KD).
Coil Power Consumption: Operating range from 0.3 to 0.43 Watts.
Contact Performance & Life:
- Power Contact Rating: 1 Ampere at 28V DC, rated for 100,000 mating cycles.
- Signal/ Dry Circuit Rating: Compatible with low-level signals from (10~50) μA at (10~50) mV for 100,000 cycles.
Contact Resistance:
- Initial Maximum per Contact: ≤ 50 milliOhms.
- Maximum After Full Life-Cycle Testing: ≤ 200 milliOhms.
Dynamic Response Times:
- Action Time (Engagement): ≤ 4 milliseconds.
- Release Time (Disengagement): ≤ 4 milliseconds.
- Actuation Pulse Width Range: (10～50) milliseconds.
Dielectric Strength:
- At Sea Level Pressure: Withstands 500 V_r.m.s. at 50Hz.
- At Simulated High Altitude (Low Pressure): Withstands 250 V_r.m.s. at 50Hz.
Insulation Resistance:
- Initial Minimum between Contacts: > 500 MegaOhms.
- Minimum After Endurance Testing: > 50 MegaOhms.
Weight: Less than 3 grams (connector assembly).
Hermetic Sealing Performance: Maximum allowable leakage rate of 1 x 10^-3 Pa·cm³/s.
Coil Electrical Specifications: Coil voltage ratings are based on a standard reference temperature of 25°C. Consult for application-specific requirements.

Application Scenarios

The J599 20KD18PN's ruggedness and reliability make it suitable for a broad spectrum of demanding military and aerospace applications:

Military Aircraft Avionics Bays: Interconnecting flight control computers, navigation systems, and mission computers within environmentally controlled bays.
Engine & Fuel System Controls: Providing reliable connections for engine monitoring sensors, fuel gauging, and control actuators in harsh, high-vibration zones.
External Stores & Pylon Interfaces: Used in connections between aircraft wings/fuselage and weapon stations, fuel tanks, or sensor pods, where quick connect/disconnect and environmental sealing are critical.
Ground Support & Test Equipment: Serving as a standard, rugged interface for test benches, power carts, and diagnostic systems that service multiple aircraft platforms.
Naval & Vehicle Electronics: Adapted for use in military ground vehicles and naval systems where resistance to shock, vibration, and environmental exposure is required.

Utilizing this standardized connector reduces logistics complexity, simplifies maintenance through commonality, and enhances system uptime by leveraging a proven, reliable interconnect solution.

Installation and Mating Procedure

Correct handling ensures the longevity and reliability of this bayonet-style military type connector.

Pre-Mating Inspection: Visually inspect the connector and its mating military Aviation Socket for damage, contamination, or bent pins. Ensure the bayonet lugs are clean and undamaged.
Alignment: Align the plug's key with the socket's keyway. For J599 series connectors, proper alignment of the coupling nut lugs is essential.
Initial Engagement: Push the connector straight into the socket until the rear faces are nearly flush.
Bayonet Locking: While holding the connector body steady, rotate the coupling nut clockwise until a distinct, positive stop and/or click is felt, indicating full engagement and lock.
Verification & Strain Relief: Gently tug on the connector to confirm secure locking. Ensure any attached cable harness is properly clamped or strain-relieved to prevent stress on the connector backshell and internal aviation connector soldering.

Certifications & Compliance

The J599 20KD18PN is designed and manufactured to meet the performance requirements inherent in military specifications, including those related to the J599 (MIL-DTL-38999) series. Our production is conducted under a stringent quality management system aligned with the principles of major international aerospace standards and army aviation quality control regulations. We are committed to providing aviation grade connectors that deliver consistent, certified performance.

Customization Options

While a standard product, the J599 20KD18PN platform can be tailored to specific program needs:

Contact Arrangement: Custom pin layouts and contact types (power, signal, high-voltage, coaxial) within the shell size 20 configuration.
Backshell & Conduit Adaptors: Various backshell styles (straight, angled) and materials (aluminum, stainless steel, composite) with different cable clamp options.
Environmental Protection: Special platings (e.g., cadmium, zinc-nickel), finishes, or conformal coatings for operation in corrosive (salt fog) or high-temperature environments.
Harness Assembly: Complete cable harness assembly services, including shielding, jacketing, and integration of other connector types, supported by detailed documentation like 5 pin aviation connector wiring diagrams for sub-assemblies.
Labeling & Identification: Custom laser marking of part numbers, serial numbers, or client logos for traceability and inventory management.

Production Process & Quality Assurance

Every J599 20KD18PN connector undergoes a rigorous, controlled manufacturing process. From certified raw materials to final inspection, quality is embedded at each stage. The process includes CNC machining of shell components, precision assembly of aviation grade terminals and inserts, automated crimping or soldering for contacts, 100% electrical testing (contact resistance, insulation resistance, dielectric withstand), and environmental sampling tests (vibration, shock, thermal cycling). This ensures each aviation connector plug meets the high-reliability standards demanded by the defense sector.

Frequently Asked Questions (FAQ)

Q: Is the J599 20KD18PN connector intermutable with other connectors in the J599 (MIL-DTL-38999) series?
A: Yes, one of the key benefits of this series is intermutable within the same shell size (size 20) and coupling type (bayonet "KD"). It is designed to mate with any compliant J599 Series III, shell size 20, bayonet socket, ensuring broad compatibility.
Q: What does the "KD" in the part number signify?
A: "KD" typically denotes a bayonet-style coupling mechanism. This provides a quick, quarter-turn connection that is highly resistant to vibration-induced loosening, making it ideal for aerospace applications.
Q: Can you supply this connector with filtered contacts for EMI suppression?
A: Absolutely. We offer filtered versions where the connector incorporates capacitor-filtered contacts to suppress electromagnetic interference (EMI), which is crucial for sensitive avionics systems.
Q: What is the typical delivery lead time for this standard connector?
A: For standard configurations, we maintain stock or short production cycles to ensure timely delivery. Lead times for customized or large-volume orders are provided upon request based on specific requirements.
Q: How does this connector's performance compare to newer, more compact connector series?
A: The J599 series is a proven, high-reliability workhorse. While newer series may offer higher density, the J599 is valued for its ruggedness, proven field history, standardization, and excellent power-handling capabilities. It remains the optimal choice for many high-vibration, high-reliability applications where field-proven performance is critical.
