Military Aviation Connector and Socket J599 Series D38999-20KF11PN: Standardized High-Reliability Interconnect

Product Overview

The Military Aviation Connector and Socket J599 Series D38999-20KF11PN is a fully compliant interconnect system manufactured to the exacting requirements of the MIL-DTL-38999 Series III specification. This connector and socket pair represents the industry standard for aviation connector with military grade quality, offering proven reliability and interoperability within military and aerospace systems. Engineered as a complete military connector for aviation use solution, it provides a robust, environmentally sealed interface for critical power and signal transmission, with the "KF" coupling style offering secure, quick-disconnect functionality ideal for applications requiring frequent mating cycles.

Product Images

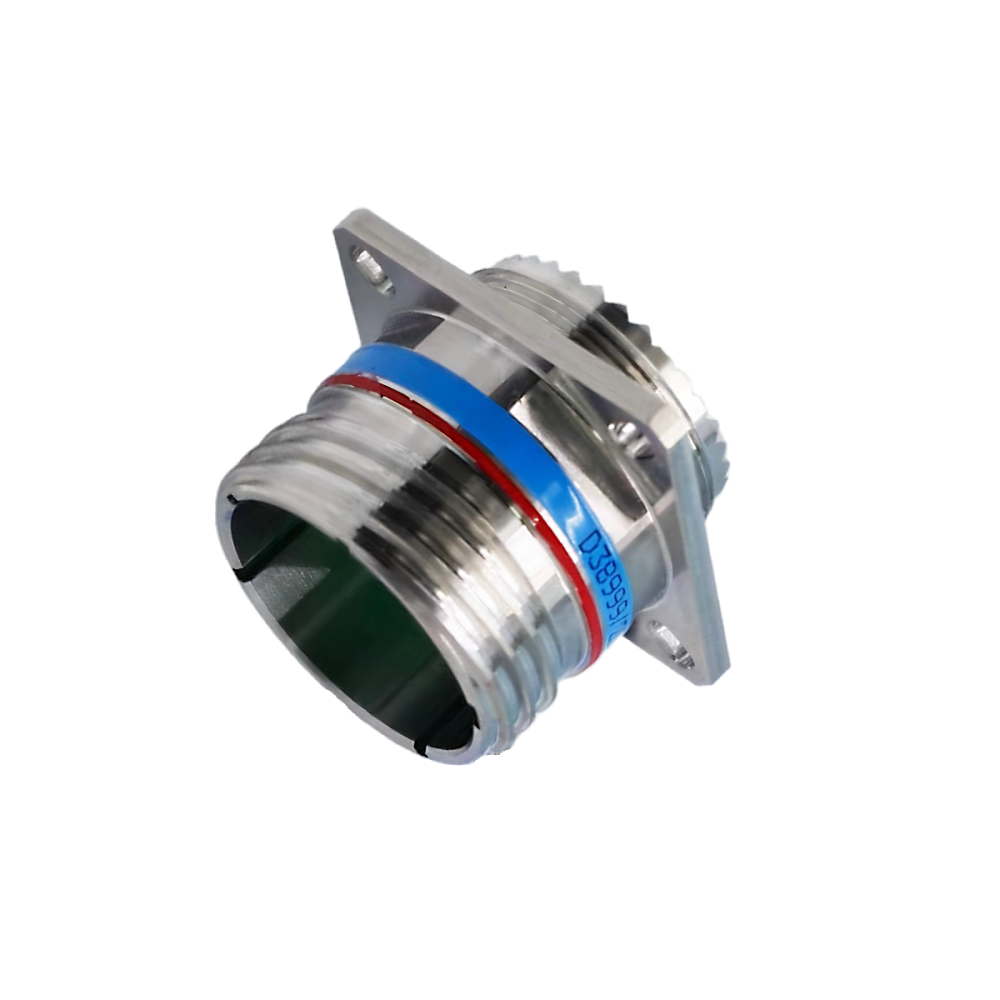

J599 Series D38999-20KF11PN Military Aviation Connector and Socket detailed view

Product Features & Advantages

The D38999-20KF11PN offers superior performance through strict adherence to military specifications and robust engineering:

Full MIL-DTL-38999 Series III Compliance: Manufactured to meet all requirements of the definitive military connector specification, ensuring guaranteed performance, interoperability, and reliability in defense applications.
Secure KF-Style Coupling: Features a quick-disconnect, bayonet-style coupling mechanism that provides vibration-resistant locking and rapid engagement/disengagement, ideal for field maintenance and modular systems.
Superior Environmental Sealing: Incorporates triple-redundant sealing (shell-to-shell, insert, and rear) meeting stringent IP68-equivalent requirements, providing exceptional protection against moisture, dust, and fluids across wide pressure ranges.
High-Reliability Contact System: Utilizes precision aviation grade terminals compliant with MIL specifications, ensuring low contact resistance, high current capacity, and extended operational life over 500+ mating cycles (exceeding the 1x10⁵ test standard).
Proven Electrical Performance: Meets or exceeds all electrical requirements of the specification, including high dielectric strength and insulation resistance, ensuring signal integrity in complex aerospace electrical connectors networks.
Standardized & Intermutable: As part of the J599 series, it is fully intermutable with other compliant connectors of the same shell size (20) and coupling type (KF), simplifying logistics and system upgrades.

This connector system is a definitive aviation type military spec connector plug, produced under stringent controls that meet and exceed the detailed requirements embedded within army aviation quality control regulations and the precise military connector specifications of MIL-DTL-38999.

Technical Specifications

The D38999-20KF11PN's performance is defined by the MIL-DTL-38999 specification and verified by rigorous testing:

Specification: MIL-DTL-38999 Series III, Shell Size 20, KF Coupling Style.
Coil Power Consumption: 0.3 to 0.43 Watts (per design).
Contact Performance (Per Specification):
- Current Rating: 1 Ampere at 28V DC minimum, tested to 100,000 cycles.
- Low-Level Circuit: Compatible with (10~50) μA at (10~50) mV signals.
Contact Resistance:
- Initial Maximum: ≤ 50 milliOhms per contact.
- Maximum After Environmental Testing: ≤ 200 milliOhms per contact.
Dynamic Response:
- Action Time: ≤ 4 milliseconds.
- Release Time: ≤ 4 milliseconds.
Dielectric Withstanding Voltage:
- At Standard Pressure: 500 V_r.m.s., 50Hz minimum.
- At Low Pressure (Altitude): 250 V_r.m.s., 50Hz minimum.
Insulation Resistance:
- Initial: > 500 MegaOhms minimum.
- After Life Test: > 50 MegaOhms minimum.
Weight: < 3 grams (typical for shell size 20).
Sealing Performance: Meets leakage rate requirement of ≤ 1 x 10^-3 Pa·cm³/s per specification.
Operational Temperature: Rated per specification, typically -65°C to +200°C depending on material class.

Application Scenarios

As a MIL-SPEC standard, this connector is ubiquitous in demanding military aerospace applications:

Military Aircraft Avionics: Standard interfaces within navigation, communication, and flight control systems across multiple aircraft platforms.
Weapon & Stores Management: Connectors for missile rails, smart weapon interfaces, and external fuel tanks on tactical aircraft.
Ground Support & Test Equipment: Universal interfaces for test sets, power carts, and diagnostic equipment servicing MIL-SPEC aircraft.
Naval & Vehicle Electronics: Used in military ground vehicles, naval systems, and portable equipment requiring rugged, sealed interconnects.
Space & Launch Systems: Qualified for use in launch vehicles and satellites where MIL-DTL-38999 reliability is required.

Utilizing this standardized connector ensures system compatibility, simplifies supply chain logistics, and leverages decades of proven field performance in the most demanding environments.

Installation and Mating Procedure (Per MIL-STD Guidance)

For reliable operation, follow standardized procedures:

Inspection & Cleaning (Per MIL-STD): Inspect the aviation connector plug and military Aviation Socket for damage. Clean per MIL-STD-1330 using approved methods and materials.
Contact Termination: Terminate contacts using tools and techniques specified in the relevant wiring standard (e.g., MIL-STD-1276). Use proper aviation connector soldering or crimping for aviation grade terminals.
Connector Assembly: Insert contacts into the designated cavities. Ensure rear inserts and seals are properly installed per the assembly drawing.
Mating Operation: Align the connector key with the socket keyway. Push together and rotate the KF coupling nut clockwise until a positive stop is achieved.
Verification: Perform electrical continuity and insulation resistance checks. Visually verify that the coupling nut is fully engaged and the visual indicator (if present) is not exposed.

Certifications & Compliance

This product is manufactured to comply with MIL-DTL-38999 Series III, and our production facility maintains a quality management system compliant with AS9100/ISO9001. We provide material certifications, certificate of compliance (C of C), and can supply test reports demonstrating compliance with the performance requirements of the specification, fully supporting the intent of army aviation quality control regulations.

Customization Options

Within the constraints of the specification, we offer the following:

Contact Arrangement: Various insert configurations with different contact sizes (16, 20, 22) and types (power, signal, coaxial, filtered) within shell size 20.
Material Class: Options per MIL-DTL-38999 for different temperature and environmental performance (e.g., Class K, R, V).
Accessories: Protective covers, mounting brackets, backshells, and conduit adapters designed for the D38999 series.
Marking & Identification: Custom part numbers, date codes, and limited custom logos per specification allowances.
Cable Assembly: Fully assembled and tested cable harnesses terminated with D38999 connectors.

Production Process & Quality Assurance

Production of the D38999-20KF11PN follows a rigorously controlled process aligned with military specifications. From certified raw materials to machining, plating, assembly, and testing, each step is documented and verified. Our QA includes dimensional inspection to gauges, 100% electrical testing (continuity, insulation resistance, dielectric), environmental testing on sample lots (vibration, shock, thermal, salt spray), and final visual inspection. This ensures every military type connector meets the exacting standards of the MIL-DTL-38999 specification for aviation grade connectors.
