Military Aviation Connector Y3A-1832ZJ10 |

High-Density Circular Connector for Signal & Power Integration

Product Overview

The YM Military Aviation Connector Y3A-1832ZJ10 is a premium high-density circular connector engineered for integrated signal and power transmission in demanding aerospace, defense, and industrial control systems. Specifically designed for seamless integration with Aviation Microswitch arrays, Military Aviation Band Switch controls, and drone power management systems, this connector provides exceptional electrical performance in a compact circular form factor. As a key component in YM's comprehensive aviation portfolio—complementing products like Aviation Temperature Sensor and Aviation Hours Timer systems—the Y3A-1832ZJ10 delivers reliable connectivity where space optimization and mixed electrical functionality are paramount.

Core Advantage: Optimal balance of high contact density, mixed signal/power capability, and robust environmental protection in a circular design, providing versatile interconnection for complex avionics and control systems.

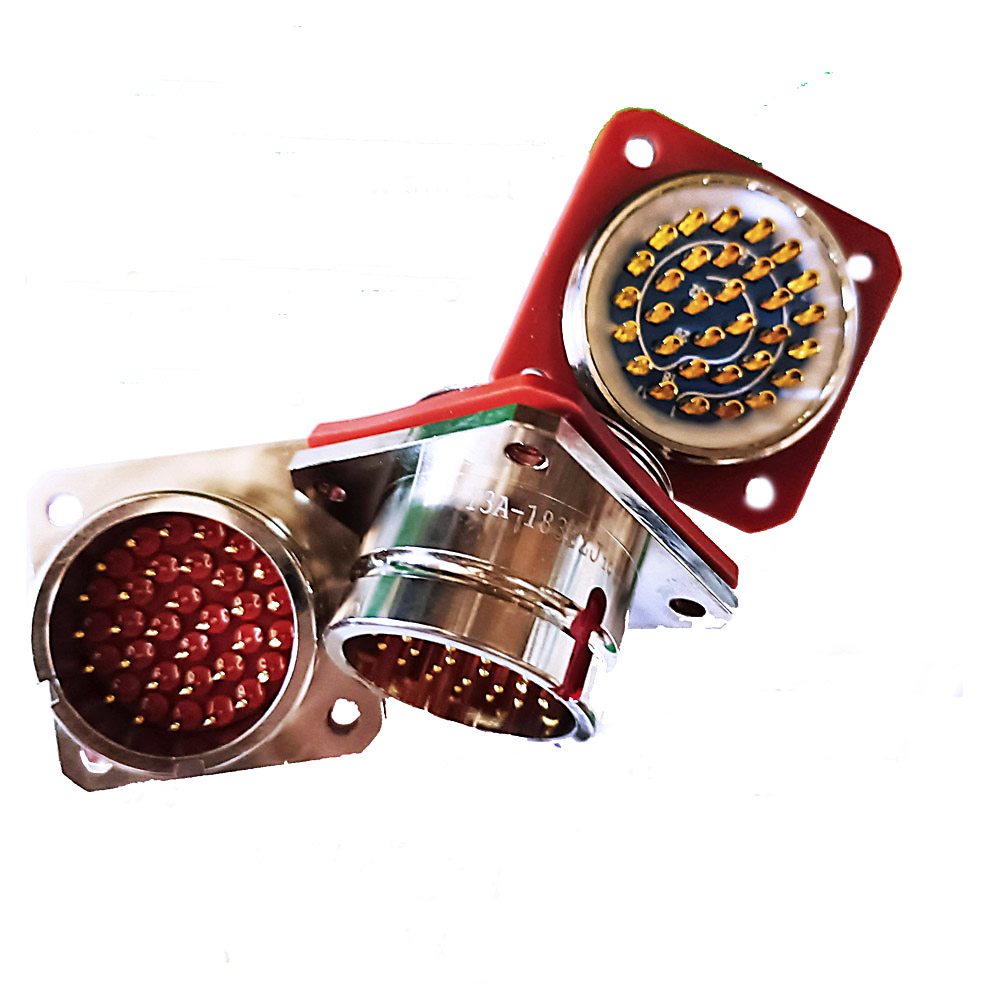

Product Images

High-resolution images showcasing the circular design, mixed contact arrangement, and precision construction of the connector system.

Technical Specifications

Model: Y3A-1832ZJ10
Connector Type: High-Density Circular, Mixed Application
Physical Characteristics:
- Shell Diameter: Optimized circular footprint for panel mounting
- Material: Aluminum alloy with MIL-spec hard coat anodizing
- Mounting: Panel mount with reinforced flange and hardware
- Weight: 30-55 grams (depending on configuration)
- Shell Protection: Corrosion-resistant per MIL-STD-810
Contact System:
- Contact Configuration: Circular arrangement with mixed size contacts
- Contact Types: Power contacts (size 16), signal contacts (size 20), coaxial options
- Contact Positions: 18-32 positions (configurable range)
- Current Rating: Power contacts: 13A, Signal contacts: 7.5A
- Contact Resistance: ≤5mΩ for power contacts, ≤10mΩ for signal contacts
- Contact Material: Copper alloy with selective gold plating
Electrical Performance:
- Voltage Rating: 600V AC/DC at sea level
- Insulation Resistance: >5,000 MΩ at 500V DC
- Dielectric Strength: 1500V RMS for 60 seconds
- EMI/RFI Shielding: >90dB effectiveness (100MHz-1GHz)
- Current Capacity: Up to 13A per power contact, 150A total capacity
- Voltage Drop: <30mV at rated current
Environmental & Mechanical:
- Ingress Protection: IP67 (submersible to 1 meter)
- Operating Temperature: -55°C to +175°C
- Sealing System: Triple-seal technology with compression design
- Vibration Resistance: 10-2000Hz, 20G (MIL-STD-1344)
- Shock Resistance: 75G, 11ms duration
- Coupling Mechanism: Bayonet with positive locking and visual indicator
- Mating Cycles: 750 cycles minimum
- Flammability: Self-extinguishing materials per UL94 V-0

Product Features & Advantages

Optimized Mixed Contact Design: Engineered for simultaneous power distribution and signal transmission, ideal for systems integrating Aviation Magnetic Valve controls with Military Aviation Encoding switch signal interfaces in compact installations.
Advanced Environmental Sealing: Triple-seal system provides superior protection against moisture and contaminants, specifically designed for integration with Aviation Oxygen Valve and Aviation Oil Sealed Valve control systems.
High-Density Circular Configuration: Maximizes contact count in circular footprint, providing space-efficient interconnection for complex systems requiring multiple Aviation Button Switch and Aviation Rocker Switch connections.
Enhanced EMI/RFI Protection: Optimized shielding with continuous 360° coverage provides excellent electromagnetic compatibility for sensitive equipment like Military Electronic Horn and Aviation Press Meter systems.
Quick-Disconnect Bayonet Mechanism: Quarter-turn coupling with positive lock ensures rapid, secure connections in high-vibration environments, featuring visual position indicators for connection status.
Thermal Management Design: Engineered for efficient heat dissipation in mixed-power applications, ensuring reliable performance when used with Aviation Temperature Sensor monitoring systems.

Our Manufacturing Advantage: YM leverages advanced manufacturing technologies developed through producing Military Aviation connector systems and Aviation Microswitch components, enabling precise fabrication of mixed-application circular connectors with enhanced performance features.

How to Integrate the Y3A-1832ZJ10 Connector

Electrical Requirements Analysis: Determine power and signal requirements for the application. This connector is ideal for systems combining Aviation Haulage Pressure Sensor power with control signal distribution.
Contact Configuration Planning: Design optimal contact mix based on specific power distribution needs and signal requirements for applications involving Aviation Swing arm Switch controls.
Panel Design and Installation Planning: Design panel layout with proper clearance for connector installation and cable management, considering the mixed wire sizes for power and signal circuits.
Precision Cable Preparation: Use appropriate crimping tools for different contact sizes. Implement proper cable organization for mixed wire bundles to ensure reliable connections.
System Integration and Validation: Connect to target systems and perform comprehensive testing including mixed signal integrity verification, power distribution testing, insulation resistance measurement, and environmental sealing validation.

Application Scenarios

The Y3A-1832ZJ10 enables reliable mixed electrical functionality in demanding aviation and industrial applications:

Aircraft Avionics Integration: Central interconnection for cockpit control systems combining Military Aviation Band Switch controls with power distribution for indicators and sensors.
Drone Power and Control Systems: Provides integrated connections for flight controllers managing both sensor networks and motor power distribution in UAV applications.
Railway Control Cabinets: Used in compact control units for door systems, passenger information displays, and sensor networks requiring mixed power and signal connections.
Industrial Control and Power Distribution: Provides space-efficient connections in control panels requiring both signal processing and moderate power distribution in harsh industrial environments.
Military Vehicle Electronics: Interfaces in armored vehicle systems combining communication equipment power with control signal distribution.
Ground Support and Test Systems: Used in portable test equipment for Aviation Copper Fuse Holder systems, Aviation Ammeter monitoring, and sensor validation applications.

Value for Buyers: Provides integrated power and signal solutions in single connector, reduces installation complexity and space requirements, offers quick-disconnect capability for maintenance efficiency, ensures reliable performance in harsh environments, and provides flexible configuration options for diverse applications.

Certifications & Compliance

Manufactured in our SGS-audited, ISO 9001:2015 and AS9100D certified facility, the Y3A-1832ZJ10 meets MIL-DTL-38999 Series III specifications for circular connectors with mixed contact configurations. Our production processes ensure full compliance with RoHS, REACH, and aerospace material requirements. We support comprehensive qualification testing and provide project-specific certifications (UL, CE, MIL-qualification) as needed, maintaining standards consistent with our production of other aviation components like Aviation Oxygen Valve and Military Aviastion Temperature Sensor systems.

Customization Options

YM provides extensive customization capabilities for the Y3A-1832ZJ10 to meet specific application requirements:

Custom Contact Configurations: Design specialized contact arrangements with specific power/signal/coaxial mixes for applications involving Aviation Microswitch arrays or complex control systems.
Mixed Power/Signal Optimization: Custom contact size mixes and arrangements for specific current distribution and signal integrity requirements.
Environmental Enhancement Packages: Additional sealing options, specialized materials, or protective coatings for specific environmental conditions beyond standard specifications.
Special Coupling Mechanisms: Custom bayonet designs, threaded couplings, or quick-disconnect mechanisms based on specific application requirements and installation constraints.
Material and Finish Options: Specialized alloys, platings, or surface treatments for specific corrosion resistance, weight, or thermal requirements.
Complete Assembly Solutions: Pre-assembled connector systems with integrated cable management and protective features for specific installation requirements.

Our proven OEM/ODM expertise with aviation components, including Aviation Button Switch and Military Aviation Encoding switch systems, enables us to provide tailored mixed-application connector solutions for your specific requirements.

Production & Quality Assurance

Every Y3A-1832ZJ10 connector undergoes rigorous manufacturing and validation processes:

Precision CNC Machining: Shells and components produced using multi-axis CNC machining with tight tolerances for reliable mating and sealing performance.
Advanced Contact Manufacturing: Mixed contacts manufactured using precision stamping and plating processes for optimal electrical performance in diverse applications.
Enhanced Surface Treatments: Specialized plating including silver plating for power contacts and gold plating for signal contacts, with MIL-spec surface preparation.
Precision Assembly Processes: Controlled assembly ensuring proper contact alignment, sealing installation, and mechanical integrity with 100% inspection.
Comprehensive Electrical Testing: Testing includes mixed signal integrity verification, power distribution testing, insulation resistance measurement, and contact resistance validation.
Environmental Validation: Sample testing for vibration, shock, salt spray, thermal cycling, and sealing performance to validate operation in demanding conditions.
Mixed Application Performance Testing: Validation of simultaneous power and signal performance under simulated operational conditions.

This comprehensive quality assurance program ensures connectors meet the stringent standards required for integration with other precision aviation components like Aviation Hours Timer and Aviation Haulage Pressure Sensor systems, delivering reliable performance in mixed-application scenarios.
