Military Aviation Connector J599 Series 20WE35PN

Compact High-Reliability Interconnect Solution

Product Overview

The Military Aviation Connector J599 Series 20WE35PN is a precision-engineered component designed for space-constrained, high-reliability military and aerospace applications. As part of the esteemed J599 family, this connector delivers true aviation connector with military grade quality in a compact shell size 20 configuration. Engineered for environments where both performance and size are critical, it serves as a dependable military connector for aviation use, offering robust sealing, electrical integrity, and mechanical durability. Its design is optimized for applications requiring reliable interconnections where larger connectors are not feasible, without compromising on the stringent requirements of military specifications.

Product Images

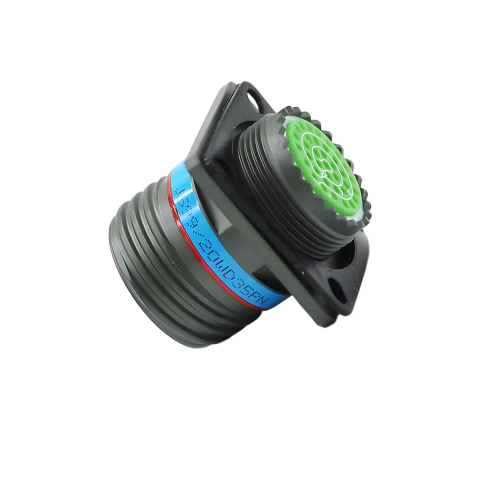

Military Aviation Connector J599 Series 20WE35PN detailed technical view

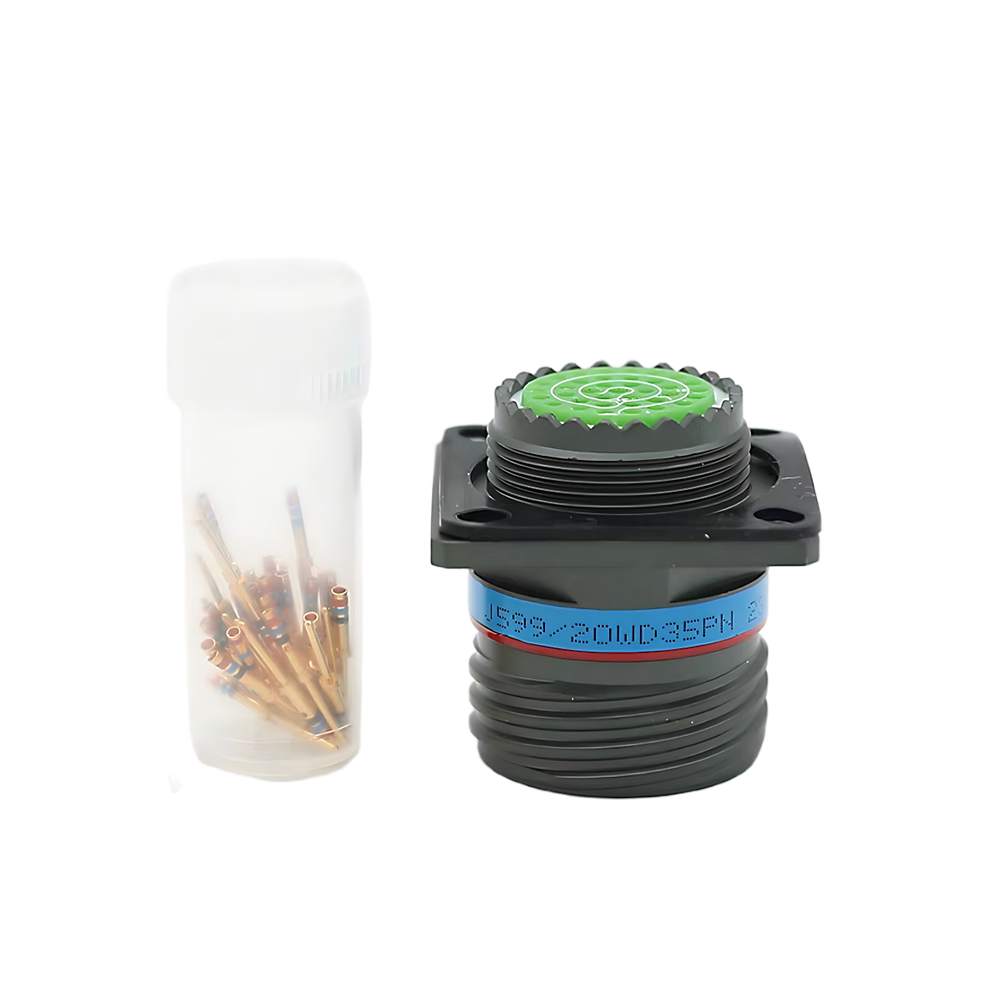

Side and coupling view of J599 Series 20WE35PN connector

Product Features & Advantages

The J599 20WE35PN offers distinct advantages through its specialized compact design and robust construction:

Compact, High-Density Design: Shell size 20 provides a smaller footprint ideal for space-limited installations in advanced avionics, drones, and portable military equipment, where using larger connectors is impractical.
Reliable WE Coupling System: Features a secure coupling mechanism designed for positive locking and vibration resistance, ensuring connection integrity in dynamic environments—a key feature of this aviation type military spec connector plug.
Exceptional Environmental Sealing: Incorporates advanced sealing technology that provides high levels of protection against moisture, dust, and fluids, maintaining performance from ground level to high-altitude conditions.
High-Performance Contact System: Utilizes precision aviation grade terminals with optimized plating to ensure low contact resistance and reliable signal/power transmission over an extended lifecycle of 100,000 mating cycles.
Superior Electrical Characteristics: Offers excellent dielectric strength and high insulation resistance, ensuring signal integrity and preventing electrical leakage in sensitive aerospace electrical connectors systems, far exceeding general aviation plugs.
Lightweight & Rugged Construction: Engineered with high-strength, lightweight materials, achieving a total weight under 3 grams while maintaining the durability required for a military aviation plug in demanding applications.

Manufactured under strict adherence to army aviation quality control regulations, this connector meets exacting military connector specifications for performance in compact form factors.

Technical Specifications

The performance of the J599 20WE35PN is defined by precise engineering parameters:

Series & Configuration: J599 Series, Shell Size 20, WE Coupling Style.
Coil Power Consumption: 0.3 to 0.43 Watts.
Contact Performance & Durability:
- Standard Load Rating: 1 Ampere at 28V DC, minimum 100,000 cycles.
- Low-Level Signal Compatibility: (10~50) μA at (10~50) mV for 100,000 cycles.
Contact Resistance:
- Initial Maximum: ≤ 50 milliOhms per contact.
- Maximum After Life Testing: ≤ 200 milliOhms per contact.
Dynamic Response Times:
- Action Time: ≤ 4 milliseconds.
- Release Time: ≤ 4 milliseconds.
- Actuation Pulse Width: Adjustable from 10 to 50 milliseconds.
Dielectric Withstanding Voltage:
- Standard Atmospheric Conditions: 500 V_r.m.s., 50Hz.
- Low Pressure Conditions: 250 V_r.m.s., 50Hz.
Insulation Resistance:
- Initial: > 500 MegaOhms.
- After Environmental Stress: > 50 MegaOhms.
Weight: < 3 grams (complete connector assembly).
Hermetic Sealing Performance: Maximum leakage rate ≤ 1 x 10^-3 Pa·cm³/s.
Electrical Coil Specifications: All electrical ratings referenced at 25°C standard temperature.

Application Scenarios

The compact size and high reliability of the J599 20WE35PN make it ideal for demanding applications where space is at a premium:

Miniaturized Avionics Modules: Interconnections within compact flight control computers, navigation units, and communication systems in modern military aircraft and UAVs.
Portable Military Electronics: Connectors for man-portable radios, handheld targeting systems, and field-deployable sensor packages.
Internal Aircraft Sensor Networks: Connections for distributed temperature, pressure, and vibration sensors in tight spaces within airframes and engines.
Weapon Guidance & Control Units: Compact interfaces within missile guidance sections, smart munition control units, and targeting pod electronics.
Ground Support Test Points: Dense interconnection points within portable test equipment and diagnostic devices for field maintenance of military systems.

Implementing this compact connector enables more efficient use of space, reduces overall system weight, and maintains high reliability in size-constrained military applications.

Installation and Mating Procedure

Proper installation is crucial for the performance of this compact military type connector:

Pre-Installation Planning: Verify clearances and ensure proper alignment can be achieved in the confined space. Review the mating interface with the military Aviation Socket.
Harness Preparation: Use precision aviation connector soldering or certified crimping tools for the small aviation grade terminals. Carefully follow the pinout diagram.
Connector Assembly: Gently insert the terminated contacts into the correct cavities of the aviation connector plug, ensuring each is fully seated and latched.
Mating Operation: Align the connector key with the socket keyway. Carefully insert and engage the WE coupling mechanism until a positive lock is achieved (typically indicated by a click or firm stop).
Verification & Testing: Visually confirm full engagement. Perform continuity and insulation resistance tests. Ensure the cable has adequate strain relief to prevent stress on the compact connector body.

Certifications & Compliance

The J599 20WE35PN is designed and manufactured to meet the performance requirements of relevant military specifications, including those associated with the J599 series. Our production processes are governed by a quality management system aligned with international aerospace standards and the principles of army aviation quality control regulations, ensuring consistent quality and performance in every connector.

Customization Options

We offer tailored solutions for the J599 20WE35PN platform to meet specific application requirements:

Contact Configuration: Custom pin layouts and contact types (signal, power, filtered) within the shell size 20 constraints. Options for mixed configurations.
Material & Finish Options: Special shell platings, colored identification rings, and alternative elastomer compounds for specific environmental resistance.
Backshell & Cable Exit Options: Various compact backshell designs, right-angle configurations, and miniature strain relief solutions.
Complete Cable Assemblies: Custom micro-miniature cable harnesses with precise lengths, specialized jacketing, and integration with other connector types.
Identification & Documentation: Micro-laser marking, custom part numbering, and provision of detailed technical documentation including installation guides.

Production Process & Quality Assurance

Every J599 20WE35PN connector undergoes meticulous manufacturing and testing processes. From precision machining of the compact shell components to the automated assembly of miniature aviation grade terminals, each step is carefully controlled. Our comprehensive quality assurance includes 100% electrical testing (contact resistance, insulation resistance, dielectric strength), microscopic inspection of critical features, and environmental testing on production samples. This ensures each compact military aviation plug meets the high-reliability standards expected of aviation grade connectors in demanding applications.

Frequently Asked Questions (FAQ)

Q: What are the main differences between shell size 20 and larger shell sizes in the J599 series?
A: Shell size 20 is significantly smaller than sizes like 26 or 32, allowing for installation in space-constrained areas. While it typically supports fewer contacts than larger shells, it maintains the same performance standards for environmental sealing, vibration resistance, and electrical characteristics as defined by military connector specifications.
Q: Is the WE coupling style suitable for high-vibration environments?
A: Yes, the WE coupling mechanism is specifically engineered to maintain a secure connection in high-vibration environments. Its design typically includes features that prevent inadvertent decoupling under mechanical stress.
Q: Can this compact connector handle the same environmental conditions as larger military connectors?
A: Absolutely. Despite its smaller size, the J599 20WE35PN is designed and tested to meet the same rigorous environmental standards (temperature, humidity, fluid resistance, sealing) as larger J599 series connectors, in compliance with army aviation quality control regulations.
Q: What is the maximum number of contacts available in shell size 20?
A: The maximum number of contacts varies by contact size and arrangement. We offer various configurations with different contact densities. Please consult with our engineering team for specific contact layout options to meet your circuit requirements.
Q: Are special tools required for assembling and servicing this compact connector?
A: Yes, due to the smaller scale, specialized insertion/removal tools and possibly magnification are recommended for contact handling during assembly and field service to ensure proper installation and prevent damage to the miniature components.
