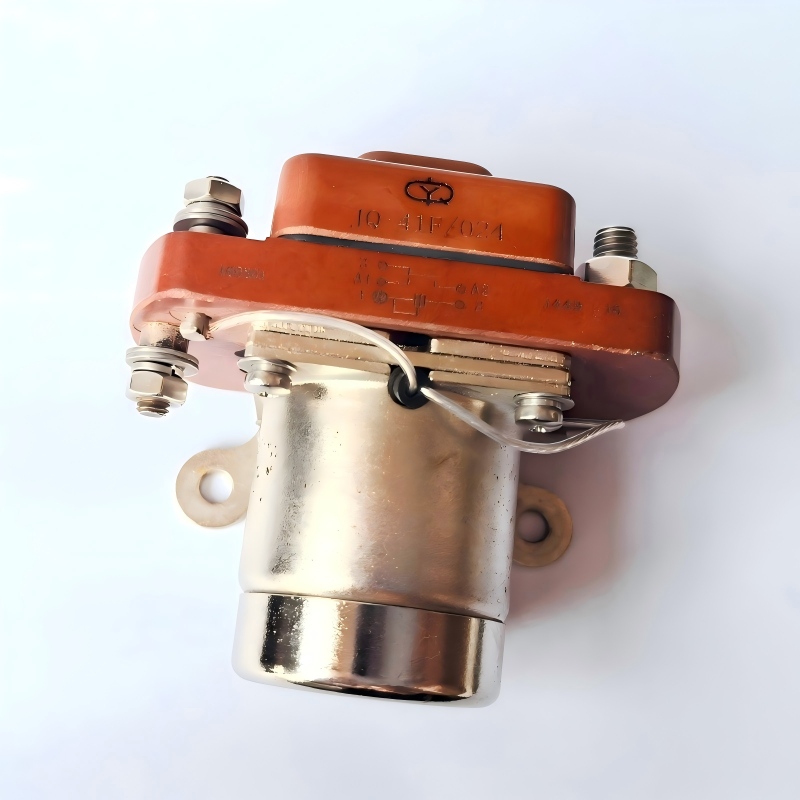

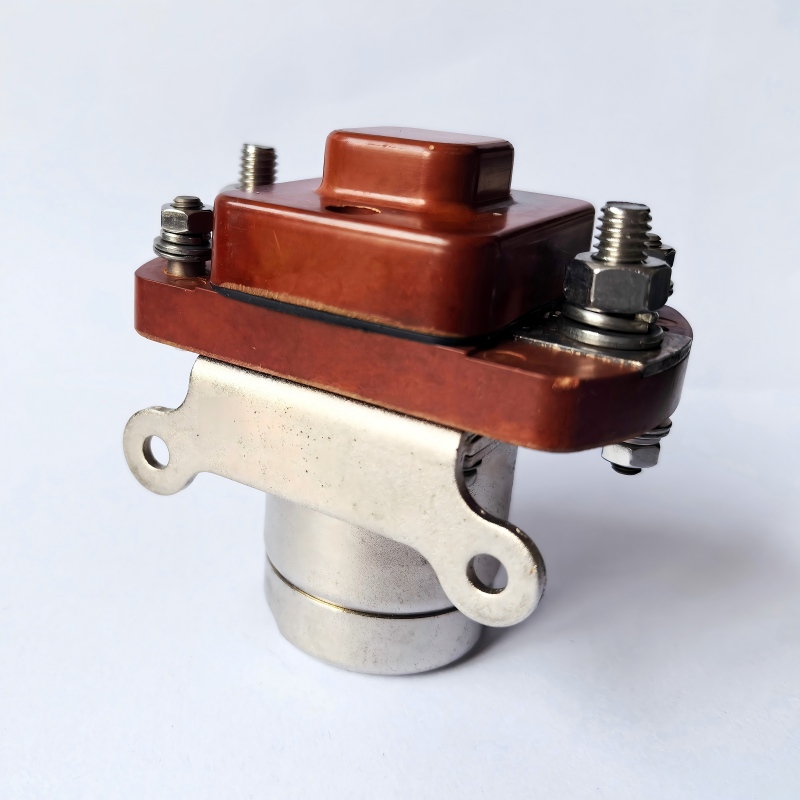

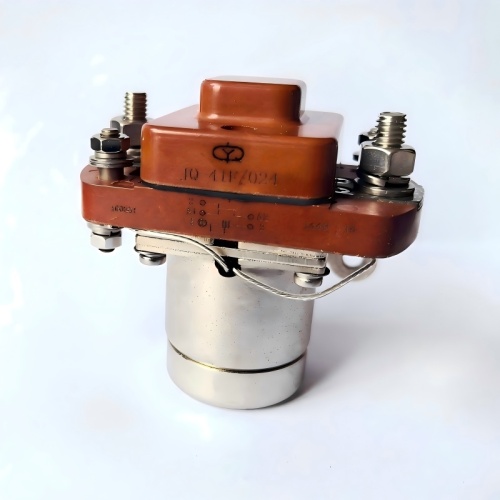

Aviation Contactor JQ-41F 024

Model No.: JQ-41F 024

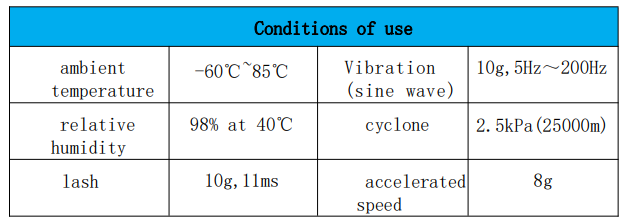

Ambient Temperature: -60℃~85℃

Vibration (sine Wave): 10g,5Hz～200Hz

Relativehumidity: 98% at 40℃

Cyclone: 2.5kPa(25000m)

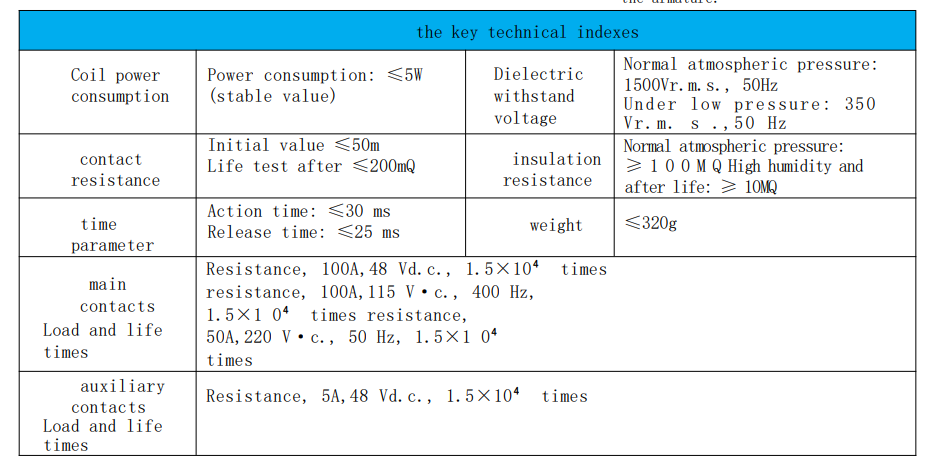

Coil Powerconsumption: Power consumption: ≤5W(stable value)

Dielectricwithstandvoltage: Normal atmospheric pressure:1500Vr.m.s., 50Hz Under low pressure: 350Vr.m. s .,50 Hz

Contact Resistance: Initial value ≤50m Life test after ≤200mQ insulation resistance Normal atmospheric pressure: ≥ 1 0 0 M Q High humidity and after life: ≥ 10MQ time parameter Action time: ≤30 ms Release time: ≤25 ms weight ≤320g main contacts Load and life times Resistance,

Insulationresistance: ≥ 1 0 0 M Q

Time Parameter: Action time: ≤30 msRelease time: ≤25 ms

Weight: ≤320g
