Product Attributes

Model No.: JQ-52F

Brand: YM

Ambient Temperature: -55℃~85℃

Sinusoidalvibration: 10g,5Hz~2000Hz

Random Vibration: 0.07g²/Hz,15Hz～2000Hz

Cyclone: 4.0kPa(22000m)

Coil Powerconsumption: Line coil power consumption:≤4.9W (stable value)

Dielectricwithstandvoltage: Normal atmospheric pressure:500 Vr.m.s., 50 Hz Under low pressure: 350Vr.m. s .,50 Hz

Contact Drop: Initial value ≤120mV Life test less than 180mV

Insulationresistance: ≥ 1 0 0 M Q

Time Parameter: Action time: ≤25 msRelease time: ≤20 ms

Weight: ≤420g

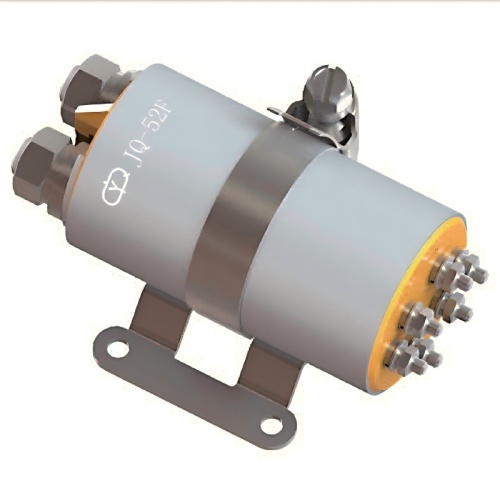

Military Aviation Contactor JQ-52F:

Universal Replacement for 2535 ECE & S309 LEACH Components

YM introduces the JQ-52F Military Aviation Contactor, a versatile, high-performance replacement engineered to seamlessly substitute multiple legacy contactors including 2535 ECE and S309 LEACH models. This multi-compatible component delivers reliable power switching for drone propulsion systems, aircraft engines, and critical circuits across aviation, rail, and aerospace applications. Manufactured with the same rigorous standards as our Military Metal Relay and High Power Aviation Contactor series, the JQ-52F offers a universal solution for modernizing aging systems while maintaining uncompromised performance.

Product Visualization

YM Advanced Manufacturing Facility and Quality Control Process

Engineering Features & Multi-System Compatibility

The JQ-52F represents a significant advancement in replacement technology, designed to address common legacy system requirements while incorporating modern engineering principles from our Solid State Relay and Hydraulic Circuit Breaker development programs.

Multi-Model Compatibility: Engineered as a universal replacement for both 2535 ECE and S309 LEACH contactor series, simplifying inventory management and reducing procurement complexity for maintenance organizations.
Enhanced Contact Performance: Features ultra-low initial contact resistance (≤50mΩ) for maximum power efficiency and minimal voltage drop. Maintains reliable performance throughout extended service (≤200mΩ post-test), meeting the high standards of our PCB Board Relay products.
High-Speed Precision Switching: Delivers rapid action time (≤3ms) and release time (≤4ms), providing critical timing accuracy for flight control systems, automated sequences, and sensitive avionics controls.
Military-Grade Hermetic Sealing: Advanced sealed enclosure with maximum leakage rate of ≤10⁻¹ Pa·cm³/s offers superior protection against moisture ingress, dust, chemical exposure, and pressure differentials, utilizing technology proven in our Aviation Oil Sealed Valves.
Extended Operational Lifespan: Rated for 1,000,000 cycles at full rated load (1A, 28V DC), significantly extending maintenance intervals and reducing total lifecycle costs for mission-critical systems.
Optimized Weight & Power Efficiency: Weighing less than 3 grams with low coil power consumption (0.3-0.43W), ideal for weight-sensitive aerospace applications where thermal management and power budgets are critical considerations.
Robust Electrical Isolation: High dielectric strength (500Vrms at normal pressure) and excellent insulation resistance (>500MΩ) ensure safe, reliable operation in complex electrical environments, compatible with sensitive devices like Aviation Temperature Sensors.
Broad Temperature & Environmental Tolerance: Engineered to maintain consistent performance across extended temperature ranges and varying atmospheric conditions typical of aerospace operational environments.

Complete Technical Specifications

Electrical Performance Parameters

Coil Power Consumption: 0.3 to 0.43 Watts
Contact Rating & Mechanical Endurance:
- Standard Resistive Load: 1 Ampere at 28 Volts DC for 1,000,000 operations
- Low-Level Signal Load: (10-50) microamperes at (10-50) millivolts for 1,000,000 operations
Contact Resistance Specifications:
- Maximum Initial Value: 50 milliohms (mΩ)
- Maximum Value After Life Testing: 200 milliohms (mΩ)
Dynamic Timing Characteristics:
- Operate (Action) Time: ≤ 3 milliseconds
- Release (Drop-out) Time: ≤ 4 milliseconds
- Minimum Coil Excitation Pulse Width: 10 to 50 milliseconds

Environmental, Safety & Physical Specifications

Dielectric Withstanding Voltage:
- At Standard Atmospheric Pressure: 500 Volts RMS, 50Hz
- Under Low-Pressure Conditions: 250 Volts RMS, 50Hz
Insulation Resistance:
- Initial Measurement: > 500 Megohms (MΩ)
- After High-Level Endurance Testing: > 50 Megohms (MΩ)
Mass: Less than 3 grams
Seal Integrity (Hermeticity): Maximum allowable leakage rate: 1 × 10⁻¹ Pa·cm³/s
Coil Voltage Options (DC): Available in standard aviation DC voltages. Contact for specific voltage requirements or integration with custom Military Aviation Connector solutions. All specifications referenced at 25°C (77°F).

Primary Applications & Replacement Scenarios

The JQ-52F serves as a critical Aviation Contactor for Aircraft maintenance and system upgrades across multiple industries, offering unique compatibility advantages.

Legacy Aircraft System Modernization: Direct replacement for both 2535 ECE and S309 LEACH contactors in power distribution panels, fuel management systems, landing gear controls, environmental systems, and auxiliary power circuits across diverse military and commercial aviation fleets.
Unmanned Aerial Systems (UAS/Drones): Essential for motor controller enable/disable functions, payload power management (sensor systems, communication payloads), battery bus switching, and system safety interlocks in advanced commercial and defense drone platforms.
Rail & Ground Transportation Systems: Integration into locomotive control systems, railway signaling equipment, and ground support vehicles where high vibration resistance, extended operational life, and multi-system compatibility simplify maintenance logistics.
Industrial Automation & Control: Deployment in harsh-environment control panels, renewable energy systems, and automated manufacturing equipment, often working alongside Military Pressure Sensors and Industrial Power Relays for comprehensive control solutions.
Aerospace Test & Qualification Equipment: Provides reliable load switching in test benches, environmental chambers, and qualification systems for Aerospace Components, including Aviation Haulage Pressure Sensors and Military Electronic Horns.
Defense & Military Platform Sustainment: Critical for maintaining operational readiness of legacy military systems that utilize either 2535 ECE or S309 LEACH contactors in communication systems, vehicle electronics, and specialized defense equipment.

Step-by-Step Replacement Protocol

System Identification & Verification: Confirm the existing component is either 2535 ECE or S309 LEACH series. Document the specific model and system configuration before proceeding with replacement.
Safety Preparation & System Shutdown: Execute complete system power-down, implement proper electrical isolation, and follow all applicable safety procedures including lock-out/tag-out (LOTO) protocols for the specific platform.
Legacy Component Removal: Clearly document or photograph the existing wiring configuration. Carefully disconnect all wires from the old contactor terminals. Remove mounting hardware and extract the unit without damaging surrounding components or wiring.
JQ-52F Installation: Position the new JQ-52F contactor in the identical mounting location. Secure firmly using appropriate hardware, ensuring proper alignment and no mechanical stress on the housing or terminals.
Electrical Reconnection: Reconnect all wires to their corresponding terminals on the JQ-52F as per documentation. For systems utilizing complex control logic with PCB Signal Relays, verify signal compatibility and retest timing parameters if necessary.
Pre-Operational Verification & Testing: Before applying main power, conduct thorough visual inspection for proper installation. Use a multimeter to verify proper continuity and insulation resistance. Momentarily energize the coil to confirm positive mechanical actuation.
System Commissioning & Performance Validation: Restore system power gradually according to platform-specific procedures. Initiate phased testing: begin with no-load checks, progress to low-power functional tests, and conclude with full operational testing under monitored conditions to validate all performance parameters.

Strategic Procurement & Operational Benefits

Sourcing the JQ-52F from YM delivers exceptional value through simplified logistics, enhanced reliability, and comprehensive technical support.

Inventory Consolidation & Simplification: Replaces two common legacy part numbers with a single, high-quality component, reducing inventory complexity, minimizing storage requirements, and streamlining maintenance procedures.
Enhanced Supply Chain Resilience: Provides a reliable, manufacturer-direct source for obsolete components, mitigating supply chain disruption risks and ensuring operational continuity for diverse legacy systems.
Reduced Total Cost of Ownership: Extended service life, reduced maintenance frequency, and simplified inventory management directly lower long-term operational expenses and improve maintenance efficiency.
Performance Enhancement through Modern Engineering: While maintaining perfect mechanical and electrical compatibility, the JQ-52F incorporates contemporary materials and manufacturing advancements that often deliver improved performance characteristics over aging original components.
Technical Partnership & Cross-Platform Expertise: Access to YM's extensive experience across multiple product lines including New Energy Relays, Automotive Relays, and Aviation Microswitches provides comprehensive application support for diverse integration scenarios.
Quality Assurance & Certification Support: Full manufacturing traceability, comprehensive testing documentation, and rigorous quality control procedures provide confidence in component performance and support certification requirements for regulated industries.
Future-Proofing Legacy Systems: Provides a reliable, sustainable solution for maintaining operational capability of aging systems while offering potential performance benefits and extended service life.
