High-Performance Power Switching for Demanding Aerospace Systems

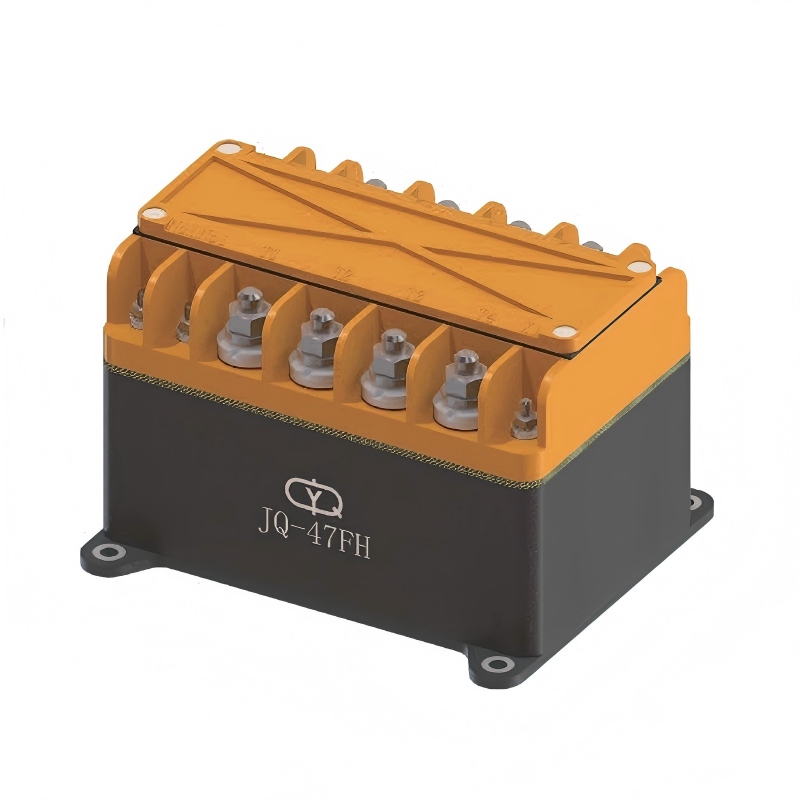

The JQ-47FH Military Aviation Contactor is a premium-grade, high-reliability electromechanical switch engineered for mission-critical power distribution in advanced aerospace applications. As a flagship product in YM's Military Aviation Contactor series, it is designed to deliver uncompromising performance and durability for drone propulsion systems, aircraft engine controls, and next-generation avionics.
Manufactured to the exacting standards synonymous with our Military Metal Relays and High Power Aviation Contactors, the JQ-47FH incorporates advanced sealing technologies and robust construction to ensure fail-safe operation under extreme environmental stresses, including high vibration, shock, and wide temperature fluctuations[citation:2][citation:10].

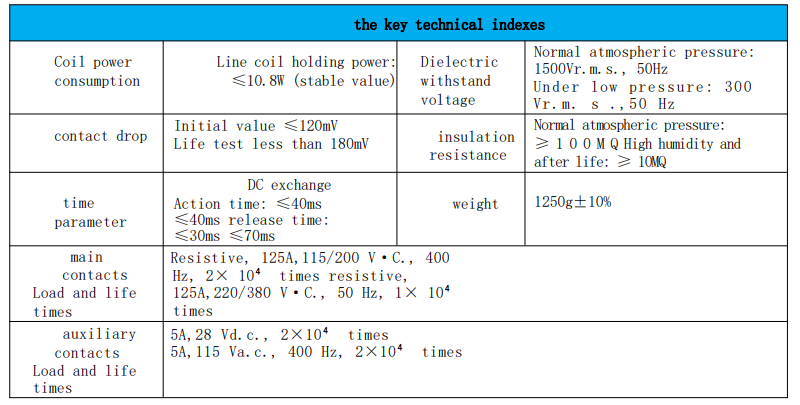

Technical Specifications
Electrical Performance
- Coil Power Consumption: 0.3W - 0.43W (Low Energy Drive)
- Contact Load Rating & Life:
- Resistive Load: 1A at 28V DC for 100,000 cycles minimum
- Low-Level Signal: 10-50μA at 10-50mV for 100,000 cycles
- Contact Resistance:
- Initial: ≤ 50mΩ
- After Life Test: ≤ 200mΩ
- Switching Speed:
- Action Time: ≤ 4ms
- Release Time: ≤ 4ms
- Minimum Pulse Width: 10-50ms

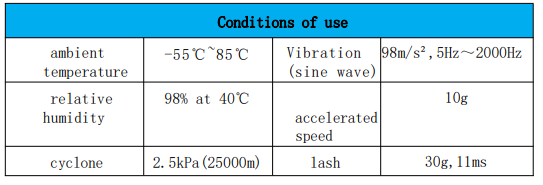

Environmental & Mechanical
- Dielectric Strength:
- At Sea Level: 500V RMS, 50Hz
- At Low Pressure (High Altitude): 250V RMS, 50Hz
- Insulation Resistance:
- Initial: > 500 MΩ
- After Life Test: > 50 MΩ
- Weight: < 3 grams
- Hermetic Sealing: Leakage rate ≤ 1×10⁻³ Pa·cm³/s
- Reference Temperature: Specifications referenced at 25°C[citation:1]
Key Features & Advantages
- Extreme Environment Rated: Engineered for reliable performance across a broad operating temperature range, capable of withstanding conditions from very low to elevated temperatures[citation:5][citation:9].
- Superior Sealed Construction: Features a sealed housing that provides robust protection against moisture, dust, and contaminants, ensuring long-term reliability in harsh aerospace environments[citation:2][citation:10].
- High Vibration & Shock Resistance: Built to endure the rigorous vibration and shock profiles encountered in aviation, with performance benchmarks aligned with military aerospace standards[citation:2][citation:10].
- Dual-Purpose Contact Design: Versatile contacts reliably switch both standard 1A/28VDC loads and sensitive low-level (μA/mV) signals, reducing component count in complex systems.
- Long Operational Life: Minimum 100,000-cycle rating ensures longevity, reducing maintenance frequency and total cost of ownership for critical systems.
- Optimized for Safety: High dielectric strength and insulation resistance minimize risks of arc-over and leakage current, which is critical for safety in aviation systems[citation:3][citation:7].

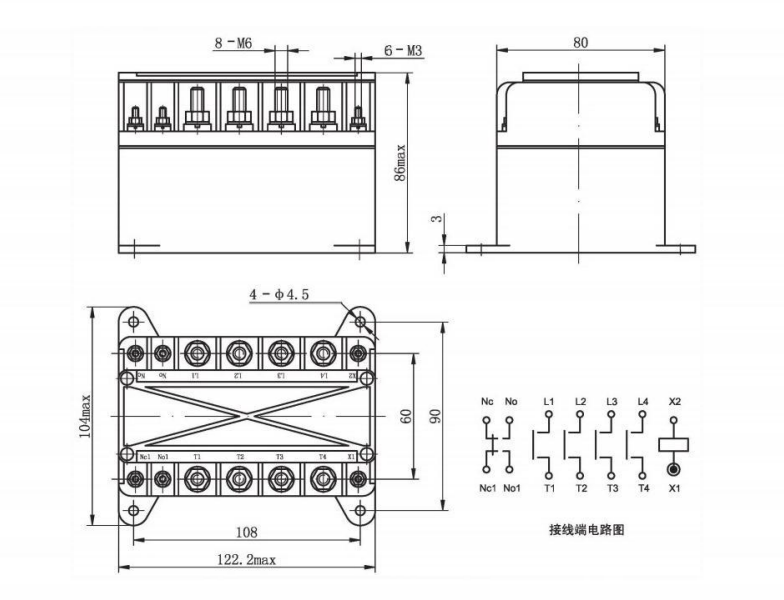

Recommended Installation Procedure
- Pre-Installation Verification: Confirm system voltage (28V DC) and load current (≤1A) match contactor ratings. Inspect the unit for any transit damage.
- Mechanical Mounting: Securely mount the contactor using appropriate hardware. Ensure the installation location is clean, dry, and within the specified temperature range.
- Electrical Connections:
- Coil Connections: Connect the control wires to the coil terminals, observing correct polarity.
- Load Connections: Connect power and load wires to the main contact terminals. For low-level signal switching, use shielded cables and proper grounding techniques to prevent noise, similar to best practices for Aviation Temperature Sensors.
- System Integration Check: Verify all connections are tight and the contactor is integrated correctly with other system components, such as Hydraulic Circuit Breakers or Military Aviation Connectors.
- Functional & Safety Testing: Before final system power-up, perform insulation resistance and functional switching tests to ensure proper operation.
Application Scenarios
The JQ-47FH is designed for high-reliability switching in demanding applications:
- Electric & Hybrid-Electric Aircraft: Battery management system (BMS) isolation, main power bus switching, and motor controller power routing.
- Unmanned Aerial Vehicles (UAVs): Critical power distribution for flight controls, payload actuators, and communication systems.
- Manned Aircraft Systems: Fuel pump control, anti-ice system switching, and auxiliary power unit (APU) management.
- Ground Support Equipment: Reliable power control in test benches, maintenance tools, and ground power units.
- Advanced Avionics: Integration into custom Military Aviation Encoding Switch panels and redundant power supply networks.
Value for Procurement Teams: The JQ-47FH mitigates supply chain risk by offering a high-quality, performance-guaranteed alternative. Its durability and long life directly translate to lower lifecycle costs, reduced unscheduled maintenance, and increased aircraft availability.
Quality Assurance & Compliance
Every JQ-47FH is produced under a stringent quality management system. While specific certifications can be tailored to program needs, our manufacturing and testing protocols are designed to meet the core principles of major international and aerospace standards:
- Adherence to performance and testing criteria relevant to military and Aerospace Components[citation:2][citation:7].
- Implementation of comprehensive material traceability and process control.
- RoHS compliance is standard; other specific certifications (e.g., for particular project qualifications) are available upon request.
Customization & Support Services
We understand that standard solutions may not fit every unique application. YM offers flexible engineering support:
- Electrical Tailoring: Custom coil voltages or specific contact materials for unique load profiles.
- Mechanical & Interface Adaptations: Modified mounting configurations, custom lead lengths, or integration with specific Military aircraft Plug systems.
- Testing & Validation: Additional product screening, environmental stress testing, or provision of custom test reports.
- Labeling & Packaging: Customer-specific part numbering, labeling, or specialized ESD-safe packaging.
Production & Quality Process
Quality and reliability are built into the JQ-47FH through a controlled, multi-stage process:
- Design & Validation: Application-specific design considerations, including contact resistance optimization and arc suppression techniques, are validated through simulation and prototyping[citation:7].
- Precision Manufacturing: Automated assembly in controlled environments ensures consistency for critical components like the coil and contact assembly.
- Hermetic Sealing: Advanced sealing processes are applied, followed by mandatory leak testing to verify the specified leakage rate.
- 100% Electrical Testing: Every unit undergoes final testing for contact resistance, operate/release time, coil parameters, and dielectric strength.
- Lot Sampling & Audit: Random units from each production batch undergo extended life-cycle and environmental stress testing to validate long-term performance.
Frequently Asked Questions (FAQ)
Q1: What is the primary advantage of the JQ-47FH's sealed construction?
A1: The sealed housing provides complete protection against environmental contaminants like moisture, dust, and fuel vapors. This is critical for maintaining electrical integrity and preventing corrosion over the product's long service life in unpredictable aerospace conditions, similar to the protection required for Aviation Oil Sealed Valves[citation:2][citation:10].
Q2: How does the low-level signal switching capability benefit my system design?
A2: This feature allows the same contactor to be used for both power switching (e.g., turning on a pump) and signal routing (e.g., engaging a sensor circuit). This simplifies system architecture, reduces part count, and increases overall reliability, offering a design flexibility often found in advanced PCB Signal Relays but in a more robust, aerospace-grade package.
Q3: Can the JQ-47FH handle the vibration found in engine-mounted applications?
A3: Yes. The contactor is designed with mechanical robustness to perform reliably under significant vibration and shock, which are key considerations in military and aerospace component specifications[citation:2][citation:10]. This makes it suitable for mounting near engines or other high-vibration areas.
Q4: What is meant by "dielectric strength" at low pressure, and why is it important?
A4: Dielectric strength is the maximum voltage the insulation can withstand without breaking down. At high altitudes, lower air pressure reduces insulation performance. The JQ-47FH is tested to maintain a safety margin (250V RMS) under these conditions, ensuring safe operation throughout an aircraft's flight envelope.
Q5: Do you provide technical data to support our component qualification process?
A5: Absolutely. We can provide detailed test reports, material certifications, and full specification data sheets. Our engineering team is also available to consult on integration challenges specific to your application.
