PW20-7Pins Aviation Connector: High-Reliability Electrical Interface for Critical Systems

Product Overview

The PW20-7Pins Aviation Connector is engineered for mission-critical electrical interconnections where failure is not an option. As a core component in YM's extensive range of Military Aviation Connector systems, this connector provides a robust, sealed interface designed to withstand extreme environmental conditions in aerospace, defense, and high-reliability industrial applications. Its 7-pin configuration offers versatile signal and power transmission capabilities, making it an ideal choice for linking critical subsystems like Aviation Pressure Sensors, Military Electronic Horns, and flight control instrumentation.

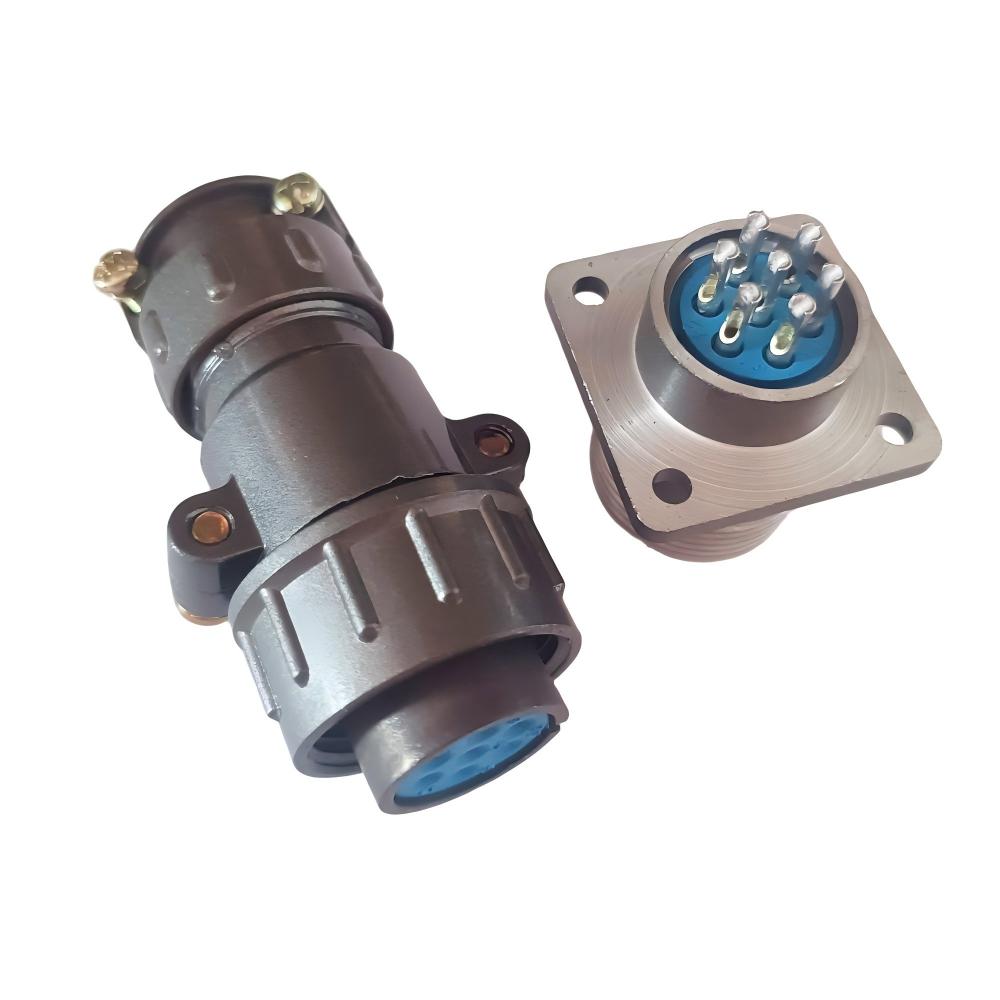

PW20-7Pins Aviation Connector front and side view

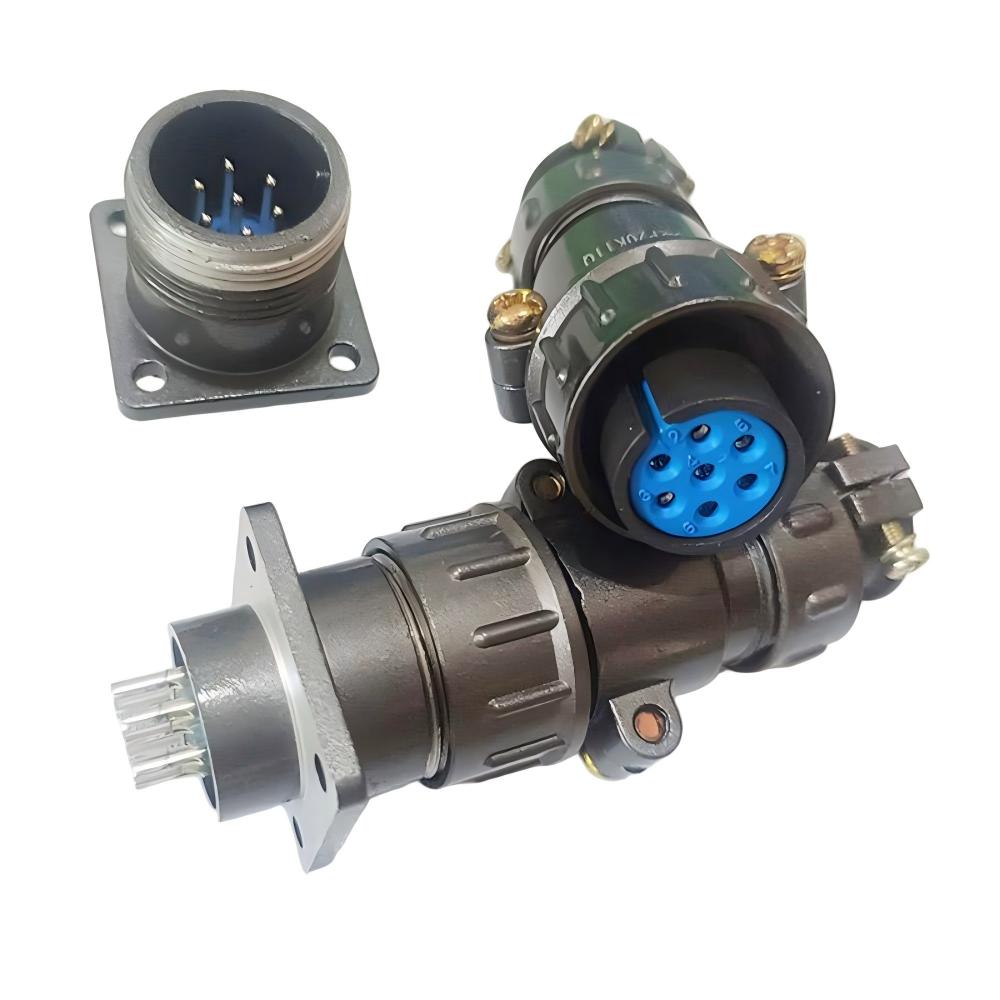

PW20-7Pins Aviation Connector detailed pin and socket view

Technical Specifications

Model: PW20-7Pins Aviation Connector
Contact Configuration: 7 pins
Contact Material: High-reliability alloy with precious metal plating for optimal conductivity and corrosion resistance.
Current Rating per Contact: [To be specified based on design, e.g., 5A/13A]
Voltage Rating: [To be specified, e.g., 250V AC/DC]
Insulation Resistance: >1000 MΩ (minimum at standard conditions).
Dielectric Withstanding Voltage: 1500V AC RMS (sea level conditions).
Operating Temperature Range: -55°C to +125°C (or higher, as qualified).
Sealing Level: IP67/IP68 or hermetic sealing options available to prevent ingress of moisture, dust, and fluids.
Vibration & Shock Resistance: Meets or exceeds MIL-STD-810 standards for harsh environments.
Shell Material: Corrosion-resistant aluminum alloy or stainless steel with protective finish.
Coupling Mechanism: Secure bayonet or threaded coupling for vibration-proof mating.
Compatibility: Designed for integration with systems utilizing Aviation Temperature Sensors and Hydraulic Circuit Breakers.

Note: Detailed dimensional drawings and complete electrical parameter tables are available upon request.

Product Features & Competitive Advantages

Military-Grade Durability: Built to the same rugged standards as our Military Metal Relay series, capable of withstanding extreme vibration, shock, and thermal cycling encountered in flight and field operations.
Superior Environmental Sealing: Advanced sealing technologies ensure protection against moisture, dust, sand, and corrosive fluids (meeting IP67/IP68 or specified hermetic rates), which is crucial for Aviation Oxygen Valve control systems and external aircraft mounting.
High-Density, Reliable Contacts: The 7-pin layout provides a compact yet robust interface. Gold-plated contacts ensure low and stable contact resistance, critical for signal integrity in sensitive analog or digital circuits, similar to the reliability expected from high-end PCB Signal Relays.
Quick & Secure Mating: The bayonet or threaded coupling system allows for fast, tool-free connection and disconnection while providing a positive lock that prevents accidental decoupling under vibration.
Lightweight & Robust Construction: Optimized design uses high-strength, lightweight materials to minimize weight impact—a critical factor in aerospace and UAV applications—without compromising mechanical strength.
EMI/RFI Shielding: Optional full metal shell and design considerations provide excellent electromagnetic interference shielding, protecting signal integrity in electrically noisy environments.

Installation & Mating Procedure

Pre-Installation Inspection: Visually inspect connector halves for any signs of damage, contamination, or bent pins.
Proper Wire Termination: Follow manufacturer's instructions for crimping or soldering wires to the contacts. Use appropriate tools to ensure a gas-tight connection.
Contact Insertion: Carefully insert the terminated contacts into the connector insert until a positive click or lock is felt.
Connector Alignment: Align the key and keyway of the plug and socket to prevent mis-mating.
Coupling: Push the connectors together and rotate the coupling ring (for bayonet type) or thread the shells together (for threaded type) until fully seated and locked. A distinct click or smooth stop indicates proper mating.
Strain Relief & Sealing Check: Ensure the cable clamp or backshell is properly secured to provide strain relief. Verify that environmental seals are correctly positioned and compressed.
Post-Installation Verification: Perform continuity and insulation resistance checks to verify electrical integrity of the installed connection.

Application Scenarios

The PW20-7Pins Connector is deployed across a spectrum of demanding applications where reliability is paramount:

Unmanned Aerial Systems (UAS/UAV): Engine control unit (ECU) connections, payload (camera/sensor) interfaces, ground control station links.
Manned Aircraft Systems: Avionics bay interconnects, cockpit instrument panels, landing gear control systems, and connections for Aviation Cold Air Solenoid Valves.
Military Ground Vehicles & Equipment: Communication systems, radar/power unit interfaces, and connections within ruggedized enclosures housing Industrial Power Relays.
Rail Transportation: Control and signaling system interconnections within train cars and between carriages.
Test & Measurement Equipment: High-reliability interfaces for ground support equipment (GSE) and flight line testers.
Industrial Automation: Harsh environment machinery where dust, moisture, and vibration are concerns, similar to applications using Solid State Relays but requiring physical connectors.

Value Proposition for B2B Buyers

Enhanced System Uptime & Safety: Proven reliability reduces the risk of connection failure, minimizing system downtime and enhancing operational safety in critical applications.
Reduced Lifecycle Costs: High durability and long service life lower the total cost of ownership by reducing replacement frequency and maintenance interventions.
Supply Chain Consolidation: Source this high-performance connector from YM, a trusted manufacturer with proven expertise in related components like Automotive Relays and Aviation Rocker Switches, simplifying your vendor management.
Faster Time-to-Market: Our connectors are designed to meet relevant industry standards, supporting your product certification processes for aviation, military, and railway markets.

Certifications & Compliance

The PW20-7Pins Aviation Connector is designed and manufactured to meet the stringent requirements of international standards applicable to aviation (including environmental testing profiles), military (MIL-DTL-38999 Series III or equivalent performance), and railway industries. Our production facility operates under a certified quality management system (e.g., ISO 9001, AS9100), and we provide full material and test documentation to support your compliance needs.

Customization & OEM/ODM Services

YM understands that standard solutions may not fit every unique application. We offer extensive customization for the PW20 connector series, leveraging our experience in providing tailored solutions for New Energy Relay systems and other custom projects.

Custom pin configurations and arrangements (e.g., mixed power/signal/coaxial).
Special shell materials, finishes, and colors for specific corrosion resistance or branding.
Modified sealing levels (increased IP rating, hermetic seals).
Custom cable lengths, backshells, and strain relief designs.
Application-specific testing and qualification protocols.
Full OEM/ODM support, including private labeling and custom packaging.

Production & Quality Assurance

Design & Validation: Connector design is validated through CAD simulation, prototyping, and environmental testing.
Precision Machining: Shells and components are manufactured using CNC machining for high dimensional accuracy.
Contact Manufacturing: Contacts are precision stamped, formed, and plated with controlled thickness of gold or other finishes.
Automated Assembly: Key assembly steps are automated to ensure consistency and quality.
100% Electrical Testing: Every connector undergoes continuity, insulation resistance, and dielectric strength testing.
Dimensional & Visual Inspection: Critical dimensions and visual quality are checked against master samples.
Environmental Sampling Tests: Production batches are subjected to sample testing for vibration, shock, thermal cycling, and sealing (per relevant standards).
Traceability & Documentation: Each batch is fully traceable, with comprehensive test reports available.

Frequently Asked Questions (FAQ)

Q: What is the mating/unmating cycle life of the PW20-7Pins connector?
A: The connector is typically rated for 500+ mating cycles while maintaining all electrical and mechanical specifications, depending on the specific contact plating and usage conditions.
Q: Can this connector be used in high-pressure environments, such as inside hydraulic systems?
A: While it offers excellent environmental sealing, for direct immersion in hydraulic fluid or extreme high-pressure environments, specific variants with enhanced seals or configurations compatible with Aviation Single Hydraulic Valves should be discussed with our engineering team.
Q: Are the contacts removable for field repair?
A> Yes, the contacts are typically removable and replaceable using standard extraction tools, allowing for field servicing and wire replacement.
Q: What backshell options are available for cable strain relief?
A: We offer a range of standard backshells (straight, 90-degree) in various materials. Custom backshell designs for specific cable diameters and bend radius requirements can also be developed.
Q: How does this connector compare to similar MIL-DTL-38999 series connectors?
A: The PW20 series is engineered to deliver equivalent or superior performance in key areas such as environmental sealing, vibration resistance, and electrical characteristics, often at a more competitive value. Detailed comparison sheets are available upon request.
Q: Do you provide mating connectors or is it sold as a plug/socket set?
A: We supply complete mated pairs (plug and receptacle) as a standard offering to ensure perfect compatibility and performance.
