Aviation Rocker Switch
(Total 17 Products)
-

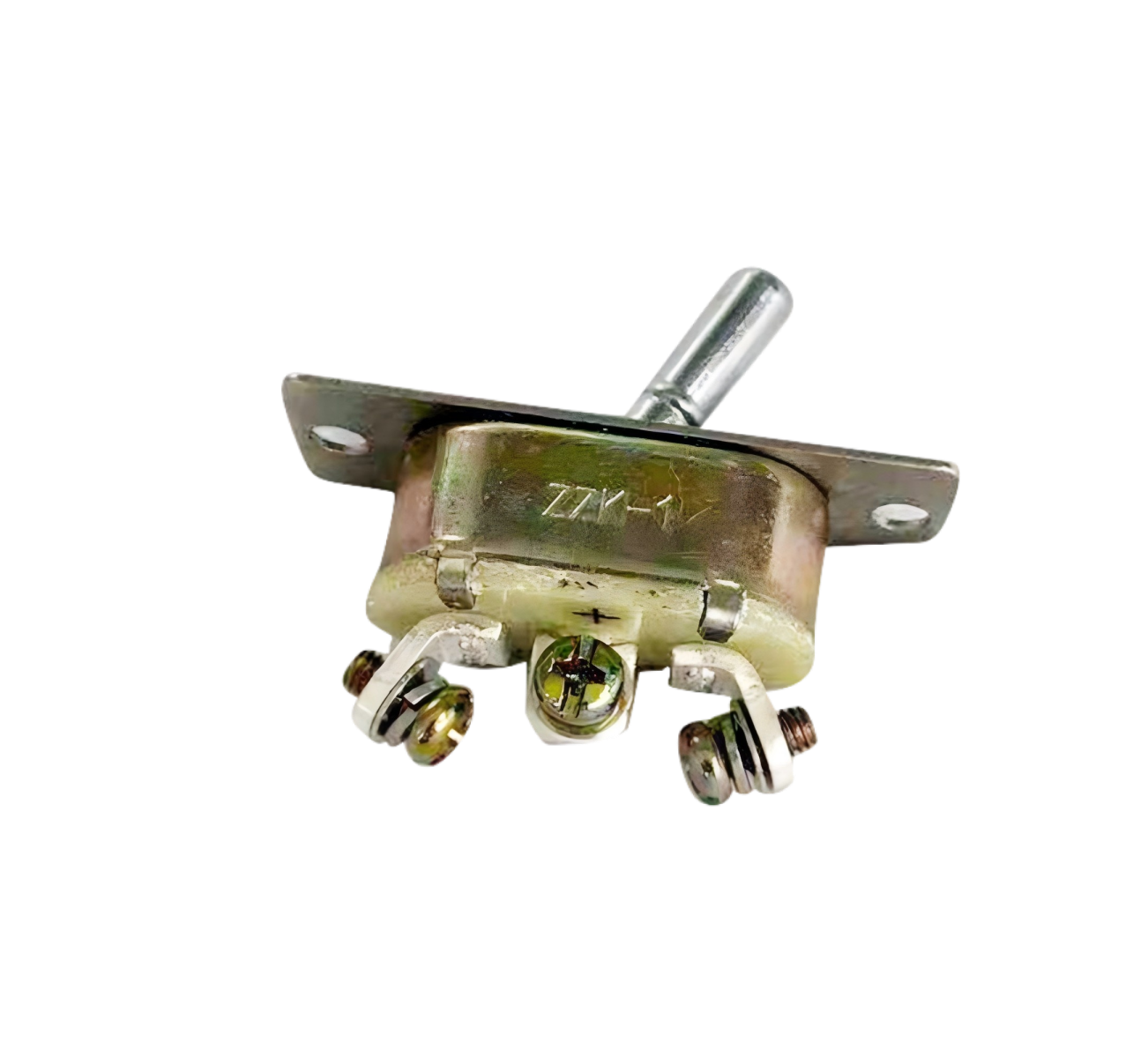

Brand:YMMin. Order:1Model No:ZZK-1 35A 28VDCZZK-1 35A 28VDC Aviation Rocker Switch: Heavy-Duty Power Control for Demanding Aerospace Applications Product Overview The ZZK-1 35A 28VDC is a heavy-duty Aviation Rocker Switch engineered for high-current power control applications in drone... -
Brand:YMMin. Order:1Model No:ZZK2-1 20A 28V 6PZZK2-1 20A 28V 6P Military Aviation Switch: High-Current Multi-Pole Power Distribution Solution Product Overview The ZZK2-1 20A 28V 6P is an advanced Military Aviation Switch combining high-current capability with multi-pole configuration,... -
Brand:YMMin. Order:1Model No:KA3 2A-250V 4A-125VPress Switch KA3 2A 250V locomotive use Versatile 2A-250V / 4A-125V Power Switching Solution YM's KA3 Military Aviation Switch delivers exceptional versatility with its unique dual current-voltage rating capability, making it an ideal solution for... -
Brand:YMMin. Order:1Model No:KA4 6PinsKA4 6P Civil Press Switch - DPDT Configuration for Complex Circuit Control in Demanding Environments YM's KA4 6P Military Aviation Switch delivers sophisticated double-pole double-throw (DPDT) switching capability engineered for the most demanding... -
Brand:YMMin. Order:1Model No:LLS2 35A 28V 2PLLS2 35A 28V 2P Military Aviation Switch: Dual-Pole High-Current Power Control Solution Product Overview The LLS2 35A 28V 2P is a heavy-duty Military Aviation Switch featuring dual-pole configuration with 35A current capacity at 28V DC, engineered... -
Brand:YMMin. Order:1Model No:ANC-4ANC-4 Military Aviation Switch - 4-Pole Compact Toggle for Efficient Multi-Circuit Management YM's ANC-4 Military Aviation Switch provides an optimal balance of multi-circuit control capability and compact design for aerospace, defense, and... -
Brand:YMMin. Order:1Model No:KN6A-202DMKN6A-202DM Military Aviation Switch - Precision Switching for Demanding Aerospace Applications YM's KA6A-202DM Military Aviation Switch is engineered to deliver uncompromising reliability and performance in the most challenging aerospace, defense,... -

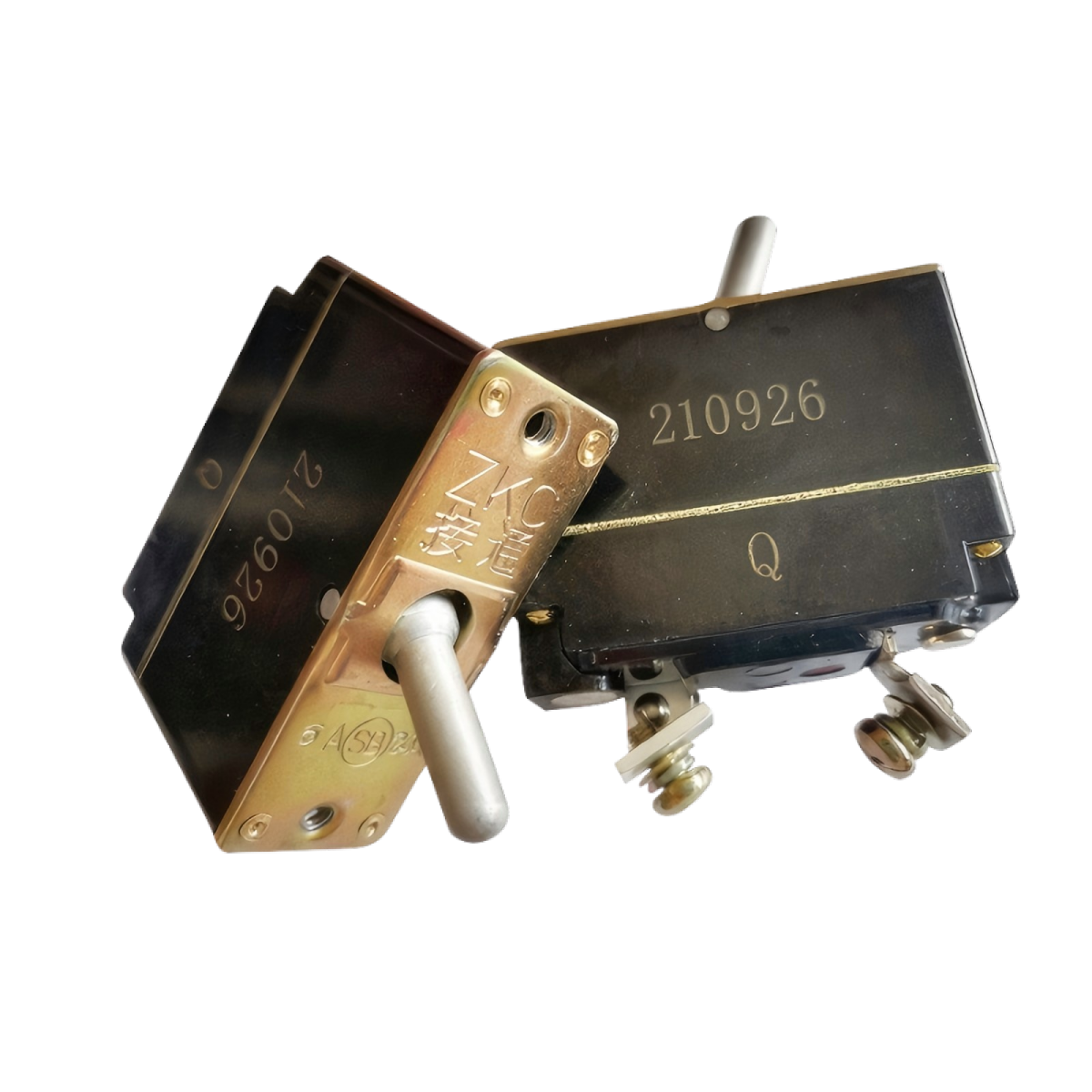

Brand:YMMin. Order:1Model No:ZKC DC24V 5A~80AZKC DC24V 5A~80A Military Aviation Switch: Scalable High-Current Power Control Solution Product Overview The ZKC DC24V 5A~80A is a versatile Military Aviation Switch series offering scalable current ratings from 5A to 80A at 24V DC, engineered for... -
Brand:YMMin. Order:1Model No:ZZK3-2 20A 28VZZK3-2 20A 28V Military Aviation Switch: High-Current Switching Solution for Aerospace Power Systems Product Overview The ZZK3-2 20A 28V is a high-current Military Aviation Switch specifically engineered for power distribution and control... -

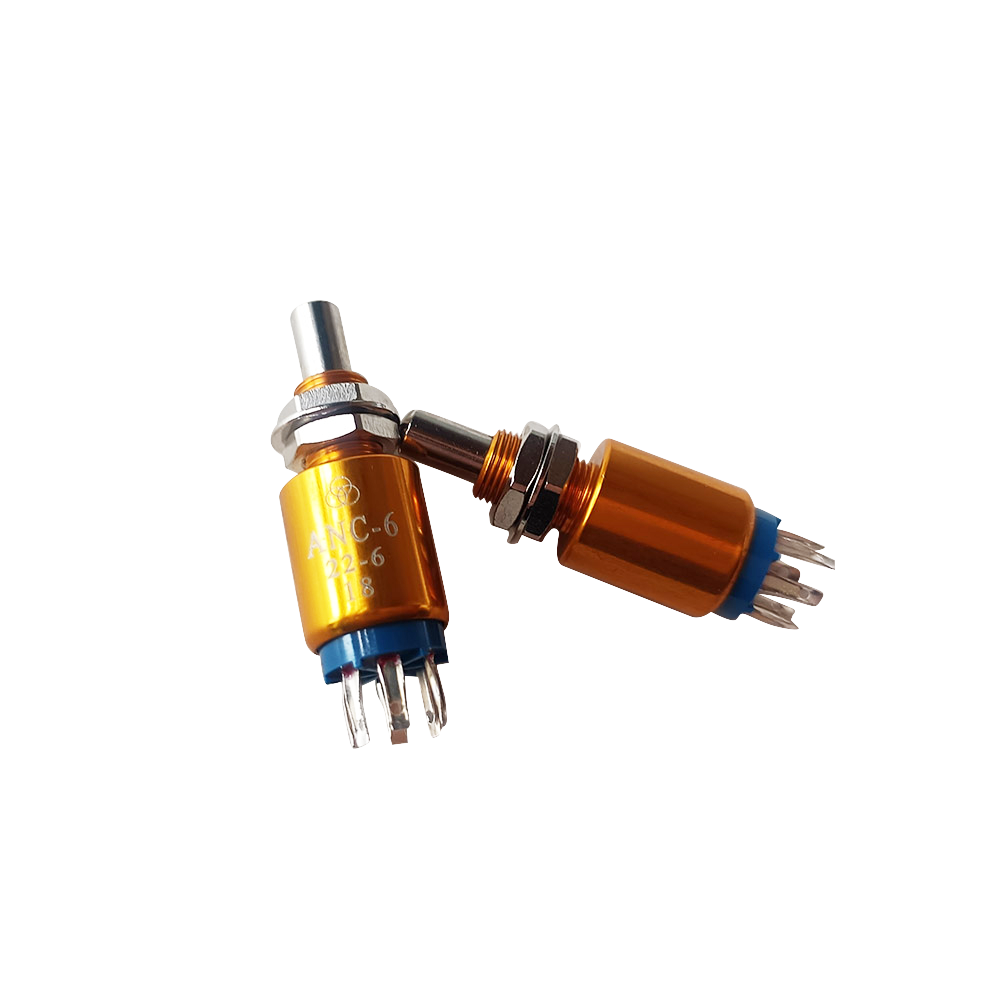

Brand:YMMin. Order:1Model No:ANC-6ANC-6 Military Aviation Switch - 6-Pole Compact Toggle for Multi-Circuit Control YM's ANC-6 Military Aviation Switch delivers sophisticated multi-circuit control capability in an exceptionally compact package. Engineered as a 6-pole toggle switch,... -

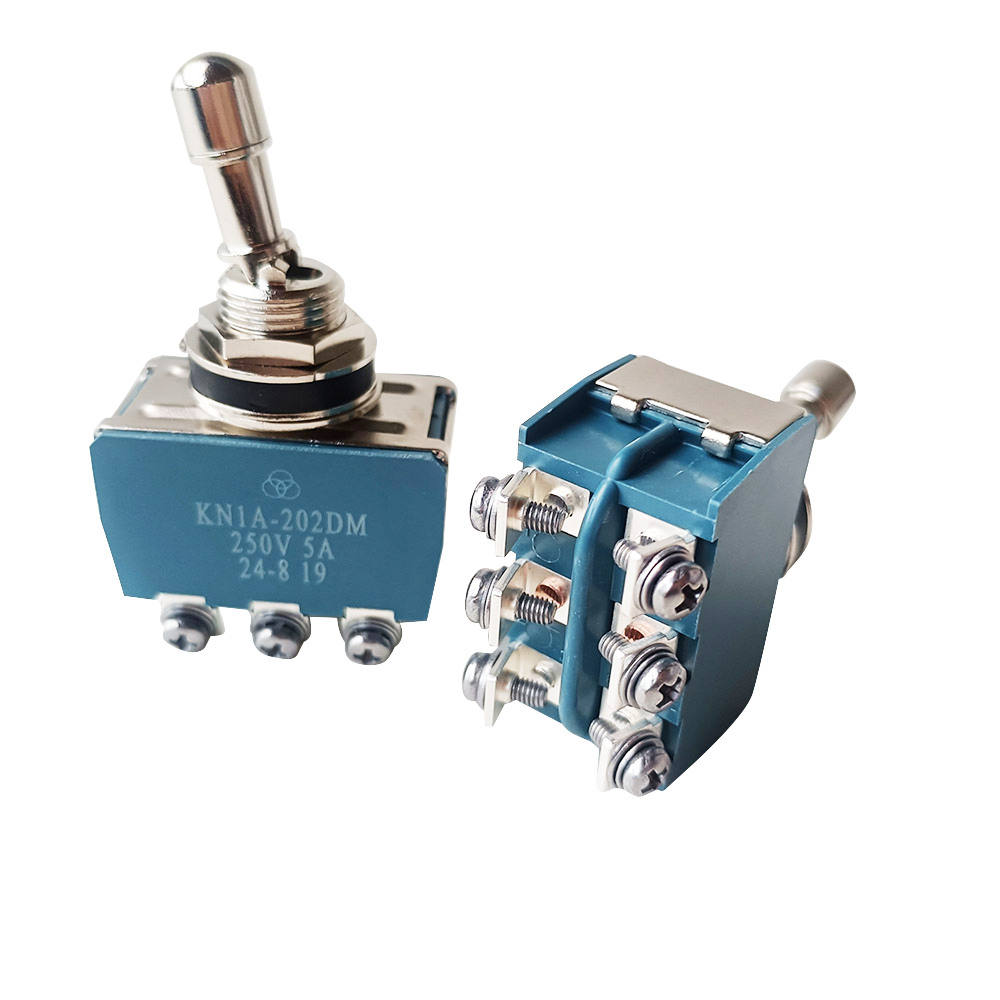

Brand:YMMin. Order:1Model No:KN1A-202DM 250V 5AKN1A-202DM 250V 5A Military Aviation Switch - High-Current Reliability for Demanding Aerospace Applications YM's KN1A-202DM Military Aviation Switch sets a new standard for high-current switching in critical aerospace, defense, and industrial... -
Brand:YMMin. Order:1Model No:KN3 6PinsKN3 Series Military Aviation Switch - Versatile Multi-Pole Switching for Critical Aerospace Systems YM's KN3 Series Military Aviation Switch represents a versatile and highly reliable switching solution engineered for the most demanding aerospace,... -
Brand:YMMin. Order:1Model No:LLA2-ALLA2-A Military Aviation Switch: Advanced A-Series Toggle Switch for Critical Aerospace Control Product Overview The LLA2-A is a precision-engineered Military Aviation Toggle Switch from YM's advanced A-Series, specifically designed for reliable... -
Brand:YMMin. Order:1Model No:MA00L3NZGF 10PMA00L3NZGF 10P Military Aviation Switch: 10-Pole Multi-Gang Switching Solution for Complex Systems Product Overview The MA00L3NZGF 10P is an advanced Military Aviation Switch featuring a sophisticated 10-pole configuration, engineered for complex... -

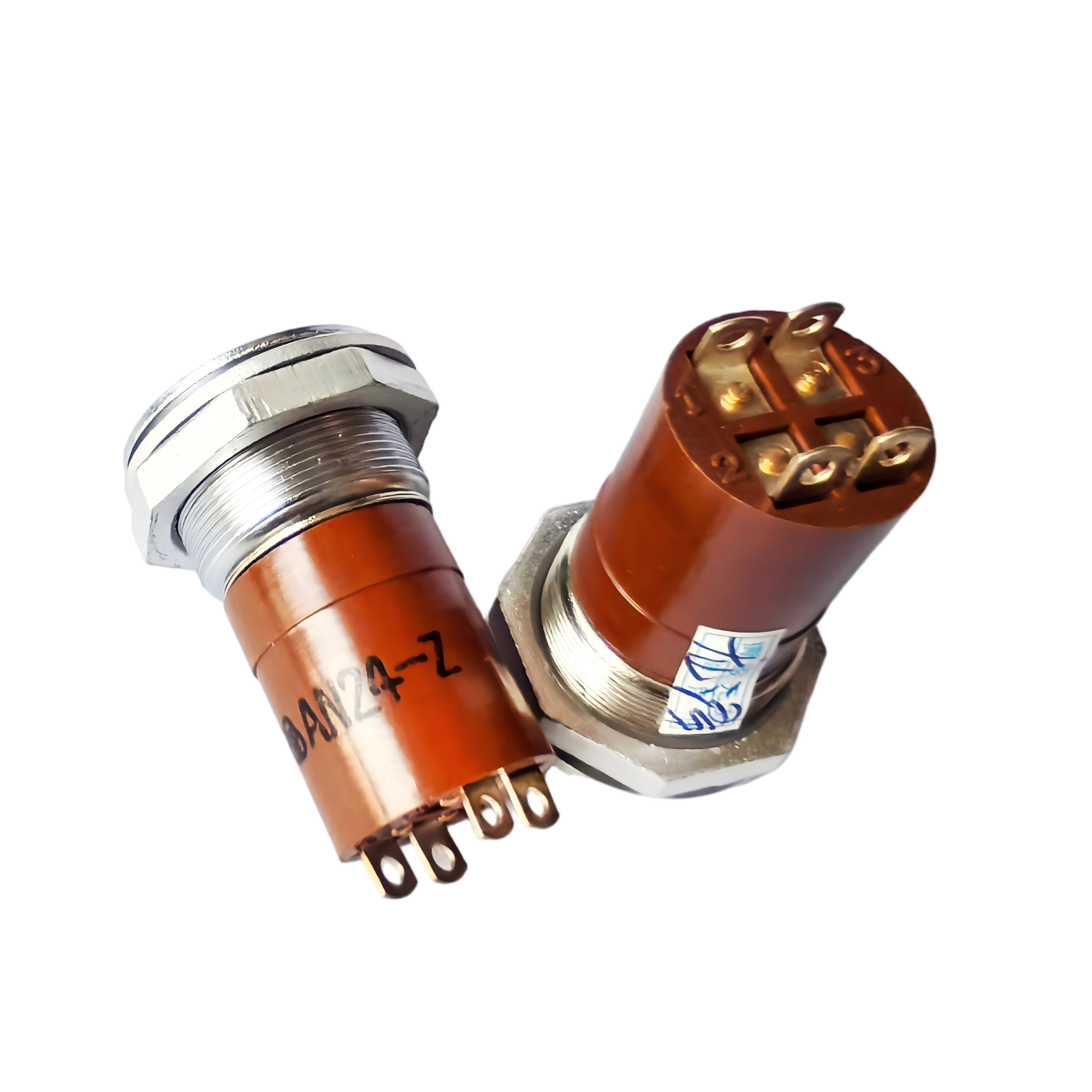

Brand:YMMin. Order:1Model No:AN24-ZAN24-Z Military Aviation Switch: High-Reliability SPDT 4P Switch for Aerospace Control Systems The AN24-Z Military Aviation Switch is a precision-engineered Single Pole Double Throw (SPDT) 4-pole switching device designed for critical control... -
Brand:YMMin. Order:1Model No:AN34-KAN34-K Military Aviation Switch: High-Performance Switching for Aerospace & Drone Systems The AN34-K Military Aviation Switch is a precision-engineered electromagnetic switch designed for critical applications in drones, aircraft engines, and... -
Brand:YMMin. Order:1Model No:AN34-ZMilitary Aviation Switch AN34-Z: High-Reliability Switching Solution for Demanding Aerospace Applications The AN34-Z Military Aviation Switch is a precision-engineered, ultra-reliable switching component designed for critical systems in drones,...
Military & Aircraft Rocker Switches: Engineered for Extreme Reliability & Performance
YM specializes in manufacturing high-grade aircraft rocker switches and aviation control components designed to meet the rigorous demands of military and commercial Aviation Applications. Our products are synonymous with durability, precision, and unwavering performance in critical environments.
Product Overview
Our core product line encompasses a wide range of military-grade rocker switches, including wave switches, swing arm switches, micro switches, and protection switches. These certified aircraft rocker switches are built to withstand extreme conditions, ensuring reliable operation for flight control systems, instrumentation, and onboard equipment. Each switch, from the Military Aviation Switch KN1A-202DM 10A to the robust LLS2 35A 28V 2P Rocker Switch, is crafted with a singular focus on mission-critical reliability.
Product Images
Technical Specifications
Our aviation switches are defined by precise engineering specifications to ensure compatibility and safety.
- Current Ratings: Ranging from standard 10A (e.g., Military Wave Switch KN1-202DM 28V 10A) to high-current 35A for demanding circuits.
- Voltage Ratings: Primarily 28V DC standard for aviation and military vehicle systems, with protective models like the ZKC 28V protect switch.
- Contact Configurations: Various options including SPST, DPDT, and 2P (2-Pole) as seen in the LLS2 series.
- Construction: High-strength thermosetting plastics and metal alloys resistant to vibration, corrosion, and wide temperature ranges.
- Models: Key models include LLA2-A Aviation Switch, KA1-1 Aviation Switch, KAN-A8-6 Switch, and specialized Aircraft Swing Arm Switch designs.
Product Features & Advantages
Why Choose YM Aviation Switches?
Our military rocker switches stand out due to several key advantages crucial for B2B procurement:
- Extreme Environment Durability: Designed to perform flawlessly under shock, vibration, humidity, and extreme temperatures encountered in military aviation.
- Superior Electrical Performance: Low contact resistance, high break capacity, and stable performance over thousands of cycles ensure long-term system integrity.
- Safety & Reliability First: Every component, from the micro switch to the main rocker switch aircraft actuator, is subjected to rigorous life-cycle testing.
- Precision Engineering: Tight tolerances in our Inches Switch and other components guarantee consistent actuation and perfect panel fit.
- Comprehensive Range: From simple press switches to complex aviation swing arm switches, we provide a one-stop solution for cockpit and panel designers.
Application Scenarios
YM switches are integral to safety and control in high-stakes environments.
- Military Aircraft & Helicopters: Control panels, weapon systems, communication equipment. The Military Aviation Switch KN1A-202DM 10A is a trusted component in such applications.
- Commercial Aviation: Overhead panels, passenger service units, galley controls, and lighting systems.
- Ground Support & Military Vehicles: Armored vehicle control panels, power distribution units, and ground power equipment where military grade rocker switch robustness is required.
- Aviation Simulators: Providing authentic, reliable tactile feedback in training equipment.
- Industrial Control Panels: For sectors requiring aviation-level reliability, such as marine, energy, and transportation.
Value for Procurement Officers
Sourcing aircraft grade toggle switches from YM translates into direct business benefits:
- Reduced Lifecycle Cost: Exceptional durability minimizes failure rates, replacement needs, and associated downtime costs.
- Supply Chain Confidence: Consistent quality and reliable performance reduce inspection overhead and project risk.
- Streamlined Compliance: Our components are engineered to help your final products meet stringent industry standards.
- Enhanced Product Quality: Integrating high-reliability switches like our Aviation Rocker Switch with military grade build elevates the perceived and actual quality of your systems.
How to Integrate YM Rocker Switches
Follow these general steps for successful integration. Always refer to the specific model's datasheet.
- Selection & Verification: Choose the correct model (e.g., KA1-1 Aviation Switch for low-current signaling) based on your circuit's voltage, current, and function requirements.
- Panel Preparation: Ensure the cutout dimensions match the switch's mounting specifications precisely for a secure fit.
- Electrical Connection: Solder or crimp wires to the terminals as per the wiring diagram. Use appropriate tools to avoid damaging the micro switch internals.
- Mechanical Mounting: Secure the switch into the panel using the provided hardware, ensuring it is flush and stable.
- Functional Testing: Before final installation, perform actuation and continuity tests to verify proper operation of the aircraft rocker switch.
Certifications & Compliance
Quality is verified, not just claimed. Our manufacturing processes and products are developed with adherence to critical international standards for military grade switches and Aerospace Components. We support our partners in meeting their certification goals.
Customization Options
We understand that standard models may not fit every unique requirement. YM offers tailored solutions, including:
- Custom labeling, legends, and backlighting colors.
- Specific electrical ratings and contact materials.
- Modified actuator styles (rockers, toggles, paddles) and sizes.
- Bespoke connector types or terminal layouts.
- Development of fully custom certified aircraft rocker switches for OEM projects.
Production & Quality Assurance Process
Our Commitment to Excellence
Every YM switch undergoes a stringent multi-stage process:
- Precision Manufacturing: Using automated and precision machinery for consistency.
- Component Assembly: Skilled technicians assemble critical parts like the swing arm in our Aircraft Swing Arm Switch.
- In-Line Testing: 100% electrical function testing at multiple stages.
- Environmental & Life Testing: Batch testing for vibration, temperature cycling, and mechanical life span.
- Final Inspection & Packaging: Thorough visual and dimensional check before anti-static, protective packaging.
Frequently Asked Questions (FAQ)
Q1: What is the primary difference between a standard rocker switch and an aviation rocker switch with military grade specifications?
A: Aviation and military-grade switches are subject to vastly more rigorous testing for environmental factors (vibration, shock, temperature extremes, moisture) and have much higher reliability and lifecycle requirements compared to commercial-grade components.
Q2: Can I use the Military Wave Switch KN1-202DM 28V 10A in a 12V or 24V system?
A: Yes, a switch rated for 28V can typically be used in lower voltage systems (12V, 24V). However, the current rating (10A) must still be respected. Always verify with the specific technical datasheet.
Q3: Do you provide technical drawings and specifications for panel cutouts?
A: Absolutely. We provide complete CAD drawings, dimensional schematics, and datasheets for all our products, including the LLS2 35A 28V 2P Rocker Switch and Inches Switch series, to facilitate easy integration into your designs.
Q4: What is the typical operational lifespan of your aircraft rocker switches?
A: Lifespan varies by model and load, but our military rocker switches are typically rated for tens of thousands to over 100,000 mechanical cycles, ensuring long service life even in high-frequency use scenarios.
Q5: Are your switches compliant with RoHS and REACH regulations?
A: Yes. YM is committed to environmental responsibility. Our switches are manufactured using materials and processes that comply with international RoHS and REACH directives.
