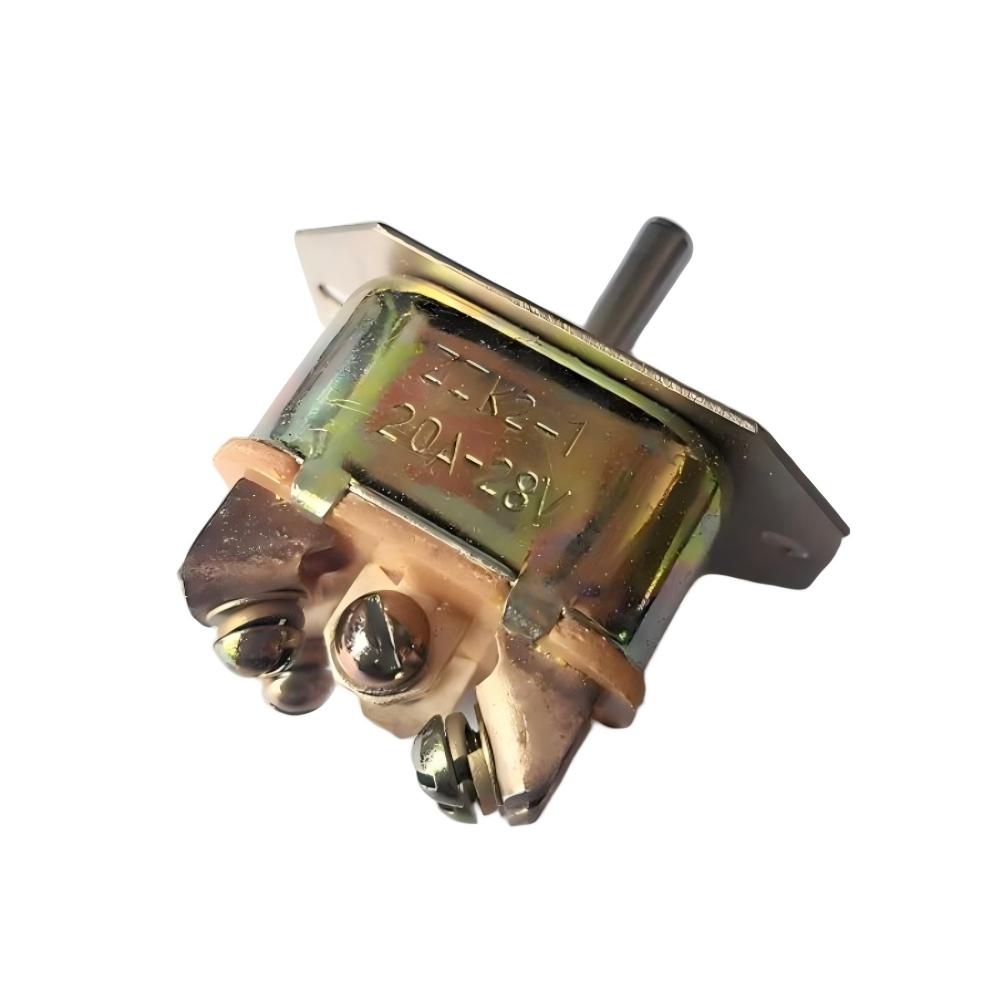

Aviation Switch ZZK2-1 20A 28V 6Pins

Product Overview

The ZZK2-1 20A 28V 6P is an advanced Military Aviation Switch combining high-current capability with multi-pole configuration, engineered for complex power distribution and control applications in drone systems, aircraft engines, train controls, and Aviation Electronics. Rated for 20A at 28V DC with six independent poles, this sophisticated switch provides simultaneous control of multiple high-current circuits in a single compact unit. As a premium component in YM's comprehensive aviation solutions portfolio—complementing products like Hydraulic Circuit Breakers and Industrial Power Relays—the ZZK2-1 delivers unparalleled multi-circuit power management for mission-critical systems.

Technical Specifications

• Model Number: ZZK2-1
• Current Rating: 20A continuous at 28V DC per pole
• Voltage Rating: 28V DC (aviation standard)
• Pole Configuration: 6-pole independent switching capability
• Switch Type: High-current multi-pole military aviation switch
• Total Current Capacity: 120A combined (6 poles × 20A)
• Contact Resistance: Initial ≤50mΩ per contact; After durability testing ≤200mΩ
• Electrical Life: Minimum 100,000 switching operations at rated load
• Switching Speed: Action time ≤4ms; Release time ≤4ms
• Dielectric Strength: 500V RMS @ 50Hz (standard); 250V RMS @ 50Hz (low pressure)
• Insulation Resistance: >500 MΩ initially; >50 MΩ after environmental testing
• Inter-Pole Isolation: High electrical isolation between all six poles
• Thermal Performance: Engineered for efficient heat dissipation with multiple poles at full current
• Environmental Sealing: Maximum leakage rate ≤ 1.0 x 10⁻³ Pa·cm³/s (hermetic grade)
• Operating Temperature: Performance validated for aviation conditions, compatible with Aviation Temperature Sensor monitoring
• Terminal Design: Heavy-duty terminals for secure 20A connections per pole
• Synchronization: All six poles actuate simultaneously for coordinated control

Product Features & Competitive Advantages

1. High-Current Multi-Pole Design: Combines 20A current capacity with six independent poles, providing 120A total switching capability in a single unit—dramatically reducing panel space compared to six individual 20A switches.
2. Coordinated Multi-Circuit Control: All six poles actuate simultaneously, ensuring perfectly synchronized switching of multiple high-current circuits for complex system operations.
3. Advanced Thermal Management System: Engineered heat dissipation design handles thermal loads from multiple poles operating at full 20A capacity simultaneously, preventing overheating and ensuring long-term reliability.
4. Military-Grade Construction: Reinforced mechanical design and heavy-duty contacts withstand the combined thermal and mechanical stresses of multi-pole high-current switching operations.
5. Superior Isolation Between Poles: Exceptional electrical isolation prevents interference between independent circuits, even when handling high currents on adjacent poles.
6. Advanced Environmental Sealing: Hermetic sealing (≤10⁻³ Pa·cm³/s) provides comprehensive protection for all six poles in demanding aerospace environments, matching the protection standards of Aviation Oil Sealed Valves.
7. Arc Suppression Optimization: Special contact geometry and materials minimize arcing during simultaneous switching of multiple high-current circuits, extending contact life and reducing electromagnetic interference.

Installation and Wiring Procedure for Multi-Pole High-Current Applications

1. System Current Analysis: Calculate current requirements for each of the six circuits to ensure none exceed 20A continuous rating.
2. Proper Wire Sizing: Use appropriately sized aviation-grade wire (typically 12 AWG) for each 20A circuit with proper insulation rating and derating for environmental conditions.
3. Secure High-Current Mounting: Mount switch on reinforced panel using all provided hardware to withstand mechanical forces from multiple high-current connections.
4. Multi-Circuit Connection Strategy: Plan wiring layout to accommodate six separate circuits, maintaining proper separation and identification for each pole.
5. High-Current Terminal Connections: Make secure connections to all six heavy-duty terminals using proper crimping techniques designed for 20A applications.
6. Thermal Management Planning: Ensure adequate ventilation around switch installation, particularly important when multiple poles operate at high currents simultaneously.
7. Sealing Integrity Verification: Confirm environmental seals are properly engaged to maintain protection for all internal circuits.
8. Comprehensive Multi-Circuit Testing: Test each pole independently at rated current, then test coordinated switching of all six poles before system integration with components like Hydraulic Circuit Breakers or power distribution systems.

Application Scenarios

The ZZK2-1 20A 28V 6P Military Aviation Switch is engineered for sophisticated multi-circuit power distribution applications:

• Aircraft Multi-System Power Distribution: Simultaneous control of multiple avionics systems, lighting circuits, and auxiliary power distribution in commercial and military aircraft.
• Large UAV Power Management Systems: Coordinated switching of multiple propulsion systems, sensor arrays, and mission payloads in advanced unmanned aerial vehicles.
• Rail Vehicle Complex Power Control: Simultaneous control of traction systems, braking controls, lighting, and auxiliary systems in modern train applications.
• Military Multi-System Tactical Equipment: Coordinated power control for communication systems, surveillance equipment, and weapon systems in field operations.
• Industrial Multi-Machine Control: Simultaneous control of multiple production machines, processing equipment, and auxiliary systems in manufacturing facilities.
• Aircraft Ground Support Equipment: Multi-circuit control for ground power units, lighting systems, and maintenance equipment power distribution.
• Emergency Power System Management: Coordinated switching of multiple backup power circuits, emergency lighting networks, and critical infrastructure systems.
• High-Power Test and Laboratory Systems: Multi-circuit control for complex test setups, laboratory equipment, and research systems requiring synchronized power management.

Value Proposition for Complex Power Applications

• Unprecedented Integration: Combines six 20A switches into one compact unit, reducing panel space requirements by up to 80% compared to individual switches.
• Perfect Synchronization: Ensures perfectly coordinated switching of multiple circuits, eliminating timing discrepancies that can cause system issues in complex power applications.
• Simplified System Architecture: Dramatically reduces wiring complexity, connection points, and potential failure modes in multi-circuit power systems.
• Enhanced Safety and Reliability: Engineered for safe operation with multiple high-current circuits, with robust thermal management and isolation features.
• Cost and Space Efficiency: Provides six-switch functionality at significantly lower total cost and space requirements than individual components.
• Maintenance Optimization: Single component replacement instead of multiple individual switches simplifies maintenance and reduces inventory requirements.
• Design Consistency: Provides uniform control interface for complex multi-system operations, reducing operator training requirements.

Certifications & Compliance

The ZZK2-1 20A 28V 6P Military Aviation Switch is designed and manufactured to meet or exceed the most stringent performance requirements for multi-pole high-current switching components, including military specifications for complex power distribution equipment, aviation requirements for multi-system power control safety and reliability, and industrial standards for sophisticated power management applications. Our manufacturing processes comply with rigorous quality management systems specifically addressing multi-pole synchronization and high-current performance validation, and we provide comprehensive technical documentation including full multi-circuit performance test reports to support customer qualification, certification, and compliance efforts for critical power distribution applications.

Customization & OEM/ODM Services

YM offers extensive customization capabilities for the ZZK2-1 multi-pole high-current switch series:

• Custom pole configurations (4-pole, 6-pole, 8-pole variants) to match specific application requirements
• Special current ratings per pole based on specific circuit requirements
• Custom synchronization timing between poles for specific system requirements
• Enhanced isolation specifications between poles for sensitive adjacent circuits
• Advanced thermal management features for extreme multi-pole operating conditions
• Custom terminal configurations for different wiring standards and connection methods
• Special switching sequences and interlock configurations for complex system operations
• Application-specific testing and validation protocols for multi-pole high-current performance

Our proven OEM and ODM expertise in complex switching components, demonstrated across our Automotive Relay and New Energy Relay product lines, ensures we can develop tailored multi-pole high-current switch solutions that precisely match your most demanding power distribution requirements and application specifications.

Production Process & Quality Assurance for Multi-Pole High-Current Components

1. Multi-Pole Component Manufacturing: Precision manufacturing of six independent high-current contact systems with exact alignment and synchronization capabilities.
2. Synchronization Mechanism Engineering: Sophisticated mechanical design ensuring perfect simultaneous actuation of all six poles.
3. Advanced Thermal Engineering: Implementation of multi-circuit heat dissipation systems capable of handling 120A total current capacity.
4. Isolation Barrier Implementation: Precision installation of high-grade insulation barriers between all six poles to prevent electrical interference.
5. Comprehensive Multi-Circuit Testing: Individual testing of each pole at 20A, followed by synchronized testing of all six poles simultaneously at full current.
6. Synchronization Validation: Precise timing measurement to verify perfect synchronization between all six poles during switching transitions.
7. Thermal Stress Testing: Validation of performance under repeated thermal cycling with multiple poles operating at full current simultaneously.
8. Final Quality Assurance: Complete inspection including dimensional verification, mechanical function testing, individual pole performance validation, synchronization accuracy verification, thermal performance assessment, and full manufacturing traceability for critical multi-pole power components.

System Integration and Complementary Multi-Circuit Components

The ZZK2-1 20A 28V 6P Military Aviation Switch is designed for integration into the most sophisticated multi-circuit power distribution and control systems. For complete multi-circuit system solutions, consider pairing with YM's complementary products such as Aviation Copper Fuse Holders with multiple circuits for comprehensive protection, Military Pressure Sensors for multi-parameter system monitoring, and Solid State Relays for automated multi-circuit control in advanced power management systems. This integrated approach enables the creation of reliable, high-performance multi-circuit power control systems for aerospace, defense, and industrial applications where coordinated high-current switching across multiple circuits is essential for system performance and operational safety.
