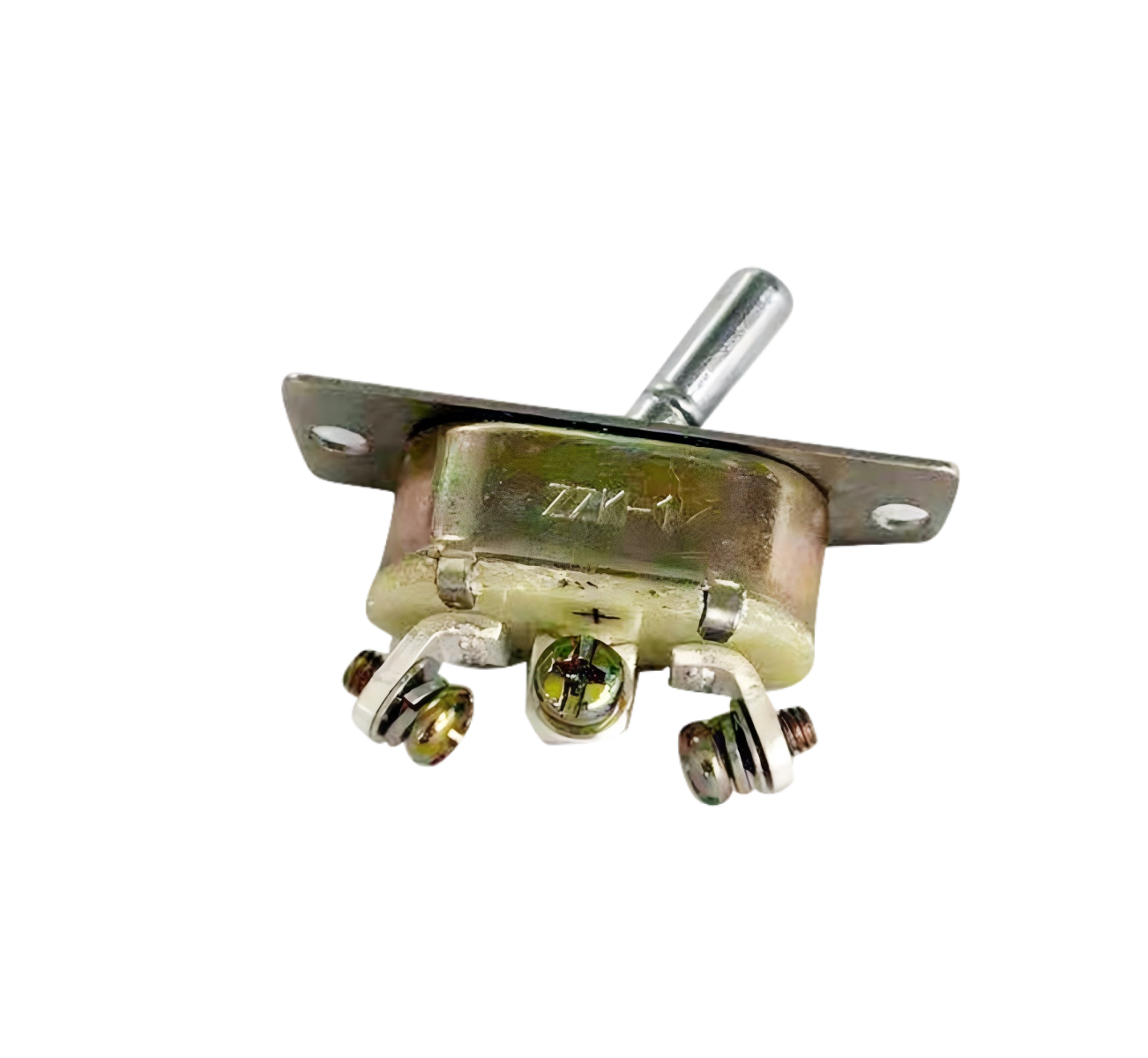

Aviation Rocker Switch ZZK-1 35A 28VDC

Product Overview

The ZZK-1 35A 28VDC is a heavy-duty Aviation Rocker Switch engineered for high-current power control applications in drone systems, aircraft engines, train controls, and Aviation Electronics. Rated for an impressive 35A at 28V DC, this robust rocker switch represents the pinnacle of high-current switching technology for aerospace applications. As a flagship component in YM's comprehensive aviation solutions portfolio—complementing products like Hydraulic Circuit Breakers and Industrial Power Relays—the ZZK-1 delivers unparalleled current-carrying capacity and reliability for mission-critical power distribution systems.

Technical Specifications

• Model Number: ZZK-1
• Current Rating: 35A continuous at 28V DC
• Voltage Rating: 28V DC (aviation standard voltage)
• Switch Type: Heavy-duty aviation rocker switch
• Contact Configuration: High-current contacts with 3-pole design as standard
• Contact Resistance: Initial ≤50mΩ; After durability testing ≤200mΩ
• Electrical Life: Minimum 100,000 switching operations at rated load
• Switching Speed: Action time ≤4ms; Release time ≤4ms
• Dielectric Strength: 500V RMS @ 50Hz (standard pressure); 250V RMS @ 50Hz (low pressure)
• Insulation Resistance: >500 MΩ initially; >50 MΩ after environmental testing
• Thermal Performance: Engineered for efficient heat dissipation at 35A continuous current
• Mechanical Life: >50,000 rocker actuations
• Environmental Sealing: Maximum leakage rate ≤ 1.0 x 10⁻³ Pa·cm³/s (hermetic grade)
• Operating Temperature: Performance validated for extreme aviation conditions, compatible with Aviation Temperature Sensor monitoring
• Terminal Capacity: Heavy-duty terminals designed for secure 35A connections
• Mounting Style: Panel mount with secure rocker mechanism

Product Features & Competitive Advantages

1. Exceptional Current Capacity: Rated for 35A continuous operation at 28V DC—one of the highest current ratings available in aviation rocker switches—making it ideal for primary power distribution applications where other switches would require parallel connections or external contactors.
2. Heavy-Duty Thermal Management: Advanced thermal design with optimized heat dissipation paths prevents overheating at full rated current, ensuring long-term reliability in high-current applications.
3. Military-Grade Construction: Reinforced rocker mechanism and heavy-duty contacts withstand the mechanical and thermal stresses of high-current switching operations, complementing systems using Industrial Power Relays for complete power management solutions.
4. Superior Arc Suppression: Special contact geometry and materials minimize arcing during 35A switching transitions, extending contact life and reducing electromagnetic interference in sensitive avionics environments.
5. Advanced Environmental Sealing: Hermetic sealing (≤10⁻³ Pa·cm³/s) provides comprehensive protection in demanding aerospace environments while handling high currents, matching the protection standards of Aviation Oil Sealed Valves.
6. Ergonomic Rocker Design: Large, positive-action rocker provides clear visual and tactile feedback even when operating with gloves, with position indicators for easy status identification.
7. Vibration-Resistant High-Current Design: Engineered to maintain reliable 35A connections under severe vibration and shock conditions typical of aerospace applications.

Installation and Wiring Procedure for Ultra High-Current Applications

1. Current Load Verification: Confirm actual current requirements do not exceed 35A continuous rating, with appropriate derating for environmental conditions.
2. Proper Wire Sizing: Use appropriately sized aviation-grade wire (typically 8-10 AWG) capable of safely carrying 35A continuous current with proper insulation rating.
3. Secure High-Current Mounting: Mount switch on rigid, reinforced panel using all provided mounting hardware to withstand mechanical forces during high-current operation.
4. High-Current Connection Techniques: Make secure connections to heavy-duty terminals using proper crimping tools and techniques designed for high-current applications.
5. Thermal Management Planning: Ensure adequate ventilation and heat dissipation around switch installation, particularly in enclosed spaces or high ambient temperature environments.
6. Sealing Integrity Check: Verify environmental seals are properly engaged to maintain protection against contaminants while handling high currents.
7. High-Current Testing Protocol: Test switch operation at progressively increasing currents up to rated 35A to verify thermal performance and contact integrity before system integration with components like Hydraulic Circuit Breakers or power distribution systems.

Application Scenarios

The ZZK-1 35A 28VDC Aviation Rocker Switch is engineered for the most demanding high-current switching applications:

• Aircraft Primary Power Distribution: Main power switching for large avionics systems, cabin lighting networks, and auxiliary power distribution panels in commercial and military aircraft.
• Large UAV Power Management: Primary power control for heavy-lift drone propulsion systems, high-power sensor arrays, and mission systems in large unmanned aerial vehicles.
• Rail Vehicle Traction Power: Primary switching for train traction systems, high-power HVAC units, and main auxiliary power distribution in rail applications.
• Military High-Power Systems: Power control for radar systems, high-power communications equipment, and tactical power distribution in field operations.
• Industrial High-Current Control: Primary power switching for heavy machinery, large processing equipment, and industrial power distribution panels.
• Aircraft Ground Power Units: Main power switching for large ground power equipment, aircraft starting systems, and maintenance power distribution.
• Emergency and Backup Power Systems: Primary control switching for large backup power systems, emergency lighting networks, and critical infrastructure power distribution.
• High-Power Test Equipment: Switching for load banks, power supply testing systems, and high-current laboratory equipment.

Value Proposition for High-Current Power Applications

• Unmatched Current Capacity: Provides 35A switching capability in a single rocker switch package, eliminating need for complex parallel switching arrangements or external contactors.
• Space Optimization: Compact design relative to alternative 35A switching solutions saves valuable panel space in aerospace applications where every square centimeter matters.
• Simplified System Design: Reduces system complexity by providing high-current switching in a standard rocker switch form factor, compatible with existing panel designs.
• Enhanced Safety Features: Designed and extensively tested for safe operation at 35A, with robust thermal management and arc suppression to prevent hazards.
• Long-Term Reliability: Engineered for extended service life at full rated current, reducing maintenance requirements and preventing unexpected downtime in critical systems.
• Cost Efficiency: Provides high-current switching capability at competitive cost compared to custom contactor-based solutions or multiple parallel switches.
• Standardized Operation: Familiar rocker switch operation with enhanced current capacity reduces training requirements and operator error potential.

Certifications & Compliance

The ZZK-1 35A 28VDC Aviation Rocker Switch is designed and manufactured to meet or exceed the most stringent performance requirements for high-current switching components, including military specifications for high-power distribution equipment, aviation requirements for primary power switching safety and reliability, and industrial standards for heavy-duty current-carrying applications. Our manufacturing processes comply with rigorous quality management systems specifically addressing ultra-high-current performance validation, and we provide comprehensive technical documentation including full current-carrying capacity test reports to support customer qualification, certification, and compliance efforts for critical power applications.

Customization & OEM/ODM Services

YM offers extensive customization capabilities for the ZZK-1 ultra-high-current rocker switch series:

• Custom current ratings optimized for specific application requirements
• Special terminal configurations for different high-current wiring standards and connection methods
• Enhanced thermal management features for extreme ambient temperature applications
• Custom switching configurations including multi-pole designs for complex power distribution
• Advanced arc suppression features tailored to specific load characteristics (highly inductive, capacitive, or resistive)
• Custom environmental sealing for unique operating conditions and exposure profiles
• Special rocker designs, colors, and illumination options for specific panel requirements
• Application-specific testing and validation protocols for ultra-high-current performance

Our proven OEM and ODM expertise in power switching components, demonstrated across our Automotive Relay and New Energy Relay product lines, ensures we can develop tailored ultra-high-current rocker switch solutions that precisely match your most demanding power requirements and application specifications.

Production Process & Quality Assurance for Ultra High-Current Components

1. Ultra High-Current Component Manufacturing: Precision manufacturing of heavy-duty contacts and terminals using specialized alloys optimized for 35A current-carrying capacity and thermal performance.
2. Advanced Thermal Engineering: Implementation of sophisticated heat dissipation systems including thermal paths, heat sinking features, and temperature-resistant materials.
3. High-Current Contact Assembly: Precision assembly of ultra-heavy-duty contacts with exact alignment and pressure specifications for reliable 35A switching.
4. Full-Current Testing Regimen: Comprehensive testing at rated 35A current to verify thermal performance, contact integrity, and switching reliability under maximum load conditions.
5. Arc Performance Optimization: Testing and optimization of arc suppression systems for safe and reliable 35A switching transitions.
6. Thermal Stress Testing: Validation of performance under repeated thermal cycling at full rated current to simulate worst-case operating conditions.
7. Ultra High-Current Endurance Validation: Extended operation testing at 35A to verify long-term reliability, contact stability, and thermal management effectiveness.
8. Comprehensive Final Quality Assurance: Complete inspection including dimensional verification, mechanical function testing, ultra-high-current performance validation, thermal performance assessment, safety feature verification, and full manufacturing traceability for critical power components.

System Integration and Complementary Ultra High-Current Components

The ZZK-1 35A 28VDC Aviation Rocker Switch is designed for integration into the most demanding high-current power distribution and control systems. For complete ultra-high-current system solutions, consider pairing with YM's complementary products such as Aviation Copper Fuse Holders with appropriate current ratings for circuit protection, Military Pressure Sensors for comprehensive system monitoring, and Solid State Relays for automated high-current control in sophisticated power management systems. This integrated approach enables the creation of reliable, high-performance power control systems for aerospace, defense, and industrial applications where 35A switching capability, safety, and reliability are non-negotiable requirements.
