Military Aviation Aircarft Switch AN24-H 2Pins

Product Overview

The AN24-H 2Pins Aircraft Switch is a rugged, military-grade rocker switch designed for demanding aviation and defense applications. This military rocker switch features a simple 2-pin, single-pole single-throw (SPST) normally open configuration, providing reliable on/off control for lighting, avionics, auxiliary systems, and ground support equipment. Rated for 28V DC / 10A resistive load and capable of switching low-level signals down to 10μA/10mV, the AN24-H delivers excellent contact stability, low resistance (≤50mΩ), and high insulation resistance (>500MΩ). Its sealed construction (IP67 front panel) protects against moisture, dust, and fuel vapors, while the robust rocker actuator provides positive tactile feedback and long mechanical life (50,000+ cycles). As a core product in YM’s aviation switch portfolio – which includes Aircraft Rocker Switches, Aviation Swing Arm Switch, Micro switch, Aviation Button Switch, and Aviation Encoding Switch with Military Grade – the AN24-H delivers uncompromised performance for cockpit panels, weapon control boxes, and field-deployable systems.

Technical Specifications

Electrical Ratings

• Contact configuration: SPST, Normally Open (2 pins)
• Maximum voltage: 28V DC / 115V AC 400Hz
• Current rating (resistive): 10A at 28V DC; 5A at 115V AC 400Hz
• Low level switching capability: 10μA – 50μA, 10mV – 50mV (gold-plated contacts available)
• Initial contact resistance: ≤50mΩ
• Insulation resistance: >500MΩ at 500V DC
• Dielectric strength: 1000Vrms between terminals and case; 500Vrms between open contacts

Mechanical & Environmental

• Mechanical life: 50,000 cycles minimum
• Electrical life (rated load): 25,000 cycles minimum
• Actuator force: 4 – 7 N (rocker travel 25°)
• Sealing: IP67 front panel (splash-proof, dust-tight); optional silicone boot for full immersion
• Operating temperature: -55°C to +85°C
• Vibration resistance: 10g RMS, 10-2000Hz per MIL-STD-810
• Shock: 50g, 11ms half-sine
• Altitude: 50,000 feet (15,240m)
• Weight: ≤20g
• Terminal style: 0.250” quick-connect (standard) or solder lug
• Actuator options: Non-illuminated (standard), LED illuminated (red, green, amber), or incandescent (28V)

Materials & Finishes

• Housing: Glass-filled nylon (UL94 V-0) – flame retardant, impact resistant
• Actuator: Polycarbonate with hard coat (black, white, or custom colors)
• Contacts: Silver-cadmium oxide (standard) or gold-plated (low-level signal)
• Terminals: Brass with tin plating (corrosion resistant)
• Panel seal: Silicone rubber gasket included

All parameters are validated per MIL-PRF-8805 and MIL-STD-202. The AN24-H meets typical cockpit and military vehicle requirements for safety and reliability.

Product Images & Visuals

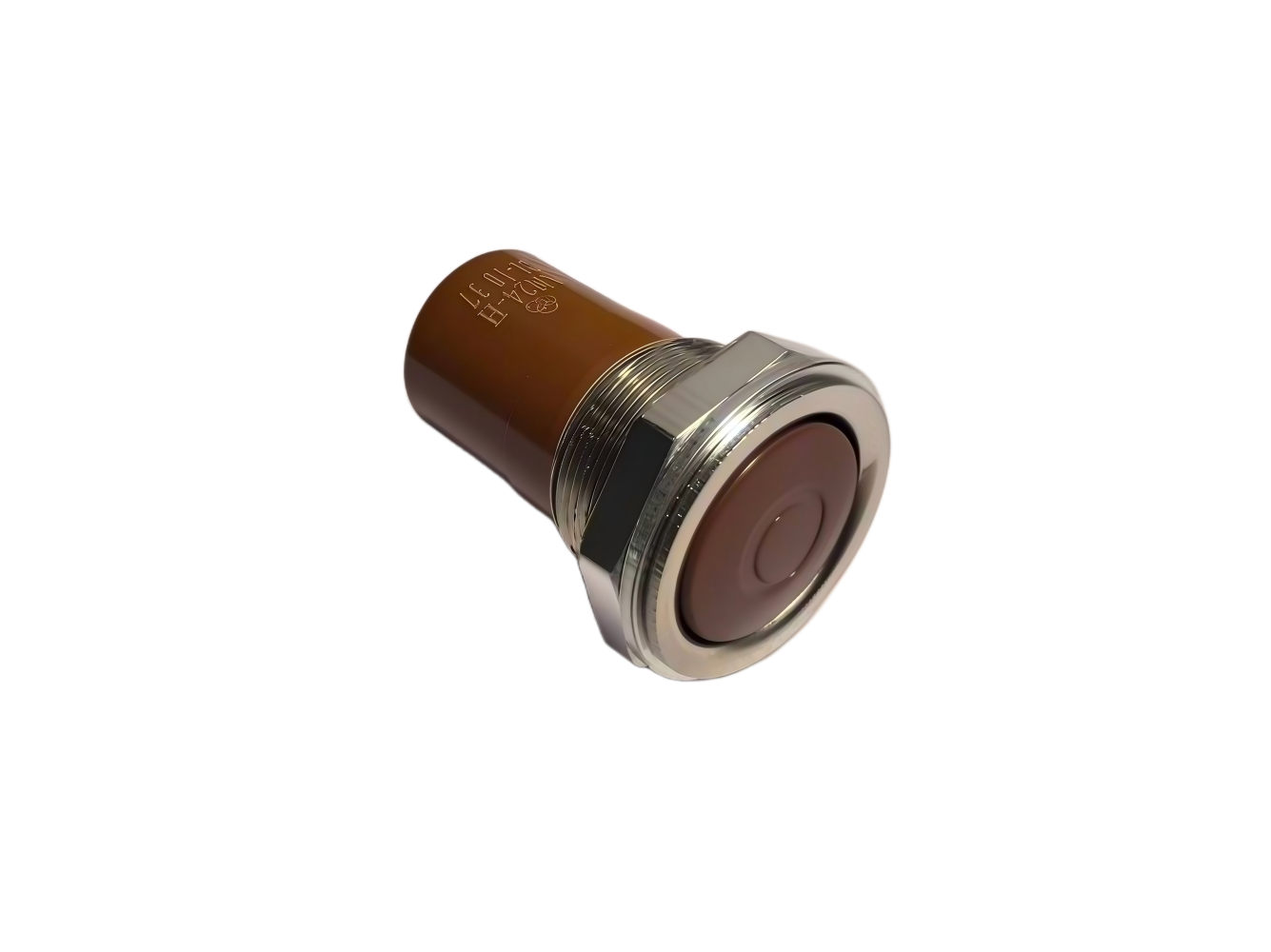

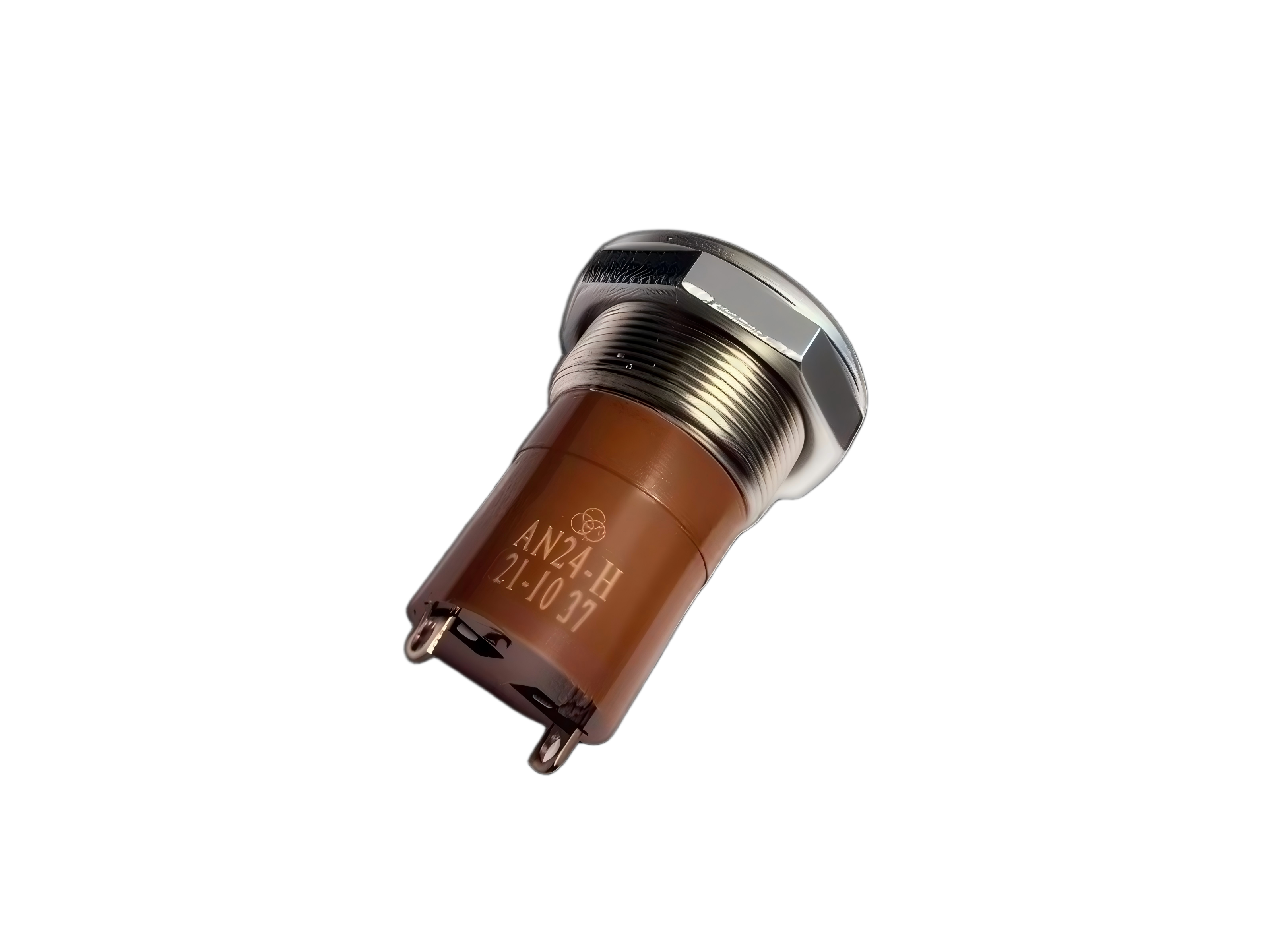

Above: AN24-H series rocker switch (2-pin SPST normally open). Contact YM for dimensional drawings, actuator color options, and IP sealing data.

Key Features & Advantages for Military Aviation

• Military-grade durability: Designed to MIL-PRF-8805, the AN24-H withstands high vibration (10g RMS), shock (50g), and temperature extremes (-55°C to +85°C) – ideal for cockpit and external aircraft mounting.
• Positive tactile feedback: Rocker mechanism provides distinct actuation feel and audible click, reducing pilot error in high-stress environments.
• Sealed construction (IP67): Front panel seal prevents ingress of moisture, dust, and fuel vapors – critical for unpressurized bays and ground support equipment.
• Simple 2-pin SPST NO configuration: Easy to wire as a direct on/off control; compatible with 28V DC aircraft power systems and low-level signal circuits.
• Low contact resistance & high insulation: ≤50mΩ initial resistance and >500MΩ insulation ensure reliable switching of avionics signals and power circuits.
• Optional illumination: LED or incandescent lighting for night operations (NVIS compatible versions available).

YM’s engineering advantage: The AN24-H shares proven sealing and contact technology with our military rocker switches and certified aircraft rocker switches families. For complete panel integration, YM also offers Aviation Rocker Switch with military grade, military grade rotary switches, aviation encoding switch with military grade, and gx Aviation Connector – a one-stop solution for aircraft cockpit and avionics controls.

How to Install & Use the AN24-H Aviation Rocker Switch – Step by Step

1. Select the correct configuration: Confirm that SPST normally open (2-pin) meets your circuit requirement (load on when rocker is pressed down). Verify voltage and current ratings match your load.
2. Panel cutout preparation: Standard cutout size: 21mm x 31mm (for single rocker). Use a panel punch or CNC router for precise hole. Deburr edges.
3. Mounting: Insert the switch from the front of the panel. Secure using the snap-in clips (standard) or mounting ears. No additional hardware needed.
4. Wiring: Connect wires to the two 0.250” quick-connect terminals (or solder lugs). Polarity not required for standard SPST. Use MIL-spec wire (18-20 AWG) and insulated terminals.
5. Sealing (optional): If using a silicone boot seal, stretch it over the actuator before panel insertion. Ensure the boot flange seats flush against the panel.
6. Functional test: Apply power and press the rocker (down = ON). Verify continuity across terminals using a multimeter. For illuminated versions, check LED brightness.
7. Maintenance: Periodically inspect for cracked housing or loose terminals. Clean with mild detergent and damp cloth – do not immerse.

Pro tip for avionics engineers: For NVIS (Night Vision Imaging System) compatibility, specify the “N” option with filtered LED (green or red at 590-670 nm). YM can provide custom legend engraving on the rocker cap (e.g., “ON/OFF”, “MASTER”, “FUEL PUMP”).

Application Scenarios & Key Buyer Benefits

Typical Military & Civil Aviation Uses

• Cockpit control panels: Master power, avionics bus control, auxiliary lighting, and fuel pump override.
• Weapon systems: Armament selection, missile arming (with protective cover), and jettison controls.
• Ground support equipment (GSE): Generator start/stop, air cart blower control, and hydraulic pump switch – durable for field environments.
• Helicopter & UAV ground control stations: Camera power, payload release, and communication switching – lightweight and sealed.
• Military vehicles & naval systems: Interior lighting, intercom selection, and auxiliary power switching.

Direct Value to International Buyers (Defense OEMs, MROs, Panel Builders)

• Enhanced safety & reliability: Positive detent and high insulation prevent accidental actuation and arc-over – meets MIL-STD-1472 human factors requirements.
• Reduced lifecycle cost: Sealed construction and corrosion-resistant terminals eliminate switch failures caused by moisture and dust – lowers spare parts consumption.
• Easy retrofitting: Standard panel cutout and 2-pin terminal spacing allow direct replacement of legacy switches (e.g., Honeywell, Eaton, Carling) – no panel rework.
• Supply chain consolidation: The AN24-H complements YM’s full line of Aircraft Rocker Switches, Aviation Swing Arm Switch, Press Switch, and Protect Switch – one qualified source for all cockpit control needs.

For new aircraft programs, YM offers custom actuator colors, legend engraving, and wire harness assembly. Engineering samples available for qualification testing.

Certifications & Compliance

• MIL-PRF-8805 (switches, sensitive, snap-action, general specification).
• MIL-STD-810G (environmental – temperature, humidity, vibration, shock, salt fog, altitude).
• MIL-STD-202 (test methods for electronic and electrical component parts).
• RTCA/DO-160G (airborne equipment – Category A2, S, and R).
• AS9100D (aerospace quality management).
• RoHS & REACH compliant – full material declaration available.

Each AN24-H switch is 100% tested for contact resistance, dielectric strength, insulation resistance, and mechanical operation. Lot traceability per AS9100 is maintained. First Article Inspection (FAI) reports per AS9102 are provided upon request.

Customization Options

YM supports tailored AN24-H variants for volume OEM orders. Customizations include:

• Illumination: Non-illuminated (standard), LED (red, green, amber, white, blue), incandescent (5V, 14V, 28V), or NVIS compatible.
• Actuator color & marking: Black, white, gray, red, yellow; laser engraved text or symbols (e.g., “ON-OFF”, “ARM”, “START”).
• Sealing level: IP67 front panel (standard), IP68 (with boot), or unsealed (for dry applications).
• Terminal style: 0.250” quick-connect (standard), solder lug, or wire leads (pre-stripped).
• Contact material: Silver-cadmium oxide (standard, 10A), gold-plated (low-level, 1A), or palladium (dry circuit).
• Housing material: Glass-filled nylon (standard) or machined aluminum (EMI shielding).

Our engineering team provides free feasibility analysis and 3D models for integration. Minimum order quantities for custom options apply – contact YM with your specification sheet.

Production Process & Quality Assurance (AS9100D Certified)

YM’s aviation switch production line follows a zero-defect, fully traceable process designed to meet the stringent demands of military and commercial aerospace customers.

• Raw material control: 100% certification of plastic resins, metal stampings, contacts, and wire – traceable to mill test reports and batch certificates.
• Precision molding & stamping: Automated injection molding (UL94 V-0) and high-speed contact stamping with in-process vision inspection.
• Contact riveting & assembly: Precision riveting of silver alloy contacts; dynamic force testing to ensure ≤50mΩ resistance.
• Seal application: Silicone rubber gasket installation and panel seal leak testing per IP67.
• 100% functional test: Automated test system measures contact resistance, insulation resistance (500V DC), dielectric strength (1000V AC), and actuator force.
• Environmental sample testing: Each lot undergoes thermal cycling (-55°C to +85°C, 20 cycles), vibration (10g RMS), and life cycle test (25,000 cycles at rated load).
• Final documentation: Dimensional report, electrical test record, C of C, and FAI (if required) provided with each shipment.

With decades of experience in Military Grade Switch and aviation encoding switch manufacturing, YM has supplied over 500,000 switches to global defense and commercial aviation customers. The AN24-H is built to exceed the reliability expectations of modern cockpit and weapon systems.
