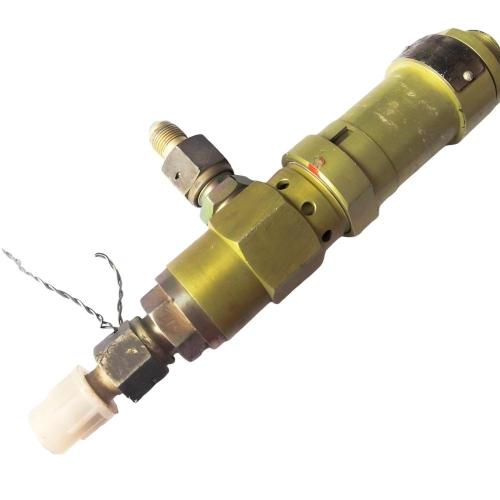

Military Aviation Magnetic Valve QDF-1:

Precision Control for Critical Systems

The YM Military Aviation Magnetic Valve QDF-1 represents the pinnacle of reliability and performance for demanding aerospace and unmanned systems. Engineered for applications in aircraft engines, drone propulsion, and other critical aviation subsystems, this valve ensures flawless fluid control under extreme conditions. Its design prioritizes ultra-fast response, minimal power consumption, and exceptional durability, meeting the stringent standards required for both military and high-end commercial aviation projects[citation:2][citation:7].

Technical Specifications

The following parameters define the high-performance boundaries of the QDF-1 valve, ensuring compatibility and reliability in your system integration.

Key Performance Metrics

Coil Power Consumption: A mere (0.3~0.43)W, enabling efficient operation in power-sensitive avionics systems.
Contact Load & Lifecycle: Rated for resistive load at 1A, 28V DC, guaranteeing a lifecycle of 1x10⁷ operations for long-term reliability.
Time Parameters: Features an ultra-fast action time of ≤4ms and a release time of ≤4ms, crucial for real-time flight control systems.
Dielectric Strength: Withstands 500V_r.m.s. (50Hz) at normal atmospheric pressure and 250V_r.m.s. under low pressure, ensuring safety and insulation integrity.

Environmental & Physical Specifications

Insulation Resistance: Exceeds 500MΩ under normal conditions and remains above 50MΩ after endurance testing.
Sealing & Leakage: Hermetically sealed with a maximum leakage rate of ≤1x10^-3 Pa·cm³/s, essential for fuel, oil, and hydraulic systems.
Weight: Extremely lightweight at <3 grams, minimizing impact on the overall weight budget of aircraft and drones.
Contact Resistance: Maintains a low initial contact resistance of ≤50mΩ, which remains stable and reliable throughout its service life.

Product Features & Core Advantages

The QDF-1 is not just a component; it's a reliability solution. Built with the expertise YM applies to its Military Metal Relay and Polarized Relay lines, it offers distinct advantages for engineers.

Engineering for Extreme Reliability

Military-Grade Durability: Inheriting design principles from our Military Metal Sealing Relay, it offers unmatched resilience against vibration, shock, and thermal cycling.
Precision Magnetic Circuit: Utilizes a polarized latching mechanism similar to advanced Latching Relays, ensuring stable state retention without continuous power and immunity to shock-induced state changes.
Superior Sealing Technology: Features hermetic metal-to-metal or advanced epoxy seals, preventing fluid ingress and ensuring performance in humid or variable pressure environments, a necessity for all Automotive and New Energy Relay applications.

How to Integrate the QDF-1 Valve: A Step-by-Step Guide

System Compatibility Check: Verify that your system's voltage (28V DC standard), fluid medium, and pressure range match the valve's specifications.
Mounting: Securely mount the valve in the designated location, ensuring the fluid flow direction matches the valve's port indicators.
Electrical Connection: Connect the coil terminals to the control circuit. The low power consumption allows integration with standard PCB Signal Relay outputs or microcontroller drivers.
Functional Testing: Apply a control pulse with a width greater than 10ms to actuate the valve. Verify the fast (≤4ms) opening and closing action and check for leaks.
System Integration Test: Integrate the valve into the full system control loop, simulating operational cycles to ensure long-term reliability.

Application Scenarios

The QDF-1 valve is designed for mission-critical fluid control across advanced mobility and industrial platforms.

Unmanned Aerial Systems (Drones): Precisely controls fuel flow in hybrid or gasoline-powered drone engines, and manages coolant or hydraulic systems in larger UAVs.
Aircraft Engine Management: Acts as a reliable shut-off or bypass valve in lubrication, fuel feed, or auxiliary power unit (APU) systems for both commercial and military aircraft[citation:2][citation:7].
New Energy Vehicle Testing: Used in test benches for hydrogen fuel cell systems or advanced battery thermal management, where precise, leak-proof fluid control is paramount.
High-Performance Industrial Automation: Suitable for applications requiring fast-cycle fluid control in semiconductor manufacturing or precision chemical processing equipment.

Value for Procurement Teams & System Integrators

Choosing YM's QDF-1 translates into tangible benefits for your projects and bottom line.

Reduce Total Cost of Ownership (TCO): The exceptional lifecycle (1x10⁷ operations) and durability minimize maintenance needs and replacement costs over the system's lifespan.
Enhance System Performance & Safety: The ultra-fast response time improves system control precision, while the high dielectric strength and robust sealing enhance overall system safety and reliability.
Simplify Design & Sourcing: Its lightweight design aids in meeting strict weight budgets, and sourcing from YM, a specialist in PCB Board Relays to Solid State Relays, streamlines your supply chain for multiple component types.
Mitigate Project Risk: Compliance with international standards and a proven design used in critical applications de-risks your integration process and certification efforts.

Certifications, Compliance & Customization

Commitment to Standards

YM is committed to global quality and safety standards. Our production follows rigorous systems, and our products are designed to meet relevant international aviation and industrial directives. We work with partners to support compliance pathways for key market requirements, ensuring our components integrate smoothly into your certified systems[citation:4][citation:9].

Customization Options (OEM/ODM)

We understand that standard solutions may not fit every unique application. YM offers flexible engineering support to tailor the QDF-1 to your specific needs:

Electrical Customization: Modifications to coil voltage, resistance, or connector types.
Mechanical Adaptation: Custom port threading, mounting brackets, or housing dimensions.
Performance Tuning: Adjustments to response time or pressure ratings for specialized functions.
Full ODM Development: Collaborative development of derivative valves or related fluid control system components, leveraging our core expertise in electromagnetic actuation.

Production & Quality Process

Every QDF-1 valve is born from a controlled, precision-driven manufacturing philosophy.

Precision Machining: Core components are machined in controlled environments using advanced CNC equipment to ensure micrometer-level tolerances.
Automated Coin Winding: The heart of the valve—the coil—is wound with precision automation, derived from advanced techniques, guaranteeing consistency and optimal magnetic performance[citation:5].
Hermetic Sealing: Critical sealing processes are conducted in clean conditions, followed by 100% leak testing to validate the specified ≤10^-3 Pa·cm³/s rate.
Integrated Testing: Each unit undergoes a battery of tests, including response time measurement, dielectric strength verification, and contact resistance checks.
Lifecycle Sampling: Production batches are validated through accelerated lifecycle testing, ensuring the promised 10-million-operation durability is consistently achieved.
