XI'AN YUMU ELECTRONICS TECHNOLOGY CO.,LTD

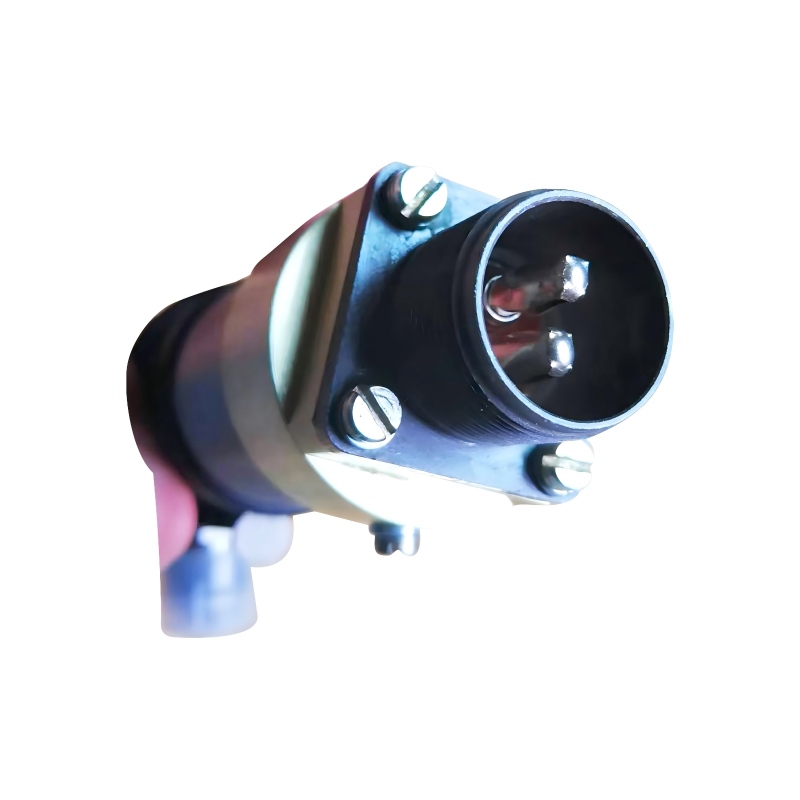

Model No.: QDF-42A
Brand: YM
High-Precision Differential Pressure Transducer for Critical Aircraft and Drone Systems
Manufactured with the same rigorous quality standards as our Military Metal Relay and Polarized Relay product lines, the QDF-42A represents YM's commitment to producing sensing components that deliver exceptional accuracy, reliability, and durability under extreme operational conditions encountered in military and commercial aviation.
Specifically designed for precise differential pressure measurement in extreme aerospace environments. The QDF-42A maintains accuracy during rapid pressure changes, temperature extremes from -55°C to +125°C, and high vibration conditions up to 2000Hz—critical for flight control and engine performance monitoring applications.
Utilizes proprietary silicon piezoresistive MEMS (Micro-Electro-Mechanical Systems) technology with advanced laser-trimmed temperature compensation. This technology provides exceptional long-term stability, minimal hysteresis, and excellent resistance to media contamination compared to traditional sensing technologies.
Features two independent pressure ports for true differential pressure measurement, enabling applications such as airspeed measurement, filter monitoring, flow measurement, and pressure drop analysis across system components.
Incorporates multi-layer hermetic sealing techniques developed through our expertise in Metal Sealing Relay manufacturing. Laser-welded stainless steel construction ensures complete media isolation from electronic components, providing reliable operation in corrosive or conductive media applications.
Weighing under 3 grams, the QDF-42A provides critical differential pressure measurement capabilities without significant weight penalty—essential for aircraft and drone applications where every gram affects performance, range, and fuel efficiency.
With response times under 4 milliseconds, this pressure sensor provides near-instantaneous pressure readings essential for real-time system monitoring and control in critical aviation systems including flight controls, engine management, and air data computers.
Designed to operate accurately in electrically noisy aviation environments, complementing our PCB Signal Relay and Solid State Relay products in integrated electronic systems. Features built-in RFI/EMI protection, filtered outputs, and surge protection up to 100V.
Optional smart sensor versions include built-in diagnostics that monitor sensor health, detect potential failures, and provide early warning of performance degradation. Features include bridge integrity checking, output verification, and temperature compensation monitoring.
Withstands high absolute pressures on both measurement ports (up to 1000 psi), making it suitable for applications where both sides of the differential measurement may experience high pressures, such as hydraulic system monitoring and engine oil pressure differential measurement.
Operating at just 0.3-0.43W, the QDF-42A minimizes its own power draw—particularly valuable for unmanned aerial vehicles (UAVs) and other battery-dependent systems where power efficiency is critical.
Critical for airspeed measurement (pitot-static systems), altitude determination, and angle of attack sensing in both military and commercial aircraft. Provides precise differential pressure measurements between pitot and static ports essential for flight instrumentation and flight control systems.
Essential for monitoring pressure differentials across aircraft engine components including air filters, oil filters, fuel filters, and heat exchangers. Provides critical data for engine health monitoring, performance optimization, and predictive maintenance programs.
Critical for airspeed measurement and altitude control in military and commercial drones. The lightweight design preserves flight endurance while providing essential flight data for autonomous flight control systems and stability augmentation.
Monitors cabin pressure differentials, airflow measurements, and filter conditions in aircraft environmental control and air conditioning systems. Ensures passenger comfort and system efficiency during all phases of flight.
Measures fuel pressure differentials across filters, pumps, and flow meters in aircraft fuel systems. Provides essential data for fuel system health monitoring, leak detection, and performance optimization.
Monitors pressure differentials across hydraulic filters, valves, and actuators in flight control systems, landing gear systems, and utility hydraulic systems. Enables condition-based maintenance and early fault detection.
Provides accurate differential pressure measurement for aircraft maintenance equipment, engine test stands, wind tunnel testing, and ground support systems during maintenance operations and system certification testing.
Used in aircraft development programs for aerodynamic testing, propulsion system development, and system performance evaluation where precise differential pressure measurements are essential for data collection and analysis.
Provides accurate, reliable differential pressure data essential for flight safety systems including airspeed indication, altitude determination, and engine performance monitoring. The high reliability design reduces system failure risks and supports regulatory compliance with aviation authority requirements.
Extended service life (10,000+ pressure cycles), minimal calibration requirements (12-month intervals), and high reliability lower maintenance costs and reduce inventory requirements for spare sensors. The durable construction withstands harsh operating conditions that would degrade less robust sensors.
Accurate differential pressure monitoring enables optimal system operation, improving fuel efficiency, extending component service life, and supporting condition-based maintenance strategies that reduce operational costs and increase aircraft availability.
Standardized electrical and mechanical interfaces compatible with common aviation systems reduce integration time and engineering costs. The dual-port design simplifies installation compared to systems requiring separate sensors and differential calculation electronics.
High-accuracy, stable measurements support condition-based maintenance strategies, reducing unscheduled maintenance events and increasing aircraft availability. The intelligent diagnostics in optional versions provide early warning of developing issues before they affect system performance.
The compact, lightweight design (under 3 grams) helps aircraft manufacturers meet weight targets while providing critical measurement capabilities. The integrated design eliminates the need for separate differential pressure calculation components.
The QDF-42A Military Aviation Pressure Sensor is designed and manufactured to meet or exceed the following standards:
