XI'AN YUMU ELECTRONICS TECHNOLOGY CO.,LTD
Model No.: YSF-1A
Brand: YM

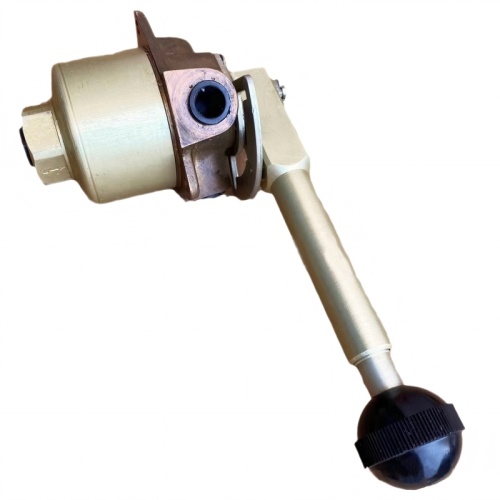

High-Reliability Manual Control Valve for Drone and Aircraft Engine Applications
The YSF-1A Military Aviation Hand Valve is a precision-engineered manual control component designed for reliable fluid and gas flow regulation in demanding aerospace environments. Engineered specifically for aircraft engine systems, drone platforms, and other Aviation Applications, this high-quality valve provides dependable manual control where automated systems are impractical or where redundant manual override is required for safety-critical functions.
Manufactured with the same rigorous quality standards as our Military Metal Relay and Polarized Relay product lines, the YSF-1A represents YM's commitment to producing components that deliver exceptional performance under extreme operational conditions.
Designed to withstand extreme vibration (up to 2000Hz), shock (100g), and temperature fluctuations encountered in military aviation operations. The valve maintains precise control and sealing integrity under conditions that would compromise commercial-grade components.
Features an ergonomic handle design with positive detent positions for accurate flow control. The smooth operating mechanism provides tactile feedback to the operator, enabling precise adjustment even when wearing flight gloves.
Incorporates multi-lip dynamic seals and metal-to-metal static seals developed through our expertise in Metal Sealing Relay technology. This ensures leak-free operation throughout the valve's service life, even after extensive cycling.
Weighing under 3 grams, the YSF-1A provides robust functionality without significant weight penalty—critical for aircraft and drone applications where every gram affects performance, range, and fuel efficiency.
With actuation times under 4 milliseconds, this hand valve responds instantly to operator input, ensuring immediate system response when rapid manual intervention is required.
Constructed from materials specifically selected for resistance to aviation fluids including Skydrol hydraulic fluid, jet fuels, and de-icing compounds, ensuring long-term reliability in harsh chemical environments.
Manual override valves for fuel flow control, oil system regulation, and pneumatic system management in both turbine and piston aircraft engines. Provides emergency manual control when automated systems require maintenance or fail.
Critical for hydraulic and pneumatic control systems in military and commercial drones where manual adjustment capabilities are required for system calibration, testing, and emergency operations.
Manual control valves for test equipment and instrumentation systems during aircraft development and certification programs, providing precise manual adjustment capabilities for data collection.
Manual control components for aircraft refueling systems, hydraulic test carts, and maintenance equipment requiring reliable manual flow control.
Manual override valves for pneumatic braking systems in rail transportation applications, providing backup control capabilities in safety-critical systems.
Provides reliable manual override capabilities for automated systems, enhancing overall platform safety and meeting aviation regulatory requirements for redundant control systems.
Extended service life (10,000+ cycles) and minimal maintenance requirements lower total cost of ownership compared to valves requiring frequent replacement or recalibration.
Standardized design compatible with multiple system types reduces the number of unique valve components required in inventory, similar to the standardization benefits of our Automotive Relay product line.
Easy installation and intuitive operation reduce integration time and training requirements, enabling faster system deployment and reduced downtime during maintenance operations.
The YSF-1A Military Aviation Hand Valve is designed and manufactured to meet or exceed the following standards:
All materials are certified for aviation use with full traceability documentation available for quality audits and regulatory compliance verification.
The YSF-1A is manufactured in YM's temperature-controlled production facilities using CNC machining centers that ensure consistent dimensional accuracy and surface finish across production batches. Our manufacturing process incorporates statistical process control to maintain tight tolerances.
Every production batch undergoes rigorous testing:
Our AS9100-certified quality system ensures consistent quality through documented procedures, regular internal audits, supplier quality management, and continuous improvement processes. All manufacturing processes are fully documented with complete traceability.
Confirm that the YSF-1A is compatible with your system's pressure rating, temperature range, and fluid media. Verify port thread compatibility and required clearance for handle operation.
Ensure all system components are clean and free from contamination. Use appropriate thread sealant or tape as specified for your application. For systems incorporating PCB Signal Relay components, ensure proper electrical isolation.
Install the valve using appropriate torque values for your specific port configuration. Avoid overtightening which can damage sealing surfaces. Ensure proper alignment to avoid stress on valve body.
Connect the valve to your system using appropriate fittings and tubing. For systems with associated electrical components, ensure proper wiring and connection per system specifications.
Conduct system pressure tests and functional verification. Cycle the valve through its full range of motion to ensure smooth operation and verify no leakage at all connection points.
Under standard operating conditions, the YSF-1A is designed for a minimum service life of 5,000 flight hours or 10,000 manual cycles, whichever comes first. Many installations exceed these minimum expectations in field applications.
YM provides comprehensive support for the YSF-1A Military Aviation Hand Valve:
