Aircraft Hydraulic Check Valve YXF-8

Product Overview

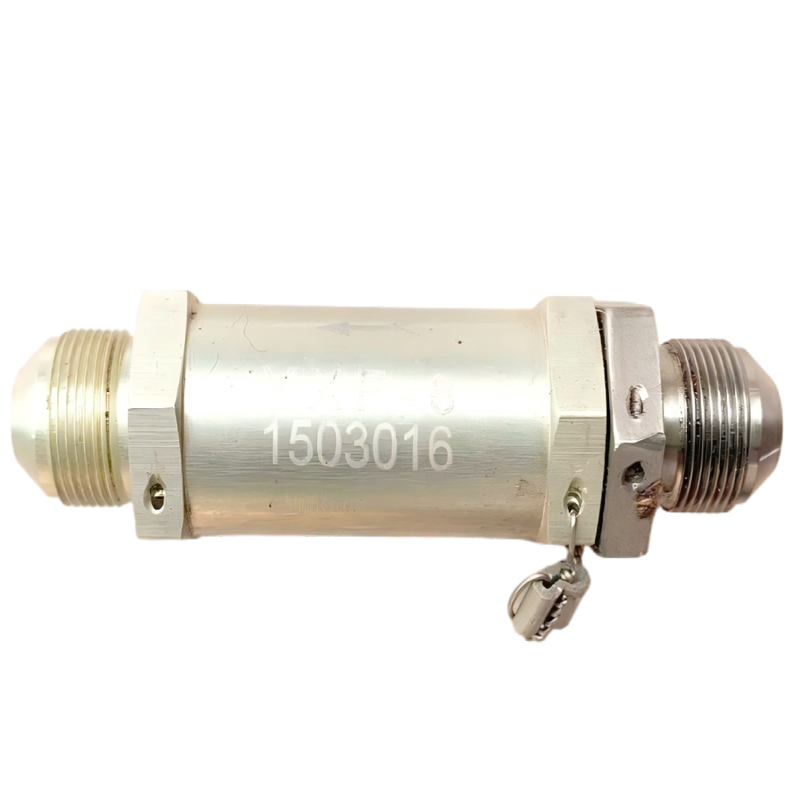

The YXF-8 Aircraft Hydraulic Check Valve is a precision-engineered, one-way flow control device designed for high-pressure hydraulic systems in military and commercial aircraft. It allows free flow in one direction while providing bubble-tight shut-off in the reverse direction, preventing backflow and protecting sensitive components such as pumps, actuators, and servo valves. As a critical element in YM's aerospace fluid control portfolio—alongside the Cold Air Solenoid Valve QDF-42A, Aviation Hand Valve YSF-1A, and Hydraulic Filter MQL-5 15MPA—the YXF-8 delivers reliable, maintenance-free operation in extreme flight environments.

Technical Specifications

• Model: YXF-8 Aircraft Hydraulic Check Valve
• Type: Poppet-style, spring-loaded check valve
• Body Material: Corrosion-resistant stainless steel (17-4 PH) or anodized aluminum
• Seal Material: Fluorocarbon (FKM) / PTFE with backup rings
• Port Size: 8mm (nominal) – compatible with MS33656 or AN fittings (adaptable)
• Maximum Operating Pressure: 3,000 psi (20.7 MPa) / 4,000 psi burst
• Cracking Pressure: 0.5 psi (0.034 bar) ± 20% (standard) – custom values available
• Reseal Pressure: 0.2 psi minimum
• Flow Capacity (Cv): 1.2 (full open)
• Pressure Drop at Rated Flow: ≤ 15 psi @ 5 GPM (MIL-H-83282 fluid)
• Internal Leakage (Reverse): Zero detectable (bubble-tight) per MIL-V-25663
• External Leakage: ≤ 1.0 × 10⁻³ Pa·cm³/s (helium leak test)
• Operating Temperature: -54°C to +135°C (MIL-STD-810)
• Vibration & Shock: MIL-STD-810, Method 514.7 (high-intensity random)
• Cycle Life: 100,000 mechanical cycles minimum
• Weight: ≤ 180 grams (aluminum version) / ≤ 280 grams (stainless steel)
• Compatibility: MIL-PRF-83282, MIL-PRF-5606, MIL-PRF-87257 hydraulic fluids

Complete dimensional drawings, flow vs. pressure drop curves, and installation torque specifications available in the technical datasheet.

Product Features & Competitive Advantages

1. Zero Reverse Leakage: Precision-lapped poppet and seat provide bubble-tight shut-off, protecting upstream components like hydraulic pressure sensors and pumps from damaging backflow.
2. Fast, Reliable Sealing Response: Spring-loaded poppet ensures immediate resealing upon flow reversal, preventing hydraulic hammer and system instability.
3. Military-Grade Durability: Hardened stainless steel or anodized aluminum construction withstands high-pressure spikes, contamination, and extreme temperatures – proven in combat aircraft hydraulic systems.
4. Low Pressure Drop: Optimized flow path minimizes energy loss, improving overall hydraulic system efficiency when used in conjunction with components like Aviation Temperature Sensor ZWH-2 for thermal monitoring.
5. Compact & Lightweight: Space-saving inline design with weight under 180 grams supports aircraft weight reduction goals without compromising structural integrity.
6. No Maintenance Required: Hermetically sealed internal components eliminate field adjustments or repairs, reducing lifecycle costs.

Installation & Integration Steps

1. Pre-Installation Inspection: Inspect valve ports, body, and sealing surfaces for damage. Verify arrow marking indicates correct flow direction (→).
2. System Contamination Check: Ensure hydraulic fluid is clean (ISO 4406 ≤ 14/12/9) to prevent debris from lodging on the seat.
3. Mounting & Connection: Install using appropriate flareless or flare fittings. Apply torque per fitting manufacturer's specification – do not over-torque the valve body.
4. Flow Direction Verification: Confirm that the arrow on the valve body points from the pressure source toward the downstream actuator or component.
5. Functional Test: Pressurize the system and check for external leakage. Verify that flow passes freely in the forward direction (pressure drop within spec). Apply reverse pressure and confirm zero backflow.
6. Integration with Sensors: For systems requiring real-time pressure monitoring, install a pressure transducer hydraulic downstream of the check valve to detect any abnormal pressure decay.
7. System Cycling Test: Perform several actuation cycles of the hydraulic system (e.g., landing gear retraction) to ensure the check valve responds correctly without chatter or sticking.

Application Scenarios

The YXF-8 check valve is deployed in hydraulic circuits where backflow could cause damage, loss of pressure, or operational failure:

• Aircraft Landing Gear Systems: Prevents reverse flow when multiple hydraulic sources (main pump, hand pump, emergency system) are used.
• Flight Control Actuators (Ailerons, Elevators, Rudder): Isolates actuator return lines to prevent load transfer between surfaces.
• Brake Systems: Maintains brake pressure after pedal release and prevents fluid backflow to the reservoir.
• Hydraulic Power Packs (Engine-Driven Pumps & Electric Pumps): Allows parallel pump operation without back-driving idle pumps.
• Cargo Door & Ram Air Turbine (RAT) Actuation: Ensures one-way flow for reliable deployment and stowage.
• Ground Support Equipment (GSE): Hydraulic test stands using Electronic Horn for warning signals; check valves protect pumps during sudden shutoff.
• Helicopter Rotor Systems & Utility Hydraulics: Prevents backflow when switching between engine-driven and auxiliary pumps.

Value Proposition for Procurement Teams

• Enhanced System Reliability: Zero internal leakage prevents unintended actuator movement or pressure loss, directly improving flight safety and mission completion rates.
• Reduced Lifecycle Costs: 100,000-cycle durability and no maintenance requirements lower total ownership cost compared to inferior valves that require periodic seal replacement.
• Supply Chain Simplification: Source YXF-8 alongside complementary components such as Aviation Valve T-5T and Oxygen value QF-21A from a single trusted manufacturer.
• Accelerated Certification: Designed to meet MIL-V-25663, MIL-STD-810, and AS9100 quality standards, providing ready-to-use compliance data for your aircraft or subsystem approval.
• Technical Documentation Package: Includes material certifications, test reports, 3D CAD models, and integration guidelines for seamless engineering adoption.

Certifications & Compliance

The YXF-8 aircraft hydraulic check valve is manufactured to meet or exceed the following stringent standards:

• MIL-V-25663 – Valve, Check, Hydraulic, General Specification for Aircraft.
• MIL-STD-810 – Environmental test methods (vibration, shock, temperature, altitude, humidity).
• MIL-STD-461 – EMI/EMC compliance (for installations near aviation light sensor or aoa sensor aviation).
• AS9100D – Aerospace quality management system.
• REACH / RoHS – Material compliance for international markets.

Each valve is serialized and supplied with a certificate of conformance, hydrostatic test report, and material traceability documentation.

Customization Options

YM offers extensive customization for the YXF-8 series to meet unique aircraft or system requirements, leveraging our engineering expertise in fluid control components:

• Cracking Pressure: Adjustable from 0.2 psi to 15 psi (e.g., for pilot-operated or low-flow applications).
• Port Configurations: Custom thread types (NPT, BSPP, MS, AN), sizes (4mm to 12mm), and orientations (inline, right-angle, manifold mount).
• Body Materials: Aluminum (lightweight), 316 stainless steel (corrosive fluids), or titanium (ultra-high strength).
• Seal Materials: Nitrile (NBR), ethylene-propylene (EPDM), or perfluoroelastomer (FFKM) for aggressive fluids or extreme temperatures.
• Flow Path Design: High-flow (low ΔP) or restrictive (metering) configurations.
• Integrated Position Sensing: Add a micro-switch or industrial pressure transducer to indicate valve state (open/closed).

Production Process & Quality Assurance

1. Raw Material Certification: Incoming materials (bar stock, forgings, seals) are verified for chemical composition and mechanical properties per AMS or ASTM standards.
2. Precision Machining: CNC turning and milling achieve tolerances of ±0.005mm on critical sealing surfaces (poppet and seat).
3. Heat Treatment & Surface Finishing: Stainless steel parts undergo passivation; aluminum parts receive hard anodizing (Type III) per MIL-A-8625.
4. Lapping & Assembly: Poppet and seat are precision-lapped to achieve mirror finish (Ra ≤ 0.1 μm). Assembly in clean-room environment (ISO Class 8).
5. 100% Hydrostatic & Leak Testing: Each valve is proof-tested at 1.5× rated pressure and leak-tested in reverse direction using helium mass spectrometry (≤ 10⁻³ Pa·cm³/s).
6. Cracking Pressure Calibration: Automated test stands verify cracking and reseal pressures at room temperature and at -54°C / +135°C for sample batches.
7. Cycle Life Validation: Sample units undergo 100,000 mechanical cycles with MIL-PRF-83282 fluid at rated pressure and temperature.
8. Environmental Stress Screening: Random vibration, thermal shock, and altitude testing per MIL-STD-810 on first articles and periodic production samples.
9. Final Inspection & Traceability: Dimensional, visual, and functional inspection. Each valve receives a unique serial number laser-etched on the body, with full traceability to production batch and test records.
