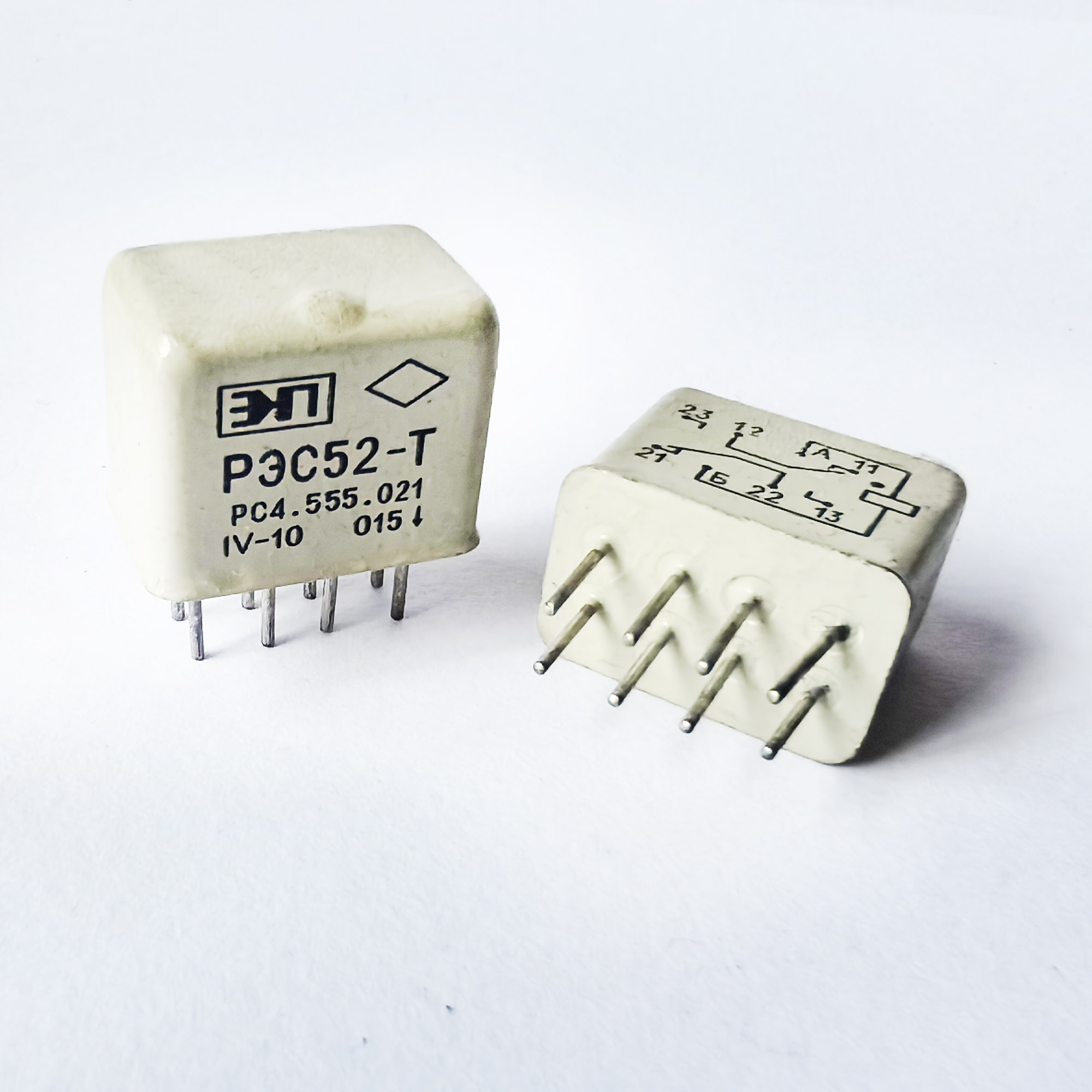

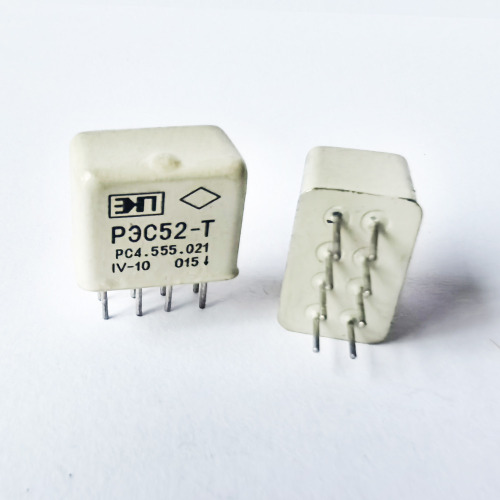

High Performance Military Metal Relay P3C52-T PC4.555.021
Product Overview
The P3C52-T PC4.555.021 is a premium Military Aviation DC Metal Relay designed for mission-critical applications where reliability, durability, and environmental resilience are paramount. As a specialized variant within the P3C series, this component combines proven heritage design with modern manufacturing excellence to deliver superior performance in demanding military and aerospace environments. Engineered for applications including Aircraft Engine controls, drone flight systems, and military communications equipment, it represents the gold standard in Military Metal Sealing Relay technology.
Product Features & Advantages
The P3C52-T delivers exceptional performance through a combination of advanced design features and rigorous manufacturing standards, offering distinct advantages over both standard commercial relays and aging original components:
- Enhanced T-Version Design: The "-T" designation indicates specialized thermal and performance enhancements for extended operational reliability.
- Military-Grade Hermetic Sealing: Advanced metal-can sealing technology provides complete environmental protection against moisture, dust, salt spray, and chemical contaminants.
- Extreme Environment Resilience: Engineered to withstand severe vibration (30G+), mechanical shock, and temperature extremes from -65°C to +125°C.
- Superior Electrical Performance: Low contact resistance (≤50mΩ initial), fast switching (≤4ms action/release), and stable operation over extended life cycles.
- Dual-Mode Operational Capability: Reliably handles both power switching loads (1A at 28V DC) and sensitive signal-level circuits (10-50µA at 10-50mV).
- Optimized Power Efficiency: Low coil power consumption (0.3-0.43W) reduces system thermal load and power requirements.
- Lightweight Construction: Weight under 3 grams minimizes impact on system weight budgets in aerospace applications.
This relay is part of YM's comprehensive Military Electromagnetic Relay portfolio, manufactured to the same exacting standards as our Aviation Latching Relay and Sealed magnetic Latching Relay product lines.
Technical Specifications
Complete performance parameters for engineering evaluation and system integration:
Electrical Specifications
- Rated Coil Voltage: 27V DC (Standard military/aviation voltage)
- Contact Configuration: P3C52-T series standard configuration
- Contact Rating:
- Standard Resistive Load: 1A at 28V DC (minimum 100,000 cycles)
- Low-Level Signal Load: 10-50 µA at 10-50 mV
- Coil Power Consumption: 0.3W to 0.43W
- Contact Resistance:
- Initial Value: ≤ 50 mΩ
- After Life Testing: ≤ 200 mΩ
- Insulation Resistance: > 500 MΩ (initial measurement)
Performance Characteristics
- Switching Speed:
- Action Time: ≤ 4 milliseconds
- Release Time: ≤ 4 milliseconds
- Operational Life: Minimum 100,000 cycles at rated load
- Dielectric Strength:
- Normal Atmospheric Conditions: 500 Vr.m.s., 50Hz
- Low Pressure/High Altitude: 250 Vr.m.s., 50Hz
- Incentive Pulse Width: 10 to 50 milliseconds
Physical & Environmental Specifications
- Sealing Performance: Leakage Rate ≤ 1.0 × 10⁻³ Pa·cm³/s
- Weight: < 3 grams
- Operating Temperature Range: -65°C to +125°C (standard military grade)
- Package Type: Military-standard metal enclosure with PC4.555.021 specification
System Integration Guidelines
For optimal performance in military and aerospace systems, follow these implementation steps:
- Application Requirements Analysis: Thoroughly analyze operational requirements including load characteristics, environmental conditions, and duty cycles.
- Circuit Design Verification: Ensure coil drive circuits provide appropriate voltage and current with proper protection elements (flyback diodes/TVS).
- PCB Layout Considerations: Design with adequate trace widths, thermal management, and clearance for high-reliability applications.
- Thermal Management Planning: Account for heat dissipation requirements, especially in enclosed or high-temperature environments.
- Environmental Protection Verification: Ensure external sealing complements the relay's internal hermetic protection.
- Comprehensive Testing: Implement testing protocols that simulate actual operating conditions and validate performance.
Application Scenarios
The P3C52-T PC4.555.021 serves critical functions across multiple defense and aerospace platforms:
- Military Aviation Systems: Flight control interfaces, navigation system switching, cockpit instrumentation, and weapon system controls in fixed-wing and rotary aircraft.
- Unmanned Aerial Systems: Power distribution, payload control, and flight system switching in military and surveillance drones.
- Aircraft Engine Management: Control and monitoring circuits within Aircraft Engine systems and associated avionics.
- Military Communications Equipment: Switching functions in encrypted communication systems, radar interfaces, and electronic warfare platforms.
- Ground Military Vehicles: Electronic systems in armored vehicles, command posts, and mobile military equipment.
- High-Reliability Industrial: Critical industrial applications requiring military-grade reliability, distinct from standard Industrial Power Relay solutions.
Value Proposition for Defense Procurement
The P3C52-T delivers significant strategic and operational value:
- Enhanced Mission Reliability: Military-grade construction and testing reduce system failures in critical applications.
- Extended System Lifecycle: Enables continued operation and modernization of legacy military systems.
- Reduced Total Ownership Cost: Improved reliability and extended service life lower maintenance and replacement costs.
- Supply Chain Security: Provides stable, qualified sourcing for critical military components.
- Performance Documentation: Comprehensive technical data supports system qualification and certification processes.
- Technical Support Access: Full manufacturer engineering support for integration and troubleshooting.
Certifications & Compliance
The P3C52-T is designed and manufactured to meet rigorous international standards:
- Performance compliant with relevant sections of MIL-PRF-6106 for established reliability electromagnetic relays
- Environmental testing per MIL-STD-810 methods for vibration, shock, and temperature extremes
- Materials compliance with RoHS and REACH environmental directives
- Manufacturing under quality management systems suitable for aerospace and defense applications
- Traceability and documentation supporting military system qualification requirements
- Military Aviation DC Metal Relay P3C52-T PC4.555.021
- High Performance Military Metal Relay P3C52-T PC4.555.021
- Relay P3C52 T PC4 555 021 High Performance Military Grade
- Robust Metal 27V Relay P3C52-T PC4.555.021 for Military Use
- Metal Relay Designed for Aviation and Military Applications
- Aviation Relay with Military Grade Metal Design
- Military Aviation Relay for Drone,Aircraft Engine PCB Board
- High quality Aviation relay for Engine,Train,Plane maintain
- P3C52-T PC4.555.021
Customization Options
YM offers comprehensive customization capabilities for specific program requirements:
- Voltage Variants: Custom coil voltages tailored to specific system architectures
- Contact Configuration Modifications: Adjusted contact arrangements for specialized switching requirements
- Enhanced Environmental Performance: Special sealing or material treatments for extreme operating conditions
- Additional Testing & Screening: Custom testing protocols including extended burn-in, thermal cycling, or vibration testing
- Documentation Packages: Tailored technical data packages for specific qualification processes
Production Process & Quality Assurance
Each P3C52-T relay undergoes a rigorous manufacturing and testing regimen:
- Material Qualification & Traceability: All materials sourced from qualified suppliers with full documentation and traceability.
- Precision Component Manufacturing: Critical components produced to exacting tolerances using automated processes.
- Controlled Environment Assembly: Assembly conducted in cleanroom conditions to prevent contamination.
- Advanced Hermetic Sealing: State-of-the-art laser welding techniques ensure specified environmental protection levels.
- Comprehensive Testing Protocol: 100% electrical testing plus environmental and life testing on sample lots.
- Final Quality Verification: Complete inspection, verification, and documentation before release.
Frequently Asked Questions (FAQ)
Q1: What does the "-T" designation indicate in P3C52-T?
A: The "-T" designation typically indicates thermal or temperature-enhanced versions with improved performance characteristics for extended temperature ranges or specific environmental conditions. This variant offers enhanced reliability in demanding thermal environments.
Q2: How does the P3C52-T compare to standard P3C52 versions?
A: The P3C52-T offers enhanced thermal performance and reliability characteristics compared to standard versions. It undergoes additional testing and may feature material or design optimizations for extended temperature operation and improved longevity.
Q3: Can this relay be used as a direct replacement for existing PC4.555.021 components?
A: Yes, the P3C52-T PC4.555.021 is designed as a form-fit-function replacement for existing PC4.555.021 specified components, with potential performance enhancements due to modern manufacturing and materials.
Q4: What support is available for system qualification with this component?
A: We provide comprehensive technical data packages, test reports, material certifications, and application notes to support qualification processes for military and aerospace systems.
Q5: How does this Military Relay compare to Solid State Relay technology?
A: The P3C52-T offers advantages in high-current applications with lower conduction losses, true galvanic isolation, and inherent surge tolerance. Solid State Relays excel in high-speed switching and long life for frequent cycling. The choice depends on specific application requirements.
Q6: What are typical lead times for military-grade production quantities?
A: Standard lead times for qualified military-grade components range from 12-20 weeks, accounting for rigorous testing and documentation requirements. Expedited options may be available for urgent defense requirements.
