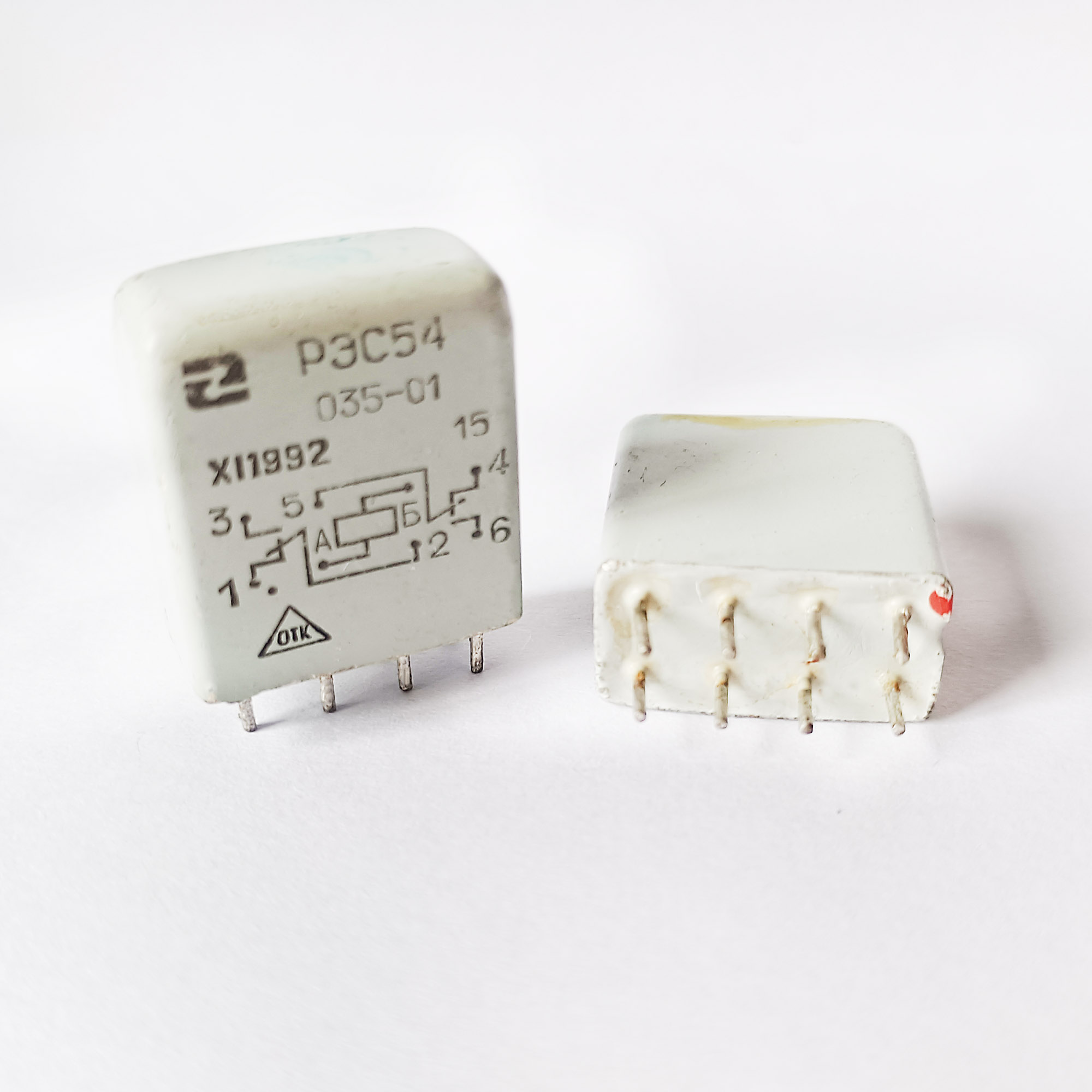

Military DPDT Metal DC Relay P3C54 035-01 27V High Performance Component
Product Overview
The P3C54 035-01 Military DPDT Metal DC Relay represents advanced Russian Military Relay technology optimized for high-performance applications in modern defense systems and aerospace platforms. As a precision-engineered Military Metal Sealing Relay featuring authentic DPDT (Double Pole Double Throw) configuration, this component delivers exceptional switching performance for sophisticated electronic systems requiring reliable signal routing, power management, and control circuit isolation in demanding operational environments.

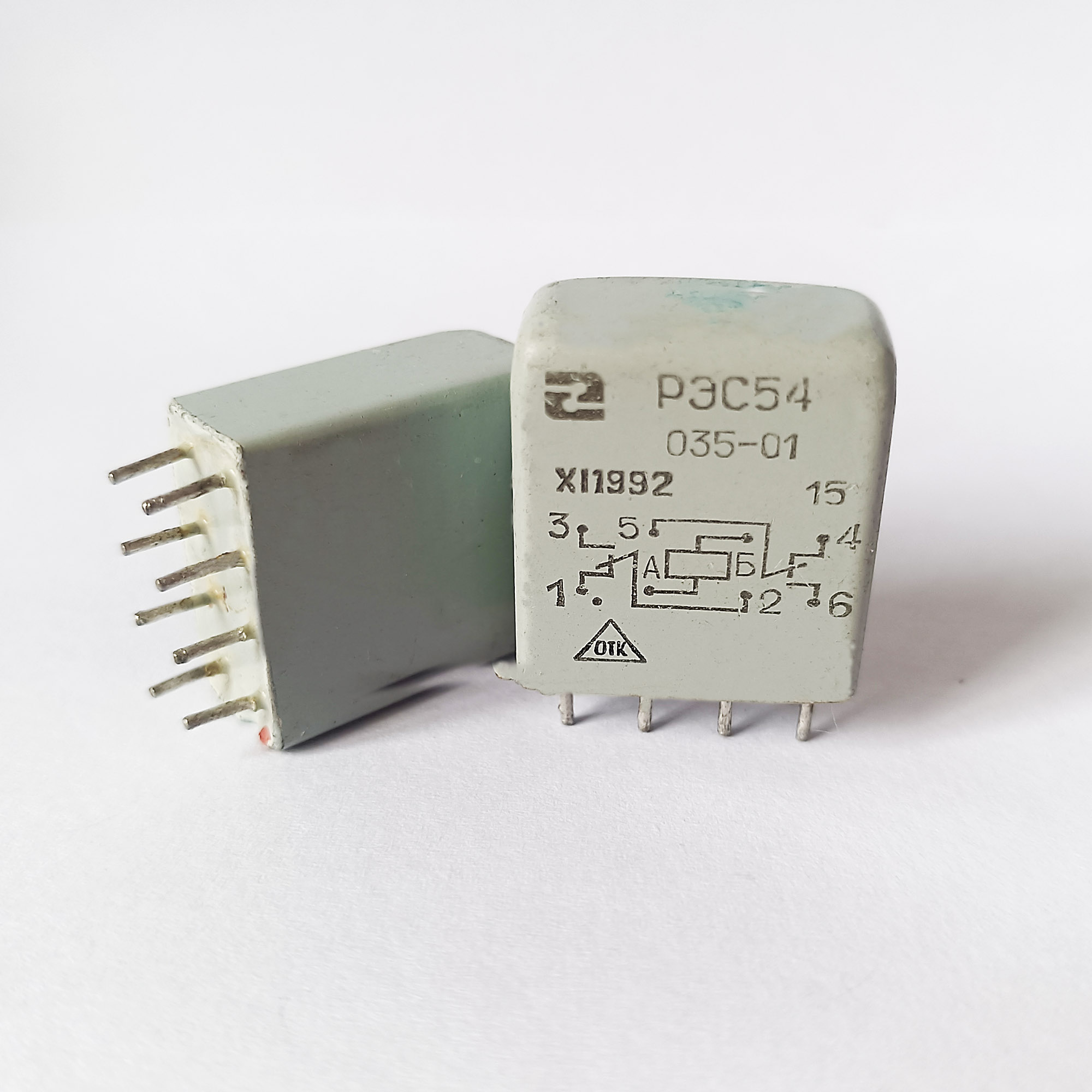

Technical Specifications
Advanced Electrical Parameters
- Military Designation: P3C54 035-01 (High Performance Variant)
- Configuration: True DPDT (Double Pole Double Throw)
- Operating Voltage: 27V DC Standard
- Coil Power Efficiency: 0.3-0.43W Optimized Design
- Contact Rating: 1A at 28V DC, Resistive Load
High-Performance Characteristics
- Contact Resistance: Initial ≤50mΩ; Post-endurance ≤200mΩ
- Precision Signal Handling: (10-50)μA at (10-50)mV capability
- Extended Operational Life: 1×10⁶ cycles at rated specifications
- High-Speed Switching: Operate Time ≤4ms; Release Time ≤4ms
- Control Signal Requirements: 10-50ms minimum pulse width
Environmental & Physical Specifications
- Dielectric Performance: 500V RMS (standard); 250V RMS (high altitude)
- Insulation Integrity: >500MΩ (initial); >50MΩ (post-durability)
- Weight Optimization: <3 grams (High-Performance Lightweight)
- Hermetic Seal Performance: Leakage rate ≤10⁻³ Pa·cm³/s
- Extended Temperature Operation: -55°C to +125°C full range
- Vibration Resistance: MIL-STD-202 Method 204 compliance
Product Features & Advantages
Authentic DPDT Configuration Advantage
The P3C54 035-01 features true DPDT switching capability, providing simultaneous control of two completely isolated circuits. This advanced configuration surpasses standard Aviation DC Relays and basic PCB Board Relays, offering design flexibility for complex control systems similar to specialized DPDT 8Pin 27V Relay designs but with Russian military specification compliance.
High-Performance Switching Technology
Incorporating advanced contact materials and optimized magnetic circuit design, this relay delivers superior switching performance with minimal contact bounce and consistent operation across millions of cycles. The design exceeds the performance of standard Automotive Relays and many Industrial Power Relays through precision engineering.
Enhanced Reliability for Critical Systems
Engineered specifically for high-reliability applications, the P3C54 035-01 incorporates redundancy features and failure-mode prevention technologies. The enhanced hermetic sealing provides superior environmental protection compared to standard PCB Signal Relays and commercial relay designs.
YUMU Electronics Performance Optimization
Our manufacturing process incorporates performance-enhancing techniques developed through expertise with Military Electromagnetic Relays and Sealed Magnetic Latching Relays. Each P3C54 035-01 undergoes extended performance testing to validate its high-performance characteristics.
Application Scenarios
Advanced Military Electronics
- Digital Flight Control Systems: Modern aircraft fly-by-wire and control systems
- Weapon System Integration: Advanced targeting and fire control electronics
- Electronic Warfare Systems: Signal processing and countermeasure control
- Military Communication Networks: Secure communication switching and routing
Modern Aerospace Platforms
- Next-Generation UAV/Drones: Advanced unmanned system control circuits
- Satellite System Electronics: Spacecraft power management and control
- Aircraft Avionics Upgrades: Modernization of legacy aircraft systems
- Flight Test Instrumentation: Data acquisition and control systems
High-Performance Industrial Systems
- Industrial Automation Control: Complex manufacturing control systems
- Medical Equipment Electronics: High-reliability diagnostic and treatment systems
- Energy Management Systems: Smart grid and power distribution control
- Test & Measurement Equipment: Precision laboratory and field instrumentation
Installation & Integration Guidelines
High-Performance Installation Procedure
- System Compatibility Analysis: Verify DPDT configuration matches design requirements
- Performance Environment Assessment: Ensure installation conditions support high-performance operation
- ESD Protection Implementation: Comprehensive electrostatic discharge protection procedures
- Precision Mounting: Secure using calibrated torque tools and proper mounting hardware
- DPDT Circuit Integration: Connect both pole circuits following detailed wiring diagrams
- Performance Validation Testing: Test each pole independently and in coordinated operation
- System Integration Verification: Validate full system operation with relay installed
- Documentation Completion: Record installation details and performance verification
Performance Optimization Recommendations
- Implement proper signal conditioning for sensitive control circuits
- Use High-Quality Connectors and wiring for optimal signal integrity
- Consider thermal management for high-duty-cycle applications
- Follow Russian military technical standards for specific applications
- Schedule preventive maintenance based on operational intensity
Procurement Value Proposition
System Design Advantages
- Design Flexibility: DPDT configuration enables complex control circuit designs
- Performance Enhancement: High-speed switching improves system response times
- Reliability Improvement: Reduced failure rates in critical applications
- Space Optimization: DPDT functionality in compact footprint reduces component count
Operational & Maintenance Benefits
- Extended Service Life: High-performance design reduces replacement frequency
- Reduced System Complexity: Single DPDT relay replaces multiple SPST components
- Enhanced System Performance: Improved signal integrity and switching reliability
- Technical Support Availability: Comprehensive engineering support for complex applications
Standards Compliance & Quality Assurance
The P3C54 035-01 meets rigorous standards for high-performance military components:
- Russian Military High-Performance Specifications
- DPDT Configuration Performance Standards
- ISO 9001:2015 Quality Management System
- Environmental Testing per MIL-STD-810
- Electrical Performance to Military Relay Standards
- 100% Performance Verification Testing
YUMU Electronics applies high-performance quality controls developed through manufacturing Polarized Relay JH-2S, New Energy Relays, and other advanced components for demanding applications.
Customization & Specialized Configurations
Available customization for specific high-performance requirements:
- Enhanced Performance Variants: Optimized for specific switching requirements
- Specialized Testing Protocols: Custom testing for unique performance profiles
- Application-Specific Marking: Custom identification for specific projects or systems
- Extended Temperature Versions: Enhanced performance at temperature extremes
- Documentation Packages: Tailored technical data for complex system integration
Our engineering expertise includes developing custom DPDT solutions for specialized applications, leveraging experience from producing Solid State Relays and Intermediate Power Relays for high-performance systems.
High-Performance Production Process
Advanced Manufacturing Methodology
Each P3C54 035-01 undergoes specialized manufacturing for high-performance applications:
- Premium Material Selection: High-performance materials exceeding standard specifications
- Precision Component Fabrication: Advanced machining and forming for DPDT configuration
- Performance-Optimized Assembly: Assembly processes focused on performance consistency
- Enhanced Sealing Technology: Sealing processes verified for high-reliability applications
- Comprehensive Performance Testing: Extended testing beyond standard requirements
- High-Performance Verification: Final validation of all performance characteristics
Performance Quality Assurance
- Statistical process control with performance monitoring
- Extended life testing for performance validation
- Environmental testing across full operational envelope
- DPDT configuration performance verification
- Signal integrity testing for sensitive applications
- Continuous improvement based on performance data
- Metal Sealed Military Relay
- Military Metal Relay P3C54 035-01 27V High Performance Component
- Durable Military DPDT Metal Relay P3C54 035-01 Model
- Aviation Metal Relay P3C54 035 01 for Drone PCB Board
-
- Aviation Relay for Drone,Aircraft Engine
- High quality Aviation Engine,Train,Plane.
- P3C54 035-01
Frequently Asked Questions
What advantages does the DPDT configuration provide over standard relays?
The DPDT (Double Pole Double Throw) configuration allows simultaneous control of two completely independent circuits with a single relay, providing design flexibility, space savings, and synchronized switching that's superior to using multiple SPST relays or standard PCB Board Relays.
How does this High-Performance Relay differ from standard Russian military relays?
The P3C54 035-01 incorporates enhanced design features including improved contact materials for better switching performance, optimized magnetic circuits for faster response, and enhanced sealing technology for superior environmental protection compared to standard Russian military relays.
What testing validates the high-performance claims?
Each production lot undergoes extended performance testing including accelerated life cycling, high-speed switching endurance testing, signal integrity verification, and environmental testing across extended temperature and vibration ranges to validate performance claims.
Can this relay handle mixed signal applications (power and control signals)?
Yes, the DPDT configuration is ideal for mixed signal applications, allowing one pole to handle power switching while the other manages control signals. However, proper circuit design and signal conditioning should be implemented for optimal performance.
What support is available for integrating DPDT relays into new designs?
Our technical team provides comprehensive support including application guidance for DPDT circuit design, performance modeling for specific applications, integration testing support, and custom configuration recommendations for optimal system performance.
