Hydraulic 2 pole breaker B3E1 100A 80VDC

Product Overview

YM presents a versatile lineup of precision hydraulic-magnetic circuit breakers, including the single-phase RSB1-100-A2-100 (100A, 250V) and the multi-pole B3 series (100A-250A, 80VDC). Engineered for reliability in critical DC and AC applications, these breakers offer robust protection for aviation, rail, and industrial systems. They are essential components for ensuring the safety and durability of complex electrical panels, such as an 8 circuit breaker panel, and for protecting sensitive equipment like monarch dc hydraulic power units. Our solutions provide a reliable alternative for OEMs and system integrators seeking high-performance circuit protection.

Product Images



Technical Specifications

Model Range: RSB1 Series (AC/DC) & B3 Series (DC) | Current Ratings: 100A, 250A | Voltage: Up to 250V AC/DC, 80VDC

• Coil Power Consumption: Low energy draw, between 0.3W and 0.43W.
• Contact Load & Electrical Life: High endurance with 100,000 operations at rated conditions (1A, 28V DC resistive load).
• Contact Resistance: Excellent conductivity with initial resistance ≤50mΩ.
• Fast Operation Time: Ultra-responsive with action and release times ≤4ms (typical action ≤3ms).
• Dielectric Strength: Robust insulation: 500V RMS at 50Hz under normal atmosphere.
• Insulation Resistance: High resistance >500MΩ, ensuring safety and reliability.
• Sealed Construction: Designed for demanding environments with a leakage rate ≤1x10^-3 Pa·cm³/s.
• Lightweight Design: Compact and lightweight at <3 grams per pole, saving panel space.

Product Features & Advantages

• Wide Range of Configurations: From a compact 5 amp single pole circuit breaker to high-current 3-pole models, we cater to diverse protection needs. Understanding the circuit breaker 1 pole vs 2 pole application is key, and we provide both.

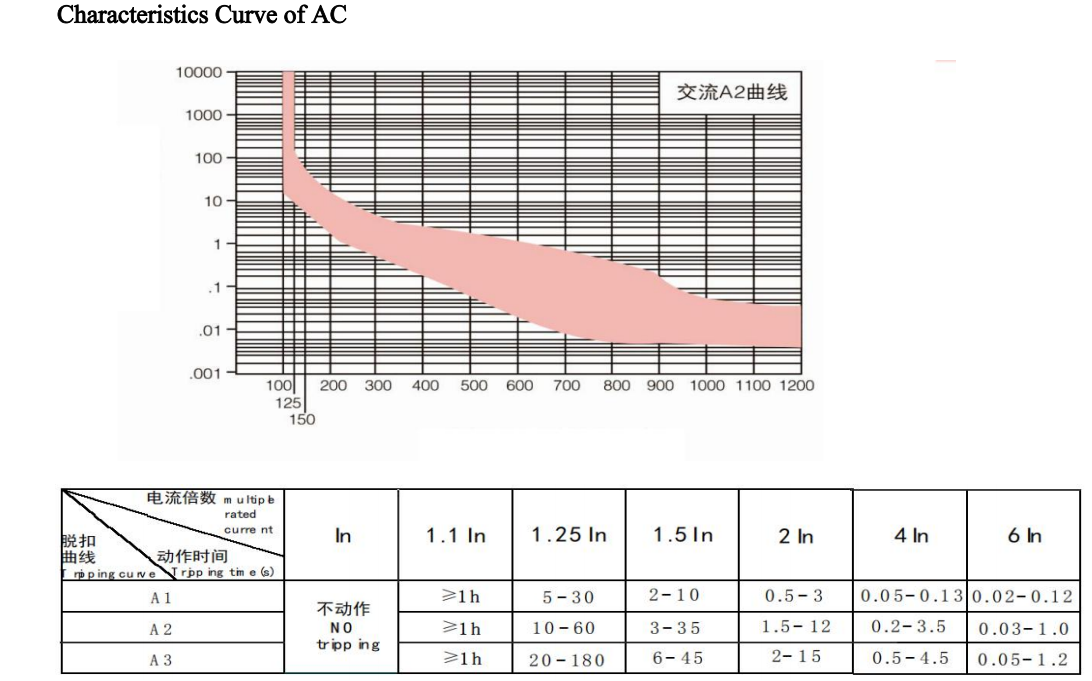

• Hydraulic-Magnetic Trip Technology: Ensures precise and consistent trip curves unaffected by ambient temperature, a critical advantage over thermal breakers for stable hydraulic circuit breaker operation.
• High Reliability & Durability: Built for mission-critical applications in aviation, transportation, and heavy industry, with a long electrical and mechanical life.
• Space-Efficient Design: The compact form factor allows for higher density in control panels, maximizing the utility of an 8 circuit breaker panel layout.
• Easy Integration: Standard footprints and terminal designs simplify replacement and integration into existing systems, supported by clear 3 pole circuit breaker wiring diagram documentation.
• Superior Protection: Fast-acting mechanism minimizes arc energy and protects sensitive downstream components, such as those in a dc powered hydraulic pump system.

How to Select and Install

1. Identify System Requirements: Determine voltage (AC/DC, value), continuous current, number of poles needed (refer to a 2 pole circuit breaker definition if unsure), and fault current level.
2. Choose the Correct Model: Select from our RSB1 (higher voltage, single-pole) or B3 series (DC, multi-pole) based on your technical specs.

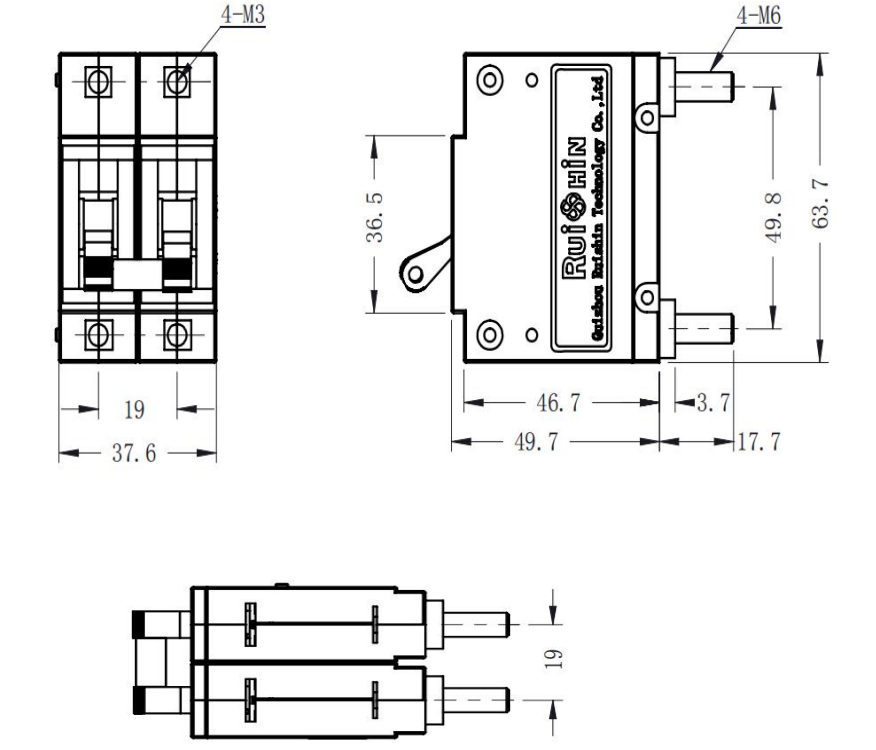

3. Plan the Panel Layout: Use our dimensional drawings to plan integration into your panel, considering clearances and wiring paths as you would for any hydraulic power unit wiring diagram.
4. Safe Installation: De-energize the panel. Mount the breaker securely and connect wires to the correct terminals with proper torque.
5. Verification & Testing: Energize the system and test the manual trip/reset function. For critical systems, a calibrated overload test is recommended to verify the hydraulic operating mechanism of circuit breaker performs as specified.

Application Scenarios

These reliable breakers are deployed in environments where failure is not an option:

• Aerospace & Defense: Protection of avionics, power distribution, and engine control circuits in drones, aircraft, and ground support equipment.
• Railway Systems: Safeguarding control, lighting, and auxiliary power circuits in locomotives and railcars.
• Industrial Automation: Integration into control panels for machinery, robots, and process lines, especially those involving electric hydraulic pump wiring.
• Marine Electronics: DC circuit protection in naval and commercial vessels.
• Renewable Energy: DC side protection in solar inverters and battery management systems.

Value for Business Clients

• Reduce Total Cost of Ownership: High reliability and longevity minimize maintenance, replacement costs, and system downtime.
• Mitigate Risk: Precision protection safeguards your high-value equipment and enhances the overall safety rating of your product.
• Supply Chain Stability: As a manufacturer, we provide consistent quality and reliable supply, reducing procurement risks.
• Engineering Support: Access to technical data and support for seamless integration, helping you optimize your circuit breaker dc control schematic.

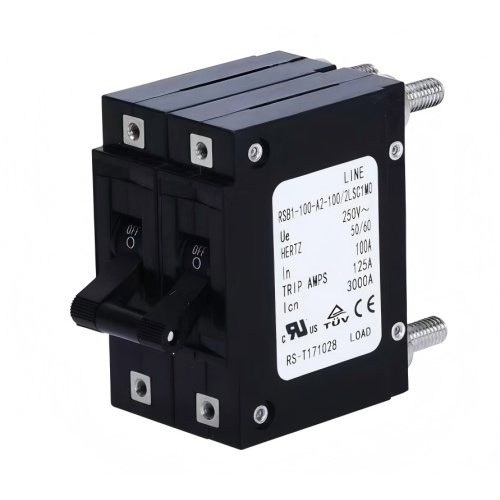

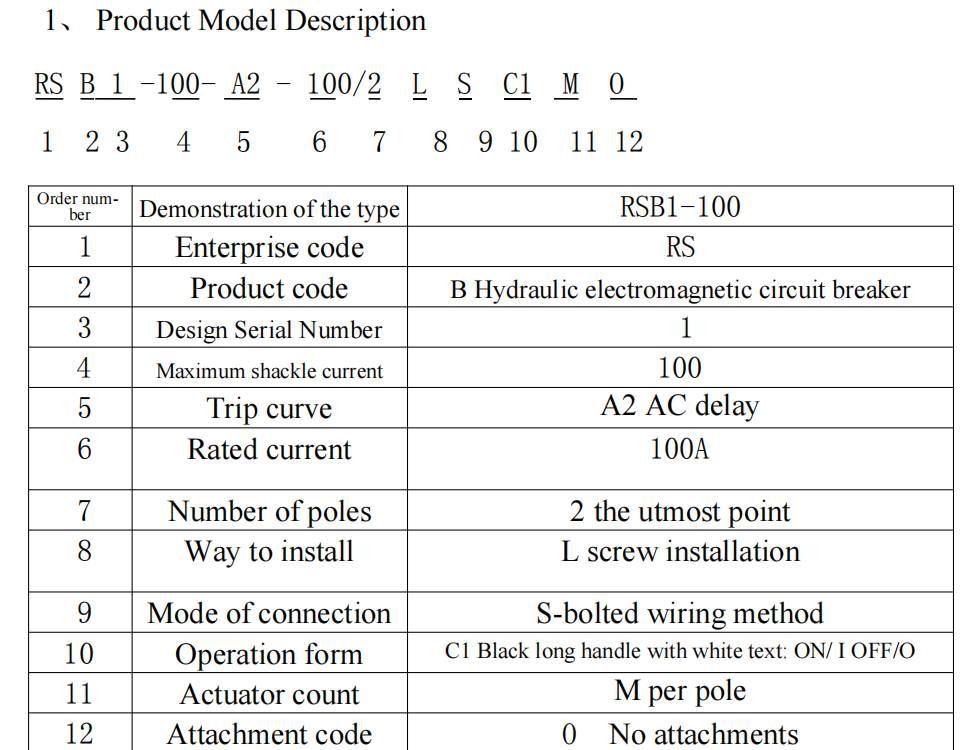

• Hydraulic circuit breaker 100A 250V 1 pole  RSB1-100-A2-100 250V 100A 1 Pole

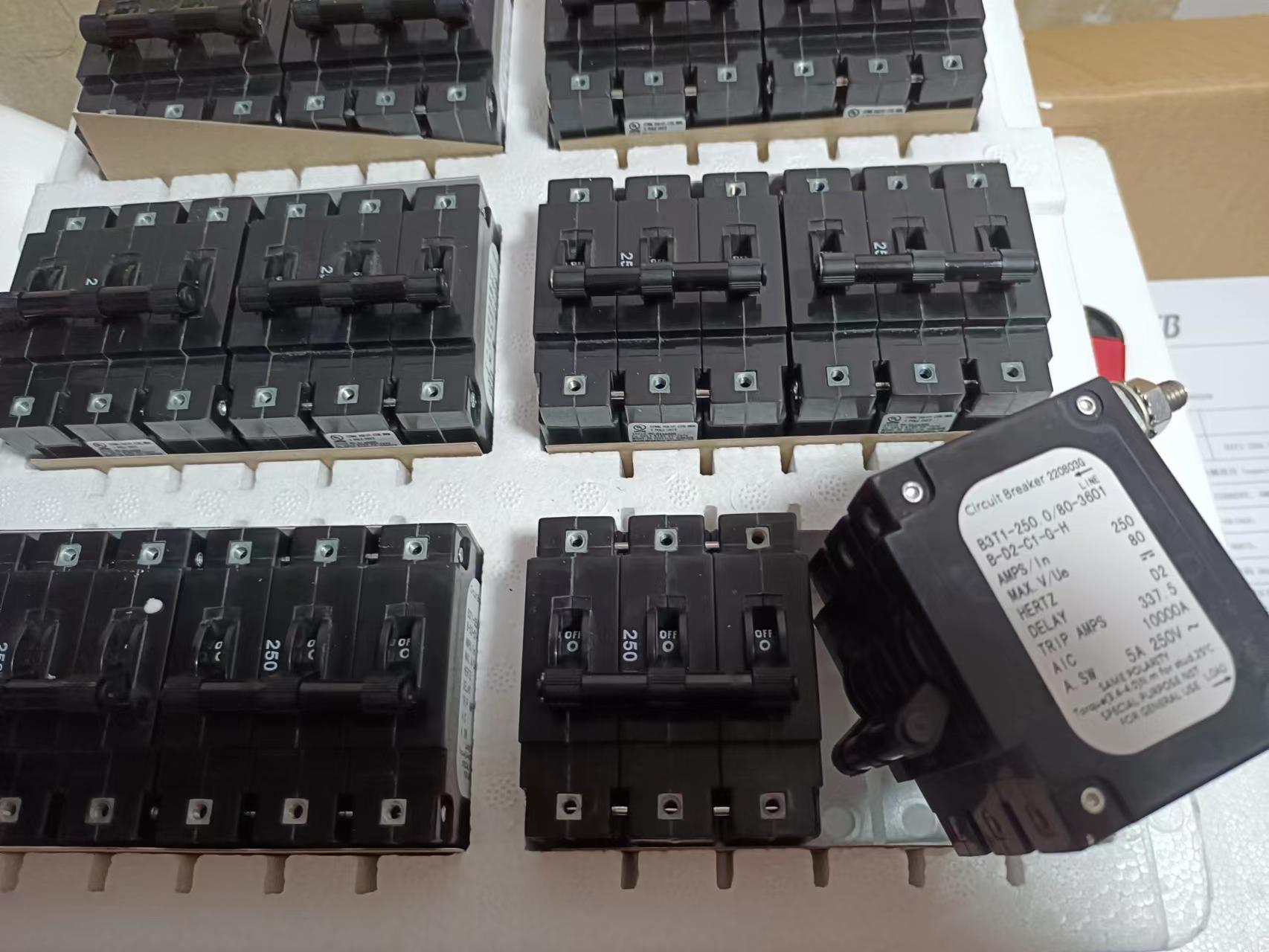

• Hydraulic 3-pole Breaker  B3-T1-250A-80-3-6-0-1-B-D2-C1-G-H  80VDC

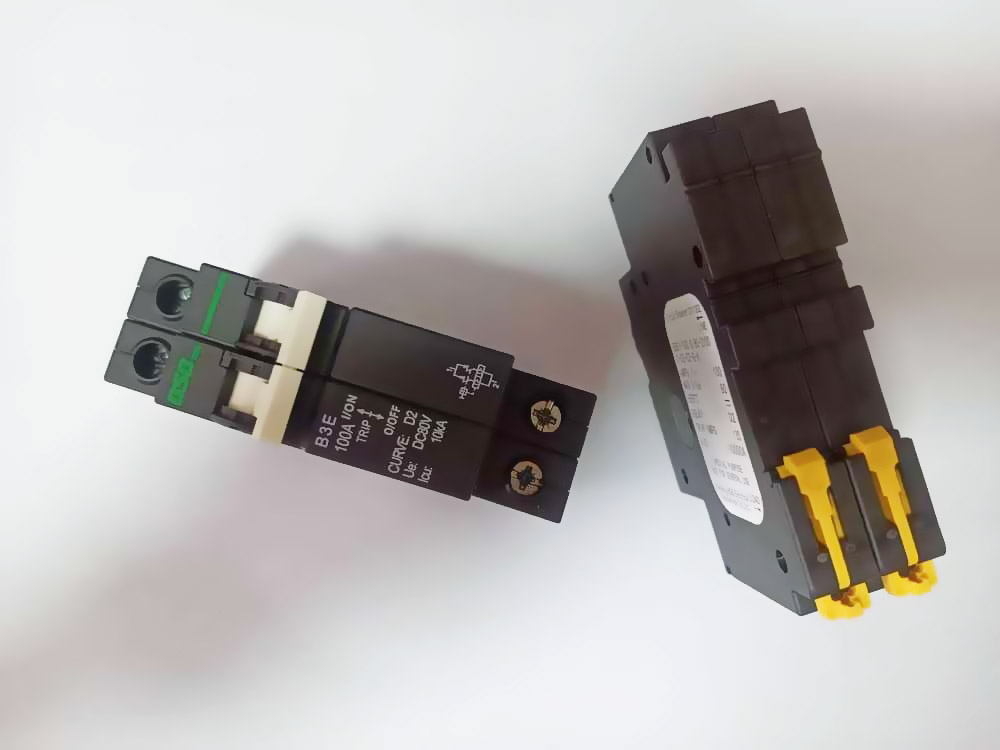

• Hydraulic 2-Pole Breaker  80VDC 100A 2 Pole B3E1-100-O/80-2P00-C-D2-C2
•
• High quality Aviation Breaker for Engine,Train,Plane.

Commitment to Quality

Our production follows rigorous quality management protocols. Each breaker undergoes stringent testing to ensure it meets published specifications. We support OEM and ODM projects, offering customization on parameters like specific current ratings, terminal types, and branding to meet unique application needs, whether for a specialized hydraulic electric circuit breaker or a standard panel component.

FAQ

Q1: What is a hydraulic-magnetic circuit breaker and how does it work?

A1: It combines magnetic force with a hydraulic delay. During an overload or short circuit, the magnetic field pulls a plunger. The plunger moves through a viscous fluid, providing a precise time delay before tripping, making it stable across temperature ranges.

Q2: Can I use the 250V AC/DC rated RSB1 model in a pure 80VDC system?

A2: Yes. A breaker rated for 250V AC/DC is suitable for use in lower voltage DC systems (like 80VDC). The voltage rating indicates the maximum it can withstand. Always ensure the current rating is also appropriate.

Q3: When should I choose a 3-pole breaker over multiple single-pole breakers?

A3: A hydraulic circuit 80 dc 3-pole breaker is used when you need to simultaneously disconnect multiple related DC conductors (e.g., in a 3-wire DC system). It ensures complete isolation and is often more compact and easier to wire than three separate single-pole units, as shown in a 4 pole circuit breaker wiring diagram (conceptually similar for 3 poles).

Q4: Are these breakers suitable for protecting a 12v dc hydraulic power unit?

A4: Absolutely. Our DC-rated B3 series breakers (e.g., 80VDC 100A model) are ideal for protecting the power input to a 12v dc hydraulic power unit. You must select a breaker with a current rating matching or slightly above the pump's maximum draw.

Q5: Do you provide technical drawings for panel design?

A5: Yes, upon request, we can provide detailed dimensional drawings and terminal diagrams to assist your engineers in panel layout and creating accurate wiring diagrams.
