Product Overview

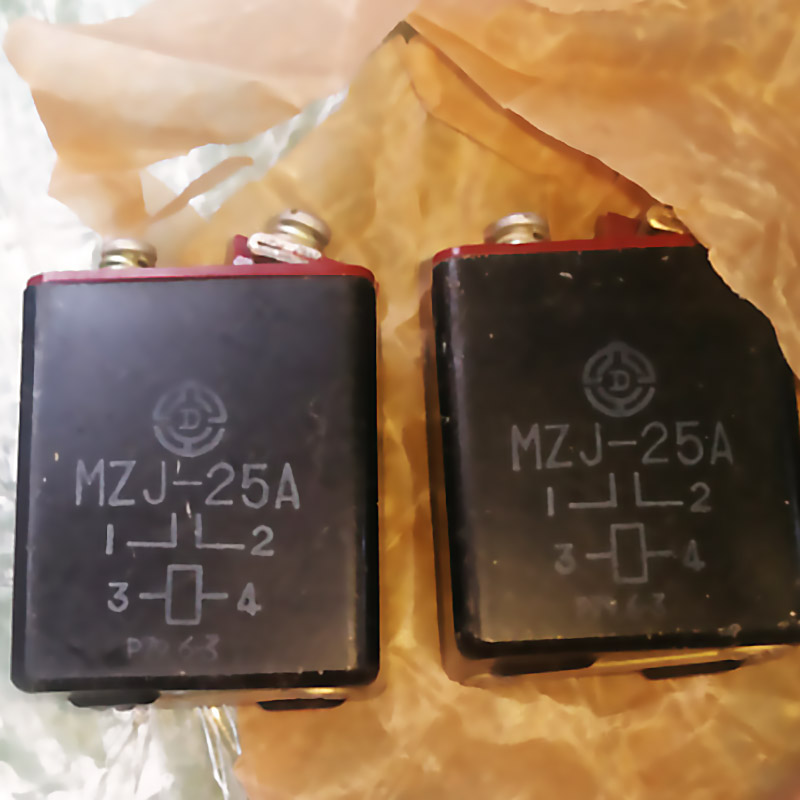

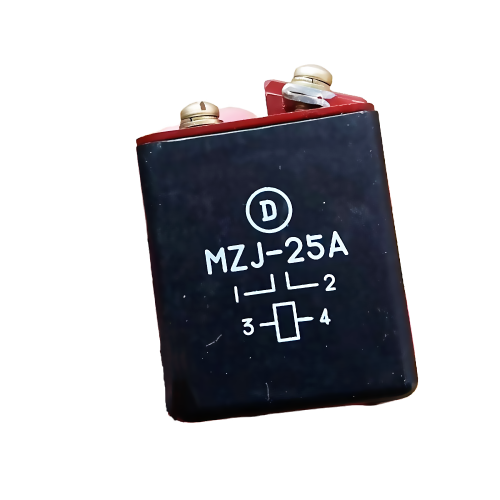

The YM Military Metal Contactor MZJ-25A is a precision-engineered, metal-sealed single-phase contactor designed as a direct and reliable replacement for JQ-81F contactors in demanding aerospace and defense applications. Engineered specifically for drone systems, aircraft engines, and critical aviation power networks, this military-grade metal contactor delivers enhanced durability and performance while maintaining full compatibility with existing JQ-81F installations. As a specialized component within YM's comprehensive range of Military Metal Relays and complementary to our portfolio of Military Aviation Connectors, the MZJ-25A integrates seamlessly with systems utilizing Hydraulic Circuit Breakers and Aviation Magnetic Valves, ensuring robust power management in extreme operating conditions.
Technical Specifications
Precision-engineered for aerospace applications with JQ-81F compatibility:
- Compatibility: Direct form, fit, function replacement for JQ-81F contactors
- Construction: Military-grade metal housing for superior durability
- Coil Power Consumption: 0.3W to 0.43W efficient operational range
- Contact Load & Electrical Life:
- Resistive Load: 1A at 28V DC for 1×10⁶ operations
- Low-Level Load: (10-50)μA at (10-50)mV for 1×10⁶ operations
- Contact Resistance: Initial ≤50mΩ; post-lifetime ≤200mΩ
- Switching Performance: Action time ≤4ms, release time ≤4ms (typical ≤3ms); requires (10-50)ms incentive pulse width
- Dielectric Strength: 500V RMS @ 50Hz (normal pressure); 250V RMS @ 50Hz (low pressure)
- Insulation Resistance: >500MΩ initially; >50MΩ after endurance testing
- Weight: Under 3 grams, maintaining system weight balance
- Sealing Performance: Leakage rate ≤1.0×10⁻³ Pa·cm³/s (hermetic metal seal)
- Operating Temperature: Rated for standard 25°C conditions
- Phase Configuration: Single-phase design compatible with JQ-81F systems
Installation & Replacement Procedure
For direct JQ-81F replacement in aerospace systems:
- System Safety Protocol: Ensure complete system de-energization following established aviation safety procedures.
- Existing Configuration Documentation: Document wiring configuration and terminal positions of the JQ-81F contactor.
- Component Removal: Carefully remove the JQ-81F contactor from its mounting position.
- MZJ-25A Installation: Mount the MZJ-25A using existing hardware, ensuring proper metal-to-metal contact and alignment.
- Wiring Transfer: Transfer all connections to corresponding MZJ-25A terminals following documented configuration.
- System Validation Testing: Conduct comprehensive functional testing to verify replacement integrity and performance.
Application Scenarios
- JQ-81F System Upgrades: Direct replacement in existing drone, UAV, and Aircraft Electrical Systems requiring enhanced durability.
- Aircraft Power Distribution: Single-phase power switching in commercial and military aircraft systems exposed to harsh environments.
- High-Vibration Applications: Power control in aircraft engine compartments and other high-vibration areas.
- Military Field Operations: Robust power switching in military vehicles and field equipment exposed to extreme conditions.
- Ground Support Equipment: Durable power control in aviation ground support and maintenance equipment.
- Marine & Offshore Applications: Corrosion-resistant power switching in marine aviation systems.
Value for Procurement Teams: The MZJ-25A provides a durable upgrade path for JQ-81F systems, offering enhanced reliability in harsh environments, extended equipment lifespan, reduced maintenance costs, and improved system integrity while maintaining full compatibility with existing installations.
Certifications & Compliance
Manufactured under quality systems designed to meet military and aerospace specifications for metal components. The MZJ-25A is engineered to match or exceed original JQ-81F specifications while incorporating enhanced metal construction. Our production processes ensure full traceability and performance consistency, as demonstrated across our product range including Military Pressure Sensors and Aviation Encoding Switches.
Customization Options
While designed as a direct replacement, limited customization is available:
- Specific coil voltage configurations for varied system requirements
- Custom terminal materials and plating for specialized corrosion resistance
- Specialized mounting configurations for unique installation scenarios
- Application-specific testing and validation protocols
- Custom identification marking matching original component labeling
- Special metal alloys for extreme temperature or corrosion environments
Production & Quality Assurance
- Metal Material Selection: Military-grade metals selected for durability, corrosion resistance, and thermal performance.
- Precision Metal Manufacturing: CNC machining and automated assembly ensuring dimensional accuracy and consistency.
- Advanced Sealing Process: Proprietary metal sealing techniques providing superior environmental protection.
- Comprehensive Testing: 100% electrical testing including compatibility verification with JQ-81F systems.
- Environmental Validation: Rigorous testing for vibration resistance, thermal cycling, corrosion resistance, and seal integrity.
- Metal Integrity Verification: Material testing and inspection to ensure metal quality and durability.
This meticulous quality approach, consistent with our manufacturing standards for Solid State Relays and Industrial Power Relays, ensures every MZJ-25A delivers reliable, durable performance as a direct replacement for JQ-81F contactors in the most demanding aerospace and military applications.
