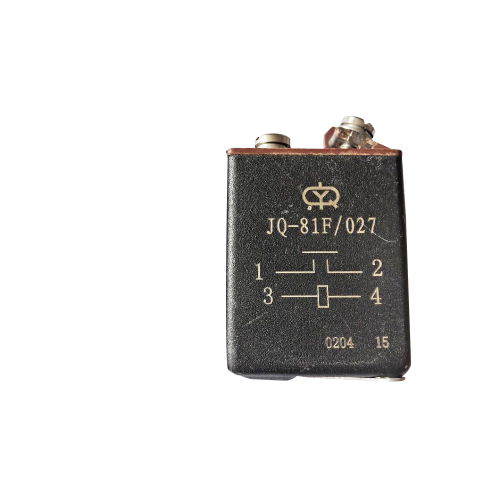

Military Aviation Contactor JQ-81F

Product Overview

The YM Military Aviation Contactor JQ-81F is a precision-engineered, single-phase power switching device designed as a direct and reliable replacement for the MZJ-25A contactor in aerospace, defense, and unmanned systems. Engineered for drone applications, aircraft engine controls, and critical Aviation Electronics, this hermetically sealed component delivers enhanced reliability and direct compatibility. As an integral part of YM's comprehensive aviation component portfolio—which includes Military Aviation Connectors and Aviation Temperature Sensors—the JQ-81F is designed to work seamlessly within systems that also utilize Hydraulic Circuit Breakers and Aviation Magnetic Valves.

Product Images

Technical Specifications

Designed for direct MZJ-25A replacement with performance enhancements:

• Coil Power Consumption: 0.3W to 0.43W operational range
• Contact Load & Electrical Life:
  • Resistive Load: 1A at 28V DC for 1×10⁶ operations
  • Low-Level Load: (10-50)μA at (10-50)mV for 1×10⁶ operations
• Contact Resistance: Initial ≤50mΩ; post-lifetime ≤200mΩ
• Switching Performance: Action time ≤4ms, release time ≤4ms (typical ≤3ms); requires (10-50)ms incentive pulse width
• Dielectric Strength: 500V RMS @ 50Hz (normal pressure); 250V RMS @ 50Hz (low pressure)
• Insulation Resistance: >500MΩ initially; >50MΩ after endurance testing
• Weight: Under 3 grams, maintaining MZJ-25A compatibility
• Sealing Performance: Leakage rate ≤1.0×10⁻³ Pa·cm³/s (hermetic metal seal)
• Operating Temperature: Rated for standard 25°C conditions

Product Features & Advantages

1. Direct MZJ-25A Replacement: Form, fit, and function compatible for seamless system integration without modification.
2. Advanced Hermetic Metal Sealing: Features proprietary Metal Sealing technology used in our Military Metal Relays for superior environmental protection.
3. Enhanced Reliability & Lifespan: Exceeds one million operational cycles, reducing maintenance frequency and total cost of ownership.
4. Optimized Thermal Management: Low-power coil design compatible with systems using Aviation Cold Air Solenoid Valves.
5. Improved Contact Performance: Advanced contact materials ensure stable electrical characteristics and minimal arcing.

Installation & Replacement Guide

For direct MZJ-25A replacement, follow these steps:

1. System Safety Procedure: Ensure complete power isolation from the aviation system before beginning work.
2. Existing Component Removal: Carefully disconnect all wiring from the MZJ-25A contactor, noting terminal configurations.
3. JQ-81F Installation: Mount the JQ-81F using existing mounting hardware and positions.
4. Wiring Reconnection: Connect all wires to corresponding JQ-81F terminals following original MZJ-25A configuration.
5. System Verification Testing: Conduct comprehensive functional and operational testing.

Application Scenarios

• Legacy System Upgrades: Direct replacement for MZJ-25A in existing drone, UAV, and Aircraft Electrical Systems.
• Aircraft Engine Control Systems: Power management for fuel delivery, ignition, and auxiliary systems.
• Aviation Power Distribution: Single-phase power control in networks integrated with Aviation Ammeters.
• Military System Modernization: Upgrading communication, radar, and electronic warfare platforms.
• Aerospace Maintenance Operations: Replacement component for ground support and repair activities.

Value for Procurement Teams: The JQ-81F offers a cost-effective upgrade path for MZJ-25A systems, improving reliability, extending equipment lifespan, and reducing maintenance costs while maintaining full system compatibility.

Certifications & Compliance

Manufactured under aerospace-grade quality systems. The JQ-81F is engineered to match or exceed original MZJ-25A specifications while incorporating modern manufacturing techniques. Our production ensures full traceability and performance consistency, as demonstrated across our product range including Military Pressure Sensors and Aviation Encoding Switches.

Customization Options

While designed as a direct replacement, limited customization is available:

• Specific coil voltage configurations for unique system requirements
• Custom wiring interfaces compatible with existing Military Aviation Connector systems
• Modified terminal arrangements for specialized integration
• Application-specific testing and validation protocols

Production & Quality Assurance

1. Material Selection: Aerospace-grade materials selected for enhanced durability and performance.
2. Precision Manufacturing: Automated assembly ensuring dimensional compatibility with MZJ-25A systems.
3. Hermetic Sealing Process: Advanced sealing techniques providing superior environmental protection.
4. Comprehensive Testing: 100% electrical and functional testing including compatibility verification.
5. Environmental Validation: Rigorous testing for vibration, thermal cycling, and seal integrity.

This quality-focused manufacturing approach, consistent with our production of Solid State Relays and Aviation Rocker Switches, ensures every JQ-81F delivers reliable performance as a direct MZJ-25A replacement.
