Military Aviation Single-phase contactor JQ-200D Replace ZJ-200DB
Lightweight Power Switching Solution for Aerospace Systems
Product Overview
The YM Military Aviation Contactor JQ-200D is a compact, high-reliability power management component specifically engineered for aerospace and unmanned systems. Designed to perform reliably in the demanding environments of drones, aircraft engines, and other Aviation Applications, it serves as a critical link in electrical power distribution. This contactor shares the same rigorous design philosophy as our broader range of aviation-grade components, including Military Aviation Connectors and Aviation Temperature Sensors, ensuring system-wide compatibility and reliability.
Its primary function is to provide precise and reliable switching of electrical circuits, making it an essential component in systems that require fail-safe operation alongside other critical parts like Hydraulic Circuit Breakers and Aviation Magnetic Valves.

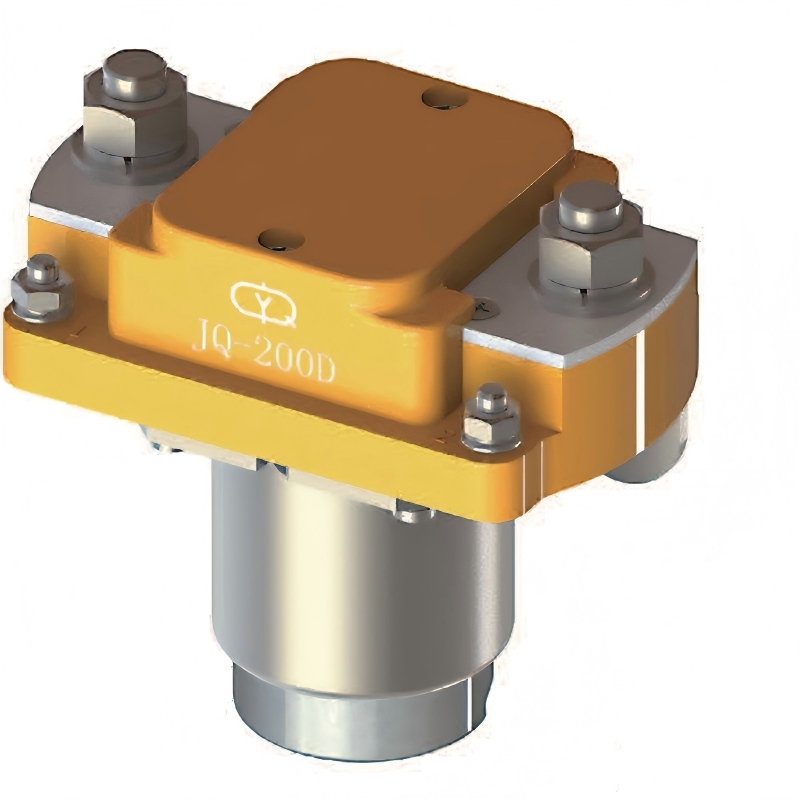

Product Images
Technical Specifications
The JQ-200D is defined by precision engineering with specifications tailored for aviation reliability:
- Coil Power Consumption: Low power design, operating between 0.3W and 0.43W to minimize thermal load.
- Contact Load & Electrical Life:
- Resistive Load Rating: 1A at 28V DC for 1x10^6 operations.
- Low-Level Signal Rating: (10~50)μA at (10~50)mV for 1x10^6 operations, suitable for sensitive control circuits.
- Contact Resistance: Initial resistance ≤50mΩ; after full lifespan testing, resistance remains ≤200mΩ ensuring consistent performance.
- Switching Time Parameters: Rapid response with action time ≤4ms and release time ≤4ms (typical action time ≤3ms). Requires an incentive pulse width of (10～50) ms.
- Dielectric Strength: Withstands 500V RMS at 50Hz under normal pressure; maintains 250V RMS at 50Hz under low-pressure conditions.
- Insulation Resistance: Exceeds 500MΩ initially and remains above 50MΩ after endurance testing.
- Weight: Ultralight construction weighing less than 3 grams, crucial for aerospace weight optimization.
- Sealing Performance: Hermetically sealed with leakage rate ≤1.0 x 10^-3 Pa·cm³/s, protecting against moisture, dust, and pressure variations.
- Coil Voltage Rating: Designed for standard aviation DC voltage systems at 25°C operating temperature.
Product Features & Advantages
The YM JQ-200D delivers exceptional performance through specialized aerospace design features:
- Advanced Hermetic Sealing Technology: Utilizing Metal Sealing techniques similar to our Military Metal Relays, it provides complete environmental protection against altitude changes, humidity, and contaminants.
- Superior Vibration Resistance: Engineered to maintain stable contact integrity under extreme vibration conditions encountered in drone operations and aircraft engine environments.
- Optimized Thermal Management: The low-power coil design minimizes heat generation, complementing thermal-sensitive systems like those using Aviation Cold Air Solenoid Valves.
- Extended Operational Lifespan: Rated for over one million cycles, reducing maintenance requirements and total cost of ownership - a standard we maintain across our Industrial Power Relays portfolio.
- Precision Contact Engineering: Special contact materials ensure minimal arc generation and stable resistance throughout the product lifespan.
Integration Guidelines
Follow these key steps for optimal integration of the JQ-200D into your aviation system:
- System Compatibility Verification: Confirm that your control voltage matches coil specifications and that the load current (such as driving an Aviation Oil Sealed Valve) is within rated parameters.
- Proper Mounting Installation: Secure the contactor using designated mounting points, ensuring it's positioned away from excessive heat sources and that wiring doesn't stress the terminals.
- Correct Wiring Procedure: Use appropriate gauge wiring. Connect control signals to coil terminals and route load power through main contacts. Observe DC polarity where applicable.
- Pre-Operation Validation: Before system integration, perform continuity tests to verify proper switching action and insulation tests to confirm seal integrity.
- System-Level Testing: Integrate into the final aviation system (e.g., UAV power distribution, engine control module) and conduct functional tests under simulated operational conditions.
Application Scenarios
The JQ-200D excels in demanding aerospace applications where reliability is non-negotiable:
- Unmanned Aerial Systems (Drone Power Management): Controlling motor systems, payload deployment, and auxiliary systems in UAV platforms.
- Aircraft Engine Control Systems: Switching auxiliary engine components, fuel management systems, and ignition circuits.
- Aviation Power Distribution Networks: Serving as reliable branch circuit controllers in secondary power systems, often integrated with Aviation Ammeters and monitoring equipment.
- Military & Defense Electronics: Deployed in communication systems, radar power control, and electronic warfare equipment requiring military-grade reliability.
- Aerospace Testing Equipment: Used in ground support and testing apparatus for aircraft system validation and maintenance.
Value Proposition for Procurement: The JQ-200D reduces system failure risk, extends maintenance intervals, and ensures compliance with aviation reliability standards, directly contributing to lower lifecycle costs and enhanced operational readiness.
Certifications & Compliance
YM's manufacturing processes for the JQ-200D adhere to stringent aerospace quality standards. While specific certifications vary by customer requirements, our production system maintains traceability and quality control comparable to military specifications. Our expertise in producing Military Pressure Sensors and Aviation Encoding Switches under the same quality framework ensures the JQ-200D meets rigorous performance benchmarks for environmental resistance and operational reliability.
Customization Options
We understand that standard configurations may not meet all mission requirements. YM offers flexible customization options for the JQ-200D:
- Specific coil voltage configurations
- Custom wire harness lengths and connector interfaces compatible with your Military Aviation Connector systems
- Modified mounting configurations for unique installation requirements
- Special testing and validation protocols for specific applications
Production & Quality Assurance
The JQ-200D undergoes rigorous manufacturing and testing processes:
- Precision Component Manufacturing: High-grade materials selection for all critical components including contacts, springs, and enclosures.
- Controlled Environment Assembly: Automated assembly processes ensure consistent quality and performance characteristics.
- Hermetic Sealing Process: Specialized sealing procedures performed in controlled environments to guarantee atmospheric protection.
- Comprehensive Electrical Testing: 100% testing of contact resistance, operational voltage ranges, timing parameters, and insulation resistance.
- Environmental Validation: Batch testing for vibration resistance, thermal cycling, shock tolerance, and seal integrity verification.
This vertically integrated approach ensures complete quality control from material sourcing to finished product, maintaining the same standards applied to our Solid State Relays and Aviation Rocker Switches.
