Military Aviation Single-phase contactor JQ 400D Replace ZJ-400A
High-Reliability Power Control for Demanding Aerospace Applications
Product Overview
The YM Military Aviation Contactor JQ-400D is a premium-grade, hermetically sealed power control device engineered for critical aerospace and defense systems. Designed to manage electrical loads in drones, aircraft engines, and other high-vibration platforms, it sets the benchmark for reliability, durability, and performance in extreme environments. As a specialized component within our broader range of Military Aviation Connectors and Military Electronic Horns, the JQ-400D embodies YM's commitment to exceeding the stringent standards of the aviation industry.
Its core function is to provide fail-safe connection and interruption of electrical circuits, ensuring the reliable operation of essential subsystems. This makes it a vital component alongside other critical aviation components like Aviation Pressure Sensors and Hydraulic Circuit Breakers in modern aircraft design.

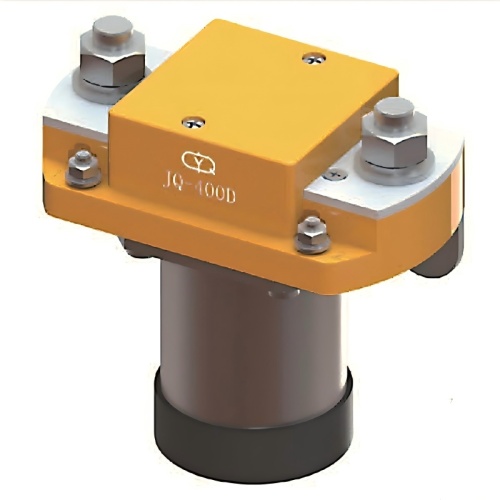

Product Images
Technical Specifications
The JQ-400D is defined by its precision engineering and conservative rating to ensure maximum safety margin in operation.
- Coil Power Consumption: Extremely low, ranging from 0.3W to 0.43W, minimizing system power draw and heat generation.
- Contact Load & Life:
- Resistive Load: Rated for 1A at 28V DC for over 1x10^6 cycles.
- Low-Level Load: Rated for (10~50)μA at (10~50)mV for over 1x10^6 cycles, ideal for sensitive signal circuits.
- Contact Resistance: Initial value is ≤50mΩ; after full life expectancy testing, it remains ≤200mΩ, ensuring consistent voltage drop and performance.
- Time Parameters: Features ultra-fast switching with an action time of ≤4ms and a release time of ≤4ms (typical action time ≤3ms). The required incentive pulse width is (10～50) ms.
- Dielectric Withstand Voltage: 500V RMS at 50Hz under normal atmospheric pressure; 250V RMS at 50Hz under low pressure conditions.
- Insulation Resistance: Exceeds 500MΩ initially and remains above 50MΩ after high-level life testing.
- Weight: Ultra-lightweight design at less than 3 grams, critical for aerospace weight savings.
- Sealing & Tightness: Hermetically sealed with a leakage rate of ≤1.0 x 10^-3 Pa·cm³/s, protecting against moisture, dust, and atmospheric pressure changes.
- Coil Voltage (at 25°C): Designed for standard DC voltage inputs common in aviation systems.
Product Features & Advantages
The YM JQ-400D stands out due to its specialized design and construction, offering distinct advantages over standard commercial contactors.
- Military-Grade Hermetic Sealing: Utilizing advanced Metal Sealing technology similar to our Military Metal Relays, it guarantees performance in vacuum, high humidity, and corrosive atmospheres, preventing internal oxidation and contact contamination.
- Exceptional Vibration & Shock Resistance: Engineered to withstand the extreme G-forces and vibration profiles encountered in drone flight and aircraft engine operation, ensuring stable contact and no unwanted bouncing.
- Ultra-Low Power Coil Design: The efficient electromagnetic system minimizes heat buildup and reduces the load on the aircraft's control power supply, complementing the efficiency of systems using Aviation Cold Air Solenoid Valves.
- High Reliability & Long Life: With a mechanical life exceeding one million cycles under rated load, it reduces maintenance intervals and total lifecycle cost, a philosophy we extend to all our Industrial Power Relays.
- Superior Contact Material: Uses specialized alloys that ensure low and stable contact resistance, minimizing power loss and preventing welding under inrush currents.
How to Integrate the JQ-400D: Key Steps
Proper integration is key to achieving rated performance. Follow these general guidelines:
- System Compatibility Review: Verify that your control voltage matches the coil specifications and that the load (e.g., an actuator for an Aviation Oil Sealed Valve) is within the JQ-400D's rated current and voltage limits.
- Installation & Mounting: Secure the contactor using its designated mounting points. Ensure it is positioned away from excessive heat sources and that wiring paths do not induce stress on the terminals.
- Wiring Connection: Use appropriate gauge wire. Connect the control signal to the coil terminals. Route the load power (from the aircraft's main bus or a dedicated PCB Board Relay) through the contactor's main terminals. Observe polarity for DC coils if applicable.
- Pre-Operational Check: Before final system closure, perform a continuity test to verify correct switching action in response to the control signal and an insulation resistance test to confirm seal integrity.
- System Testing: Integrate into the final system (e.g., engine control unit, drone power distribution module) and perform functional tests under simulated operational conditions, similar to testing procedures for Aviation Temperature Sensors.
Application Scenarios
The JQ-400D is indispensable in scenarios demanding absolute reliability and resilience.
- Unmanned Aerial Vehicles (UAVs/Drone Contactor): Controlling motors, payloads (like gimbals or sensor suites), and landing gear systems where weight and reliability are paramount.
- Aircraft Engine Management: Switching auxiliary engine systems, fuel pumps, or ignition units in both manned and unmanned aircraft.
- Aviation Power Distribution Units (PDUs): Serving as a reliable branch switch in secondary power distribution networks, often working in conjunction with Aviation Ammeters and Copper Fuse Holders.
- Military & Defense Systems: Used in communication systems, radar power control, and other mission-critical electronic warfare suites that require the robustness of Military Aviation components.
- Test & Ground Support Equipment: Providing reliable switching in ruggedized equipment used to service and test aircraft systems.
Value for Procurement Teams: Integrating the JQ-400D reduces system failure risk, extends maintenance cycles, and ensures compliance with aviation reliability standards, directly contributing to lower total cost of ownership and enhanced mission readiness.
Certifications & Compliance
YM's manufacturing processes and the design philosophy behind the JQ-400D are aligned with international aerospace and defense standards. While specific product certifications are project-dependent, our production is governed by a rigorous quality management system. Our expertise in producing Military Pressure Sensors and High Power Aviation Contactors under the same framework ensures that the JQ-400D is built to meet or exceed relevant performance benchmarks for reliability, environmental resistance, and safety.
Customization Options
Understanding that standard solutions don't fit every mission profile, YM offers limited customization for the JQ-400D to meet specific program requirements, leveraging our extensive ODM experience. Potential adaptations include:
- Specific coil voltage values.
- Custom lead (wire) types, lengths, and connector interfaces to match your Military Aviation Connector ecosystem.
- Modified mounting configurations.
- Lot-specific testing and validation reports.
Production & Quality Process
The JQ-400D is manufactured in our dedicated, controlled-environment facility. The process involves:
- Precision Component Fabrication: Using high-grade materials for contacts, springs, and the metal enclosure.
- Automated Assembly: Ensuring consistent, precise assembly of internal mechanisms.
- Hermetic Sealing: Performed in specialized chambers to guarantee the critical seal integrity.
- 100% Automated Electrical Testing: Every unit undergoes testing for contact resistance, pull-in/drop-out voltage, timing parameters, and insulation resistance.
- Environmental Sampling Tests: Rigorous batch testing for vibration, shock, temperature cycling, and seal leak rate, applying the same stringent principles used for our Solid State Relays and Aviation Encoding Switches.
This closed-loop, vertically integrated process gives YM complete control over quality and traceability from raw material to finished product.
