High-Performance Direct Replacement for 12550 ECE Systems

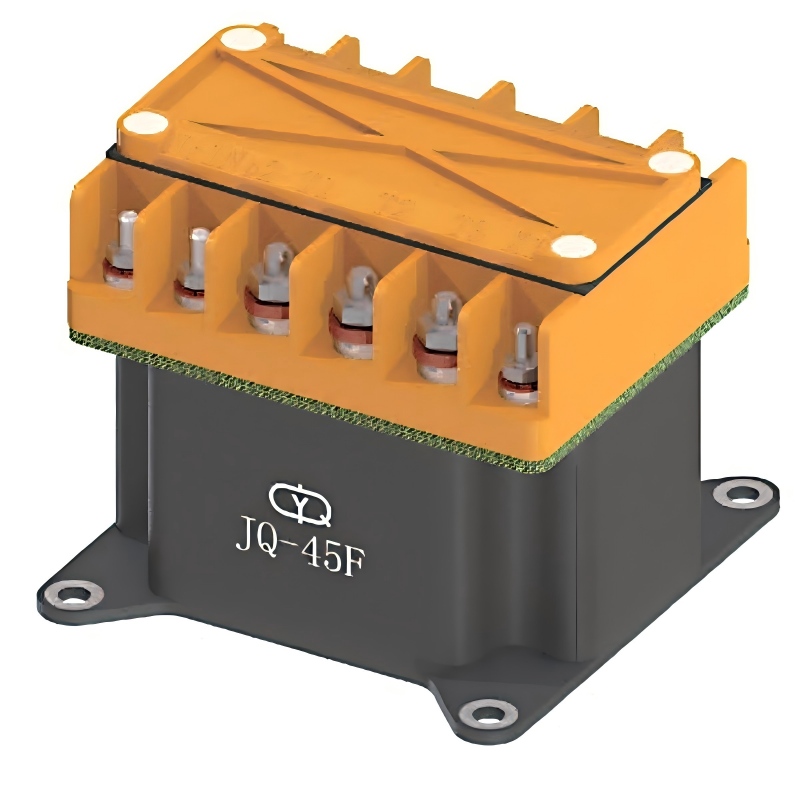

The YM JQ-45F Military Aviation Contactor is engineered as a premium drop-in replacement for legacy 12550 ECE contactors, delivering enhanced reliability and modern performance while maintaining perfect mechanical and electrical compatibility. Designed for mission-critical aerospace applications including drone systems, aircraft engines, and various aviation subsystems, this high-quality contactor provides superior power switching for engine controls, railway systems, and aircraft electrical distribution. As a key component in YM's comprehensive aerospace portfolio, it integrates seamlessly with our Military Metal Relays, Aviation Connectors, and Hydraulic Circuit Breakers, offering a reliable modernization solution for aging systems.
Product Images & Technical Documentation
Technical Advantages & Design Features
Modernized Performance for Legacy System Compatibility
- Perfect Replacement Compatibility: Direct mechanical and electrical replacement for 12550 ECE contactors without system modifications or adaptations.
- Energy Efficient Operation: Ultra-low coil power consumption (0.3-0.43W) reduces system thermal load and improves overall energy efficiency.
- Extended Operational Life: Rated for 1,000,000 operations at full load (1A, 28V DC resistive) with additional 1,000,000 cycles at low-level switching (10-50µA, 10-50mV).
- Superior Electrical Performance: Exceptionally low contact resistance (≤50mΩ initial, ≤200mΩ after life testing) ensures minimal power loss and voltage drop.
- High-Speed Switching Capability: Fast action and release times (≤4ms) with precise 10-50ms incentive pulse control for accurate system timing.
- Military-Grade Environmental Protection: Hermetic sealing with leakage rate ≤10⁻³ Pa·cm³/s provides superior protection against moisture, contaminants, and corrosive elements.
- Enhanced Dielectric Strength: Withstands 500Vr.m.s. at normal pressure and 250Vr.m.s. at low pressure (50Hz), with insulation resistance exceeding 500MΩ.
- Weight-Optimized Aerospace Design: Maintains critical weight specifications at under 3 grams while delivering improved reliability over legacy components.
Manufactured with the same precision engineering as our PCB Board Relays and Solid State Relays, the JQ-45F represents a modern reliability solution for legacy aerospace systems.
Complete Technical Specifications
Electrical Performance Parameters
- Coil Power Requirement: 0.3W - 0.43W
- Contact Rating: 1A at 28V DC (resistive load)
- Contact Life Expectancy: 1×10⁶ operations at rated load; 1×10⁶ operations at low-level load
- Contact Resistance: Initial value ≤50mΩ; After life testing ≤200mΩ
- Switching Speed: Action time ≤4ms; Release time ≤4ms
- Dielectric Strength: 500Vr.m.s. @ normal atmospheric pressure (50Hz); 250Vr.m.s. @ low pressure (50Hz)
- Insulation Resistance: >500MΩ @ normal pressure; >50MΩ after high-level life testing
- Control Pulse Specification: 10-50ms incentive pulse width for reliable actuation
Physical & Environmental Specifications
- Weight: Less than 3 grams
- Sealing Performance: Leakage rate ≤10⁻³ Pa·cm³/s
- Reference Temperature: Coil voltage specifications referenced at 25°C
- Compatibility: Direct replacement for 12550 ECE contactor systems
- Construction: Military-grade materials with advanced hermetic sealing technology
System Integration & Replacement Procedure
- System Verification: Confirm existing contactor model as 12550 ECE and validate electrical system compatibility with JQ-45F specifications.
- Safety Procedures: Implement proper lockout/tagout protocols to safely de-energize the system before beginning replacement work.
- Legacy Component Removal: Carefully remove the existing 12550 ECE contactor, documenting all wire connections and mounting details.
- Direct Replacement Installation: Install the JQ-45F using original mounting hardware in the exact same position and orientation.
- Electrical Reconnection: Reconnect all wires to corresponding terminals using aerospace-grade wiring techniques, following standards similar to Military Aviation Connector installations.
- Comprehensive Testing: Restore power and perform thorough functional testing including contact operation verification, timing validation, and complete system integration checks.
Application Environments & Use Cases
Compatible Modernization Across Aerospace Systems
- Legacy Aircraft Electrical Systems: Direct replacement in aging aircraft requiring reliable 12550 ECE substitution for maintenance programs and system modernization.
- Modern Drone & UAV Platforms: Power management for propulsion systems, flight controllers, and payload integration where reliability exceeds legacy component capabilities.
- Aircraft Engine Control Applications: Integration into engine management systems, fuel control units, and ignition circuits for both legacy and updated aircraft platforms.
- Ground Support Equipment Modernization: Upgrading test equipment, maintenance platforms, and ground power units with improved reliability components.
- Railway & Specialized Transportation Systems: Applications in transportation control systems requiring aerospace-grade reliability, often integrated with Aviation Temperature Sensors and Military Pressure Sensors for comprehensive system monitoring.
Similar to our New Energy Relays designed for emerging transportation technologies, the JQ-45F addresses legacy system limitations with modern engineering solutions.
Procurement Advantages & Operational Value
- Minimized System Downtime: Direct replacement capability significantly reduces aircraft or equipment out-of-service time during maintenance operations.
- Enhanced System Reliability: Improved specifications deliver superior performance compared to aging original components, reducing future maintenance frequency.
- Cost-Efficient Modernization Path: Avoids expensive system redesigns by providing a fully compatible upgrade solution for existing installations.
- Supply Chain Security: Consistent manufacturing by YM ensures reliable supply versus uncertain availability of legacy 12550 ECE components.
- Perfect Technical Compatibility: Maintains complete interoperability with existing systems while offering enhanced performance characteristics.
- Weight Specification Preservation: Maintains original weight parameters critical for aerospace balance and performance calculations.
Quality Standards & Manufacturing Excellence
The JQ-45F is manufactured in facilities implementing aerospace-grade quality management systems aligned with industry standards. While maintaining perfect backward compatibility with 12550 ECE installations, our production processes incorporate modern reliability enhancements and comprehensive testing protocols. Each contactor undergoes rigorous verification to ensure it meets or exceeds original specifications while delivering improved performance characteristics for extended service life.
Customization & Application-Specific Support
While designed as a direct replacement, YM offers engineering support for modified requirements based on the JQ-45F platform:
- Alternative coil voltage and resistance configurations
- Custom marking and identification per customer documentation requirements
- Extended environmental testing and qualification protocols
- Comprehensive documentation packages including test reports and certificates
- Specialized packaging solutions for specific logistics and handling needs
Our extensive experience with custom PCB Signal Relays and Latching Relays enables precise adaptation to specific application requirements while maintaining full compatibility with legacy systems.
