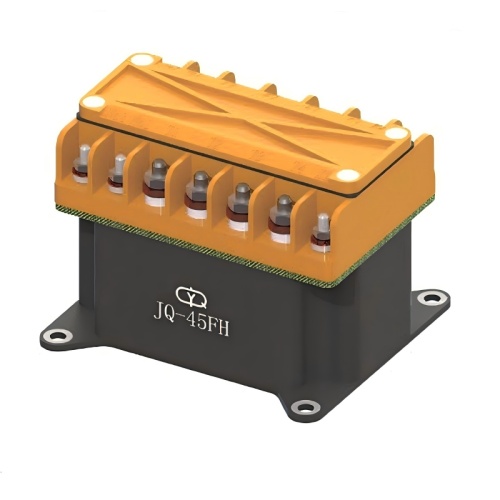

Three Phase Aviation DC Contactors JQ-45FH

JQ-45FH Military Aviation Contactor:

High-Performance Power Switching for Advanced Aerospace Systems

The JQ-45FH Military Aviation Contactor is a precision-engineered, high-reliability power switching solution specifically designed for demanding aerospace and defense applications, including next-generation drones, aircraft engine management, and critical avionics systems. As a core component within YM's distinguished Military Aviation Contactor portfolio, it delivers uncompromising performance where operational safety and reliability are paramount.

Manufactured to the exacting standards that define our Military Metal Relays and High Power Aviation Contactors, the JQ-45FH integrates robust construction with advanced electrical characteristics. Its design emphasizes exceptional environmental sealing, rapid switching capability, and long-term durability to ensure dependable operation in the most challenging conditions, from high-altitude flight to high-vibration engine environments.

Product Visualization



Technical Specifications

Electrical Performance

• Coil Power Consumption: 0.3W - 0.43W (Energy-efficient drive)
• Contact Load Rating & Life:
  • Standard Power: 1A at 28V DC (Resistive) for 100,000+ cycles
  • Low-Level Signal: 10-50μA at 10-50mV for 100,000+ cycles
• Contact Resistance:
  • Initial Value: ≤ 50mΩ
  • After Life Test: ≤ 200mΩ
• Switching Speed:
  • Actuation Time: ≤ 4ms
  • Release Time: ≤ 4ms
  • Minimum Pulse Width: 10-50ms

Environmental & Mechanical

• Dielectric Strength:
  • At Sea Level: 500V RMS, 50Hz
  • At High Altitude (Low Pressure): 250V RMS, 50Hz
• Insulation Resistance:
  • Initial: > 500 MΩ
  • After Life Test: > 50 MΩ
• Weight: < 3 grams (Lightweight aerospace-grade)
• Hermetic Sealing: Leakage rate ≤ 1×10⁻³ Pa·cm³/s
• Reference Temperature: Specifications referenced at 25°C (77°F)

Key Features & Advantages

• High-Reliability Aerospace Design: Engineered for mission-critical applications with performance characteristics that meet stringent military and aviation industry demands for durability and fail-safe operation.
• Superior Hermetic Sealing: The sealed housing provides comprehensive protection against moisture, dust, fuel vapors, and other contaminants, ensuring long-term reliability in harsh environments — a standard comparable to that of Aviation Oil Sealed Valves.
• Fast & Precise Switching: With actuation and release times of ≤4ms, it enables rapid system response for time-critical control functions in flight systems and engine management.
• Dual-Purpose Contact Capability: Uniquely designed to handle both standard 1A/28VDC power switching and sensitive low-level (μA/mV) signal circuits, offering design versatility akin to specialized PCB Signal Relays but in a more robust package.
• Extended Operational Life: Rated for a minimum of 100,000 cycles, significantly reducing maintenance frequency, replacement costs, and total lifecycle cost of ownership for critical systems.
• Optimized Weight & Robustness: At under 3 grams, it contributes to weight-saving goals without compromising the mechanical strength needed to withstand high vibration and shock, reflecting our expertise in Military Electronic components.
• Altitude-Tested Performance: Maintains specified dielectric strength even at reduced atmospheric pressures, ensuring safety and performance integrity throughout the entire flight envelope of an aircraft.

Recommended Installation Procedure

1. Pre-Installation Check: Verify system compatibility (28V DC control, ≤1A load). Inspect the contactor for any physical damage.
2. Mechanical Mounting: Securely mount the unit in a clean, dry location using appropriate hardware, ensuring it is away from excessive heat sources.
3. Electrical Connections:
   • Connect control wires to the coil terminals, observing correct polarity.
   • Connect the load wires to the main contact terminals. For low-level signal applications, use shielded cables and proper grounding as you would for sensitive components like Aviation Temperature Sensors to prevent noise interference.
4. System Integration: Ensure the contactor is correctly integrated with other system elements, such as Hydraulic Circuit Breakers or Military Aviation Connectors.
5. Pre-Operation Testing: Before final power-up, conduct insulation resistance and functional switching tests to confirm proper installation and operation.

Application Scenarios

The JQ-45FH is designed for high-stakes switching in advanced aerospace platforms:

• Electric & Hybrid-Electric Aircraft: Battery system isolation, main power bus distribution, and motor controller power management.
• Unmanned Aerial Vehicles (UAVs/ Drones): Critical power routing for flight control actuators, payload systems, and communication equipment.
• Manned Aircraft Systems: Control of fuel pumps, anti-ice systems, environmental control systems, and auxiliary power units (APUs).
• Advanced Avionics & Defense Systems: Integration into custom Military Aviation Encoding Switch panels, radar power supplies, and electronic warfare equipment.
• Ground Support & Test Equipment: Reliable power control in aircraft maintenance test stands, ground power units, and diagnostic tools.

Value for Procurement Teams: The JQ-45FH offers a high-performance, quality-guaranteed component that mitigates supply chain risk. Its proven durability and long service life directly contribute to lower operational downtime, reduced unscheduled maintenance, and increased overall system availability and safety.

Quality Assurance & Compliance

Every JQ-45FH is manufactured under a stringent quality management system. While specific end-product certifications can be aligned with customer program requirements, our design and production adhere to the core principles of major international and aerospace standards:

• Design and testing protocols aligned with performance criteria relevant to military (MIL-STD) and Aerospace Components.
• Implementation of full material traceability and statistical process control throughout manufacturing.
• RoHS compliance is standard; other specific qualifications are available upon request to support your project needs.

Customization & Engineering Support

We provide flexible support to meet specific application challenges:

• Electrical Customization: Tailored coil voltages or specialized contact materials for unique electrical loads.
• Mechanical & Interface Adaptations: Modified mounting configurations, custom lead lengths, or integration with specific Military aircraft Plug interfaces.
• Testing & Validation: Additional product screening, environmental stress testing, or provision of custom test data packages.
• Identification & Packaging: Customer-specific part numbering, labeling, or specialized ESD-safe/ bulk packaging solutions.

Production & Quality Process

Reliability is engineered into the JQ-45FH through a controlled, multi-stage manufacturing process:

1. Design Validation: Application-specific considerations, including contact material selection and arc suppression, are validated via simulation and prototyping.
2. Precision Manufacturing: Automated assembly in controlled environments ensures consistency for critical components like the armature and contact assembly.
3. Hermetic Sealing: Advanced sealing processes are applied, followed by mandatory leak testing to verify the specified environmental integrity.
4. 100% Electrical Testing: Every single unit undergoes final testing for contact resistance, operate/release time, coil parameters, and dielectric strength.
5. Lot Sampling & Audit: Units from each production batch undergo extended life-cycle and environmental stress testing to validate long-term performance under simulated operational conditions.
