Military Aviation Contactor CHZ-1 (RJ3.610.001): Precision Engineered for Critical Missions

YM presents the Military Aviation Contactor CHZ-1 RJ3.610.001, a high-reliability component designed for the most demanding aerospace and defense applications. This Precision Aviation Contactor Model CHZ-1 exemplifies military-grade engineering, offering unmatched performance in critical circuit control. Built to stringent standards, it ensures absolute reliability in avionics, navigation systems, and other essential military aviation functions where failure is not an option.

As a quintessential Military Grade Contactor RJ3.610.001 for Aviation, its design prioritizes durability, precision, and consistent operation under extreme environmental conditions, making it the trusted choice for defense contractors and aerospace integrators worldwide.

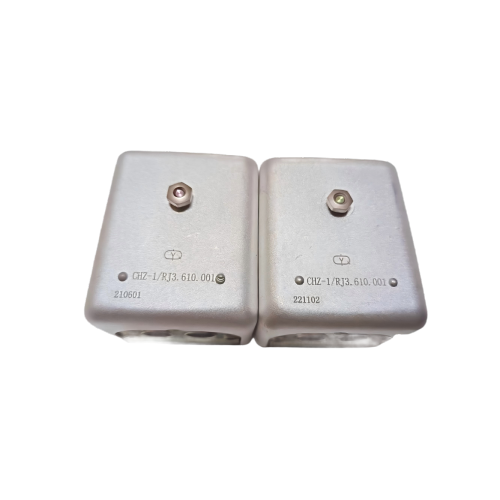

Military Aviation Contactor CHZ-1 RJ3.610.001 - High Reliability Design

Product Features & Advantages

Our Aviation Contactor CHZ-1 for Military Use stands apart through its dedicated engineering for high-stakes environments. Here’s what makes it superior:

Extreme Reliability & Longevity: Engineered for a high number of operational cycles. Contact life rated at 1x10⁵ cycles under a 1A, 28V d.c. resistive load, ensuring long-term performance without degradation.
Precision Low-Level Switching: Capable of reliably switching ultra-low signals (10–50 µA, 10–50 mV) for 1x10⁵ cycles, making it ideal for sensitive avionic and instrumentation circuits.
Ultra-Fast & Consistent Response: Features minimal delay with action and release times ≤4ms, guaranteeing precise timing control in rapid-sequence operations.
Robust Environmental Sealing: Hermetically sealed with a leakage rate ≤1x10^-3 Pa·cm³/s, protecting against moisture, dust, and atmospheric pressure changes encountered in high-altitude flight.
Superior Electrical Insulation: High dielectric strength (500Vr.m.s. at normal atmosphere) and excellent insulation resistance (>500MΩ), ensuring safety and preventing leakage in compact system layouts.
Lightweight & Compact Design: Weighing under 3 grams, it contributes to critical weight savings in aircraft systems without compromising performance or robustness.

This combination of features solidifies the High Performance Military Aviation Contactor CHZ-1 as a cornerstone component for mission-critical systems.

Technical Specifications

Electrical Parameters

Coil Power Consumption: 0.3W – 0.43W
Contact Load & Life:
- Standard Load: Resistive, 1A, 28V d.c., Life: 1 x 10⁵ cycles.
- Low-Level Load: (10–50)µA, (10–50)mV, Life: 1 x 10⁵ cycles.
Contact Resistance:
- Initial Value: ≤50mΩ.
- After Life Test: ≤200mΩ.
Time Parameters:
- Action Time: ≤4ms.
- Release Time: ≤4ms.
- Incentive Pulse Width: (10–50)ms.

Isolation & Environmental Specifications

Dielectric Withstanding Voltage:
- Normal Atmosphere: 500Vr.m.s., 50Hz.
- Low Pressure: 250Vr.m.s., 50Hz.
Insulation Resistance:
- Normal Atmosphere: >500MΩ.
- After High-Level Life Test: >50MΩ.
Weight: <3g.
Tightness (Sealing): Leakage rate ≤1x10^-3 Pa·cm³/s.
Coil Voltage (Vd.c.): Standard at 25°C. Custom voltages available.

Application Scenarios

The Advanced Aviation Contactor RJ3.610.001 with Precision Engineering is designed for deployment in systems where precision and unwavering reliability are paramount. Key application areas include:

Avionics Systems: Power distribution and signal switching within flight control computers, communication radios, and navigation units.
Weapon Systems Control: Reliable circuit engagement in armament and release systems.
Engine Control Units (ECUs): Managing signals and auxiliary power circuits for turbine engine controls.
Mission & Payload Systems: Switching for surveillance, radar, and electronic warfare equipment.
Ground Support & Test Equipment: Used in high-fidelity testing rigs and maintenance platforms for military aircraft.

This Aviation Contactor RJ3.610.001 for Military Applications delivers the specific value of reducing system downtime, minimizing maintenance cycles, and providing peace of mind through its proven, ruggedized design.

How to Integrate the CHZ-1 Contactor

For optimal performance of your Precision Aviation Contactor Model CHZ-1 with Military Grade Design, follow these key integration steps:

System Compatibility Review: Verify that your system's voltage, current (especially for low-level signals), and switching frequency align with the CHZ-1's specifications.
Environmental Protection: While the contactor is hermetically sealed, ensure the surrounding assembly provides appropriate mechanical protection and thermal management.
Precision Soldering: Use appropriate ESD-safe soldering techniques and materials specified for military-grade electronics to prevent damage to the sealed unit.
Pre-Installation Testing: Where possible, conduct in-circuit functional tests prior to final system integration to validate performance.
Operational Validation: Perform full system tests under simulated operational conditions to ensure the Military Aviation Contactor CHZ-1 for High Reliability Use performs as intended within the broader system.
