Direct Replacement for TKD 533D0D in Critical Aviation Applications

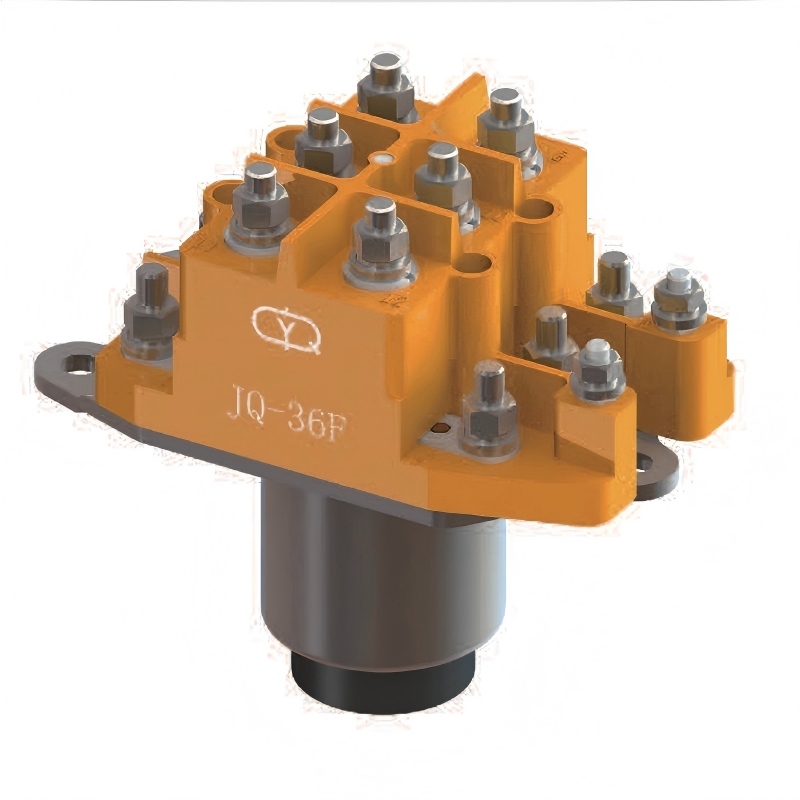

YM presents the JQ-36F Military Aviation Contactor, a high-performance, form-fit-function replacement designed to seamlessly substitute legacy TKA533A0A contactors in demanding aerospace and defense systems. Engineered for ultimate reliability in controlling drone propulsion, aircraft engines, and other critical circuits in trains and planes, this contactor embodies the same stringent quality standards found across our entire range, including Military Metal Relay and Aviation Magnetic Valve products. As a specialized Aviation Contactor for Aircraft, it delivers unmatched performance where failure is not an option.
Core Features & Technical Advantages
The JQ-36F is engineered as a superior drop-in replacement, offering enhanced reliability and performance for modernized systems. It integrates seamlessly into existing designs while providing the robustness expected from a manufacturer of Hydraulic Circuit Breakers and Solid State Relays.
- Perfect Legacy Compatibility: Designed as an exact mechanical and electrical replacement for TKA533A0A series contactors, enabling effortless system upgrades and maintenance without redesign.
- Exceptional Contact Integrity: Ultra-low initial contact resistance (≤50mΩ) ensures minimal voltage drop and power loss. Post-endurance performance (≤200mΩ) guarantees long-term reliability, a standard we uphold across our PCB Board Relay series.
- High-Speed Switching Performance: Features rapid action time (≤3ms) and release time (≤4ms), providing precise control essential for flight-critical systems and automated industrial processes.
- Military-Grade Environmental Sealing: Hermetically sealed construction with a maximum leakage rate of ≤10⁻¹ Pa·cm³/s, offering superior protection against moisture, dust, and pressure extremes—similar to the sealing technology in our Aviation Oil Sealed Valve products.
- Extended Operational Life: Rated for 1,000,000 operations at full resistive load (1A, 28V DC), significantly reducing maintenance cycles and total cost of ownership.
- Optimized Weight & Efficiency: Weighing less than 3 grams with low coil power consumption (0.3-0.43W), it is ideal for weight and power-sensitive applications in modern drones and aircraft.
- Robust Electrical Isolation: High dielectric strength (500Vrms at normal pressure) and insulation resistance (>500MΩ) ensure safe operation in complex electrical systems alongside components like Aviation Temperature Sensors.
Detailed Technical Specifications
Electrical Performance Parameters
- Coil Power Consumption: 0.3W to 0.43W
- Contact Load Ratings & Lifecycle:
- Resistive Load: 1 Ampere at 28V DC for 1,000,000 operations.
- Low-Level Signal Load: (10 to 50) microamperes (μA) at (10 to 50) millivolts (mV) for 1,000,000 operations.
- Contact Resistance:
- Initial Maximum: 50 milliohms (mΩ).
- Maximum After Life Test: 200 milliohms (mΩ).
- Switching Timing:
- Action (Pull-In) Time: ≤ 3 milliseconds.
- Release (Drop-Out) Time: ≤ 4 milliseconds.
- Minimum Coil Excitation Pulse Width: 10 to 50 milliseconds.
Isolation, Environmental & Physical Properties
- Dielectric Withstanding Voltage:
- At Sea Level / Normal Pressure: 500 Volts RMS, 50Hz.
- Under Low-Pressure / High-Altitude Conditions: 250 Volts RMS, 50Hz.
- Insulation Resistance:
- Initial at Normal Conditions: Greater than 500 Megohms (MΩ).
- After High-Level Life Testing: Greater than 50 Megohms (MΩ).
- Weight: Less than 3 grams.
- Seal Integrity (Tightness): Maximum permissible leakage rate is 1x10⁻¹ Pascal cubic centimeters per second (Pa·cm³/s).
- Coil Voltage (DC): Standard ratings available. Consult for specific voltage requirements or custom Military Aviation Connector integration needs. Specifications are referenced at 25°C (77°F).
Primary Application Scenarios
The JQ-36F is a versatile and reliable High Power Aviation Contactor designed for mission-critical switching across multiple demanding industries.
- Aircraft System Modernization: Direct replacement for TKA533A0A contactors in legacy military and commercial aircraft for power distribution, lighting control, fuel system management, and auxiliary system activation.
- Unmanned Aerial Vehicle (UAV/Drone) Systems: Critical for motor speed controllers, payload release mechanisms, communication system power switching, and battery management in commercial, industrial, and defense drones.
- Ground Support & Railway Equipment: Used in high-vibration environments of ground power units (GPUs), train control systems, and signaling equipment where reliability is paramount.
- Specialized Industrial Automation: Integration into machinery requiring high-cycle life and resistance to harsh environments, often working in concert with Military Pressure Sensors and Industrial Power Relays.
- Test & Measurement Rigs: Providing reliable load switching in aviation component test stands and calibration equipment for systems involving Aviation Haulage Pressure Sensors or Military Electronic Horns.
Step-by-Step Integration & Replacement Guide
- System Identification & Safety: Confirm the existing part number matches TKA533A0A. Perform a complete system power-down and follow all lock-out/tag-out (LOTO) procedures.
- Removal of Legacy Component: Document the wiring configuration. Carefully disconnect all wires from the old contactor terminals. Remove the mounting hardware.
- Installation of JQ-36F: Mount the new JQ-36F contactor in the same location using appropriate hardware. Ensure it is seated firmly without imposing mechanical stress on the housing or terminals.
- Electrical Reconnection: Reconnect all wires to the corresponding terminals on the JQ-36F as per your documentation. For systems with complex control logic involving PCB Signal Relays, verify the control signal compatibility.
- Pre-Operational Inspection & Test: Before applying main power, conduct a visual inspection and a continuity/resistance check with a multimeter. Briefly energize the coil to verify audible actuation.
- System Power-Up & Functional Validation: Restore system power. Perform gradual functional testing, starting with no-load or low-power conditions, then progressing to full operational tests under monitored parameters to ensure performance meets or exceeds the original specification.
Strategic Value for International Buyers
Choosing YM's JQ-36F delivers measurable advantages for OEMs, MRO facilities, and defense contractors.
- Supply Chain Security & Continuity: Provides a reliable, high-quality alternative source for obsolete or single-source components, mitigating supply chain risks.
- Reduced Lifecycle Costs: The combination of long service life, high reliability, and competitive pricing leads to significantly lower total cost of ownership compared to continually sourcing aging legacy parts.
- Performance & Reliability Assurance: Manufactured with modern materials and processes, the JQ-36F often provides improved performance characteristics (e.g., lower contact resistance) within the identical form factor, enhancing overall system reliability.
- Simplified Logistics & Inventory: One reliable part number from a trusted supplier simplifies procurement and inventory management for maintenance and new builds.
- Expert Technical Partnership: Access to YM's broad engineering expertise across complementary product lines like New Energy Relays, Automotive Relays, and Aviation Microswitches for comprehensive system support.
Commitment to Quality & Manufacturing Excellence
Every JQ-36F contactor is produced under a rigorous quality management system that ensures consistency, traceability, and performance.
- Precision Engineering & Assembly: Automated production lines and cleanroom assembly for critical sealing processes ensure dimensional accuracy and hermetic integrity.
- Comprehensive Testing Regime: 100% in-line testing of electrical parameters (contact resistance, timing, coil function). Batch-level environmental stress screening (ESS) and life cycle抽样 testing validate durability claims.
- Material & Process Control: Strict incoming material inspection and controlled manufacturing processes, similar to those used for our Metal Sealing Relay production, guarantee component quality.
- Continuous Process Improvement: Data from production and field performance is analyzed to drive ongoing refinements in design and manufacturing, ensuring the JQ-36F remains a best-in-class replacement solution.
