Ultra-Reliable Power Switching for Demanding Aerospace Applications
YM's JQ-QY47F Military Aviation Contactor is engineered for mission-critical power distribution where failure is not an option. Designed specifically for drones, aircraft engines, and other high-performance aviation systems, this high-quality contactor delivers exceptional reliability for engines, train controls, and various aircraft subsystems. It represents the pinnacle of YM's expertise in aerospace-grade switching technology, complementing our comprehensive portfolio of Military Metal Relays, Aviation Connectors, and Hydraulic Circuit Breakers.

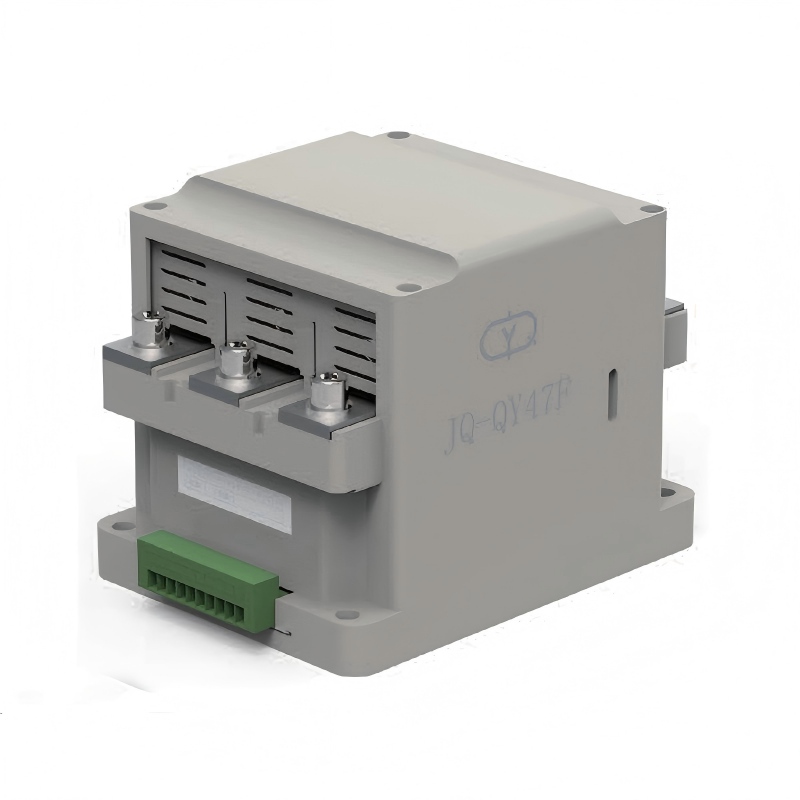

Product Gallery & Technical Views
Engineering Excellence: Core Features & Advantages
Optimized for Aerospace Performance and Reliability
- Ultra-Efficient Operation: Minimal coil power consumption (0.3-0.43W) reduces system thermal load and extends overall equipment life.
- Exceptional Contact Durability: Rated for 1,000,000 operations at full load (1A, 28V DC resistive) plus an additional 1,000,000 cycles at low-level switching (10-50µA, 10-50mV).
- Superior Electrical Performance: Extremely low contact resistance (≤50mΩ initial, ≤200mΩ after life testing) ensures minimal power loss and voltage drop.
- High-Speed Switching Capability: Fast action and release times (≤4ms) with precise control via 10-50ms incentive pulses, enabling rapid system responses.
- Robust Environmental Protection: Hermetic sealing with leakage rate ≤10⁻³ Pa·cm³/s protects against moisture, dust, and corrosive agents in harsh operating conditions.
- Excellent Dielectric Strength: Withstands 500Vr.m.s. at normal atmospheric pressure and 250Vr.m.s. at reduced pressure (50Hz), with insulation resistance exceeding 500MΩ.
- Lightweight Aerospace Design: Weighing under 3 grams, optimized for weight-critical applications in modern drones and aircraft systems.
This contactor shares the same rigorous design philosophy as our PCB Board Relays and Solid State Relays, ensuring seamless integration into advanced electronic systems.
Detailed Technical Specifications
Electrical Parameters
- Coil Power Consumption: 0.3W - 0.43W
- Contact Rating: 1A at 28V DC (resistive load)
- Contact Life: 1×10⁶ operations at rated load; 1×10⁶ operations at low-level load
- Contact Resistance: Initial ≤50mΩ; After life test ≤200mΩ
- Switching Time: Action time ≤4ms; Release time ≤4ms
- Dielectric Strength: 500Vr.m.s. @ normal pressure (50Hz); 250Vr.m.s. @ low pressure (50Hz)
- Insulation Resistance: >500MΩ @ normal pressure; >50MΩ after high-level life test
- Incentive Pulse Width: 10-50ms for reliable actuation
Physical & Environmental Specifications
- Weight: Less than 3 grams
- Sealing Performance: Leakage rate ≤10⁻³ Pa·cm³/s
- Operating Temperature Reference: Coil voltage specifications referenced at 25°C
- Construction: Military-grade materials and hermetic sealing
System Integration Guidelines
- Application Analysis: Verify compatibility with your system's voltage, current, environmental conditions, and switching frequency requirements.
- Circuit Design: Design control circuitry to provide proper coil excitation (10-50ms pulses) and implement necessary protection components for inductive loads.
- Mechanical Installation: Mount securely using appropriate hardware, ensuring no mechanical stress is transferred to the contactor body or terminals.
- Electrical Connection: Use aerospace-grade wiring practices and proper termination techniques, similar to installation standards for Military Aviation Connectors and Aviation Sockets.
- Environmental Sealing Check: If used in environmentally sealed enclosures, verify complementary sealing integrity around the contactor installation.
- Pre-commissioning Testing: Perform comprehensive functional tests including contact resistance measurement, timing verification, and load cycling before system deployment.
Primary Application Scenarios
Mission-Critical Power Control Across Multiple Sectors
- Unmanned Aerial Systems: Power management for propulsion motors, flight controllers, camera gimbals, and communication payloads in military and commercial drones.
- Aircraft Propulsion Systems: Switching within engine control units (ECUs), fuel management systems, and ignition circuits for both turbine and piston engines.
- Avionics & Subsystems: Integration into environmental control systems, landing gear controls, lighting circuits, and auxiliary power units (APUs).
- Ground Support & Testing Equipment: Reliable switching in aircraft maintenance platforms, test benches, and charging systems.
- Specialized Vehicle Systems: Applications in railway controls and specialty vehicles requiring aerospace-grade reliability, often integrated with Aviation Temperature Sensors and Military Pressure Sensors.
Like our New Energy Relays for emerging transportation sectors, the JQ-QY47F addresses evolving power management challenges with proven reliability.
Value for Procurement & Engineering Teams
- Enhanced System Reliability: Significantly reduces maintenance requirements and unexpected failures, lowering total lifecycle costs.
- Weight Optimization Benefits: Ultra-lightweight design contributes directly to improved fuel efficiency and increased payload capacity.
- Risk Reduction: High dielectric strength and hermetic sealing minimize risks of electrical failure in challenging environments.
- Supply Chain Confidence: Manufactured by YM with the same expertise applied to our Aviation Rocker Switches and Aviation Microswitches, ensuring consistent quality and dependable supply.
- Technical Synergy: Supported by engineering teams experienced with diverse Aerospace Components including Industrial Power Relays and Automotive Relays for cross-domain applications.
Quality Assurance & Standards Compliance
The JQ-QY47F is manufactured in facilities implementing rigorous quality management systems aligned with aerospace industry requirements. While specific certifications for this model should be confirmed per order, our production processes adhere to high-reliability standards comparable to those used for our Military Pressure Sensors and other aviation-grade components. We maintain traceability and documentation to support customer qualification processes.
Customization & Special Requirements
YM offers engineering support for customized solutions based on the JQ-QY47F platform. Potential customization areas include:
- Specific coil voltage and resistance values
- Alternative terminal types and configurations
- Special environmental testing and screening requirements
- Modified sealing approaches for unique operating conditions
- Marking and documentation according to customer specifications
Our experience with custom PCB Signal Relays and Latching Relays enables us to adapt the JQ-QY47F to meet precise application needs.
Manufacturing Process & Quality Control
Every JQ-QY47F contactor undergoes a comprehensive manufacturing and verification process:
- Precision Component Manufacturing: Military-grade materials are precision-machined and treated to exact specifications.
- Automated Assembly: Robotic systems ensure consistent assembly of contact mechanisms, coils, and hermetic enclosures.
- 100% Electrical Testing: Each unit is tested for contact resistance, operate/release timing, dielectric strength, and insulation performance.
- Sealing Verification: Hermetic units undergo rigorous leak testing to confirm ≤10⁻³ Pa·cm³/s performance.
- Final Quality Validation: Statistical process control and batch testing ensure consistent performance across production runs.
This meticulous approach mirrors the quality standards applied to our complete range of aerospace components, including Polarized Relays and switching devices, ensuring dependable performance in the world's most demanding applications.
