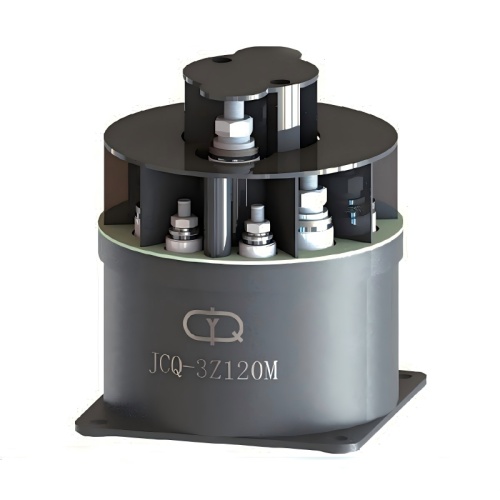

Reliable Aircraft Contactors JCQ-3Z120M

JCQ-3Z120M Military Aviation Contactor:

High-Performance Replacement for Z-A4N LEACH Series

The JCQ-3Z120M Military Aviation Contactor is a precision-engineered, high-reliability replacement specifically designed to supersede Z-A4N LEACH series contactors in critical aerospace applications. As a premium component in YM's comprehensive Military Aviation Contactor portfolio, this advanced switching device delivers exceptional performance for drone systems, aircraft engines, and aviation power distribution networks where compatibility with legacy systems is essential for continued operations.

Engineered with exact mechanical and electrical compatibility, the JCQ-3Z120M maintains the complete form, fit, and function of original Z-A4N components while incorporating modern manufacturing advantages. Manufactured to the same rigorous standards as our extensive range of Military Metal Relays and High Power Aviation Contactors, this product provides a reliable, modern solution for obsolescence management and system sustainment.

Product Visualization & Documentation



Technical Specifications

Electrical Performance Parameters

• Coil Power Consumption: 0.3W - 0.43W range (energy-efficient operation)
• Contact Load Ratings:
  • Standard Power Load: 1A at 28V DC (resistive)
  • Precision Signal Load: 10-50μA at 10-50mV (control circuits)
  • Operational Life: Minimum 100,000 cycles for both applications
• Contact Resistance Performance:
  • Initial Contact Resistance: ≤ 50mΩ
  • Maximum After Endurance Testing: ≤ 200mΩ
• Timing Characteristics:
  • Actuation Time: ≤ 4ms
  • Release Time: ≤ 4ms
  • Minimum Reliable Pulse Width: 10-50ms

Environmental & Mechanical Properties

• Dielectric Strength:
  • Standard Atmospheric Conditions: 500V RMS, 50Hz
  • High Altitude Conditions: 250V RMS, 50Hz (maintains performance)
• Insulation Resistance:
  • Initial Measurement: > 500MΩ
  • After Accelerated Life Testing: > 50MΩ
• Weight Specification: < 3 grams (lightweight aerospace design)
• Hermetic Sealing Standard: Maximum leakage rate: 1×10⁻³ Pa·cm³/s
• Reference Conditions: All electrical specifications referenced at 25°C standard temperature

Key Features & Competitive Advantages

• Z-A4N LEACH Compatibility: Direct drop-in replacement with identical mechanical dimensions, mounting patterns, and electrical interfaces
• Military-Grade Durability: Engineered to withstand extreme aerospace environments with vibration resistance comparable to Military Electronic components
• Advanced Hermetic Sealing: Complete environmental protection against moisture, dust, and contaminants, meeting standards equivalent to Aviation Oil Sealed Valves
• Dual-Function Design: Capable of handling both power switching and precision signal circuits, offering versatility similar to advanced PCB Signal Relays
• High-Speed Performance: Maximum 4ms switching time for critical control and safety applications
• Extended Service Life Architecture: 100,000+ operational cycles significantly reduce maintenance frequency and total lifecycle costs
• Weight-Optimized Construction: <3g weight contributes to aircraft weight reduction initiatives
• Energy-Efficient Operation: Low power consumption minimizes system thermal load and power requirements
• Altitude Performance Capability: Maintains specified dielectric strength under reduced atmospheric pressure conditions
• Modern Manufacturing Advantages: Contemporary production techniques ensure tighter tolerances and consistent performance potentially exceeding original specifications
• Assured Supply Chain Solution: Eliminates dependency on obsolete Z-A4N components with reliable ongoing production

Installation & Replacement Procedure

For seamless replacement of Z-A4N LEACH contactors, follow this systematic procedure:

1. System Compatibility Verification: Confirm existing system operates at 28V DC and loads do not exceed 1A rating
2. Physical Compatibility Check: Verify JCQ-3Z120M matches Z-A4N's exact dimensions, mounting configuration, and terminal layout
3. Safety Protocol Implementation: De-energize system following established aircraft maintenance procedures and safety protocols
4. Direct Replacement Installation: Remove existing Z-A4N contactor and install JCQ-3Z120M using original mounting hardware
5. Electrical Connection Procedure: Connect terminals according to original wiring scheme, following installation practices consistent with Aviation Temperature Sensor systems for signal circuits
6. Pre-Commissioning Testing: Perform comprehensive testing including contact resistance measurement, switching timing verification, and insulation resistance validation
7. System Operational Validation: Conduct system-level testing under controlled conditions to validate performance meets or exceeds original specifications
8. Documentation & Traceability: Record component replacement in maintenance documentation for compliance and traceability purposes

Application Areas & Industry Use Cases

The JCQ-3Z120M is engineered for critical power management applications across diverse aerospace platforms:

• Legacy Aircraft System Sustainment: Direct replacement for Z-A4N LEACH contactors in aging commercial, military, and specialized aviation platforms
• Advanced UAV/Drone Power Systems: Power distribution, motor control integration, battery management, and payload switching in unmanned aerial systems
• Aircraft Engine & Propulsion Systems: Starter circuit management, generator control interfaces, fuel system switching, and auxiliary power unit integration
• Avionics Power Distribution Networks: Primary power switching for communication systems, navigation equipment, radar installations, and electronic warfare platforms
• Military & Defense Applications: Critical power control in weapon systems, surveillance equipment, and integration with specialized Military Aviation Connectors
• Ground Support & Maintenance Infrastructure: Integration into aircraft maintenance systems, test equipment, ground power units, and diagnostic platforms
• Industrial High-Reliability Systems: Applications requiring performance standards comparable to Industrial Power Relays within aerospace-specific configurations

Value Proposition for Aviation Industry: The JCQ-3Z120M delivers a cost-effective obsolescence management solution with enhanced reliability and guaranteed supply availability. Partnering with YM provides access to comprehensive expertise in Aviation Contactor for Aircraft systems and complementary technologies including Hydraulic Circuit Breakers, Aviation Magnetic Valves, and Military Pressure Sensors.

Quality Standards & Regulatory Compliance

• Manufactured under stringent aerospace quality management systems
• Compliance with relevant MIL-STD specifications for environmental testing including vibration, shock, and temperature cycling
• Complete material traceability, lot control, and documentation protocols
• RoHS compliance available as standard configuration or upon specific customer requirements
• Documentation support for integration into certified aerospace platforms and maintenance programs
• Test reports, material certifications, and compliance statements provided for regulatory support

Customization Capabilities

While engineered as an exact Z-A4N replacement, YM offers extensive customization capabilities:

• Electrical Configuration Adaptations: Custom coil voltage specifications, alternative contact materials for specific load profiles, or modified current handling capabilities
• Termination & Interface Solutions: Various terminal configurations, custom lead arrangements, or integration with specific Military aircraft Plug interface systems
• Mechanical Modification Capabilities: Alternative mounting features, custom orientation indicators, or specialized marking requirements for maintenance identification
• Enhanced Testing & Validation Protocols: Additional qualification testing, extended environmental stress screening, or specific performance validation testing
• Identification & Traceability Systems: Custom part numbering schemes, serialization, date coding, or customer-specific labeling for comprehensive maintenance tracking
• Specialized Packaging Solutions: Custom packaging for maintenance kits, bulk packaging configurations for MRO facilities, or ESD-protective packaging for sensitive applications

Production & Quality Assurance Process

Every JCQ-3Z120M contactor undergoes a rigorous, fully documented manufacturing and testing regimen:

1. Material Qualification & Full Traceability: Aerospace-grade materials sourced from approved suppliers with complete documentation and end-to-end traceability
2. Precision Component Manufacturing: Critical components produced to exacting tolerances using advanced, controlled manufacturing processes
3. Automated Assembly with In-Process Verification: Consistent assembly utilizing specialized fixtures with integrated verification of critical dimensional parameters
4. Advanced Hermetic Sealing & Validation: State-of-the-art sealing techniques followed by mandatory leak testing to ensure environmental protection integrity
5. 100% Comprehensive Electrical Testing: Every unit undergoes complete testing including contact resistance, switching timing, coil parameters, and dielectric strength validation
6. Comparative Performance Benchmarking: Batch testing against original Z-A4N specifications to verify equal or superior performance characteristics
7. Final Quality Audit & Documentation Completion: Comprehensive dimensional, functional, and documentation verification before protective packaging and shipment

This quality-focused manufacturing philosophy extends across our entire product portfolio, from specialized Solid State Relays to complex Aviation Contactor systems and complementary components.
