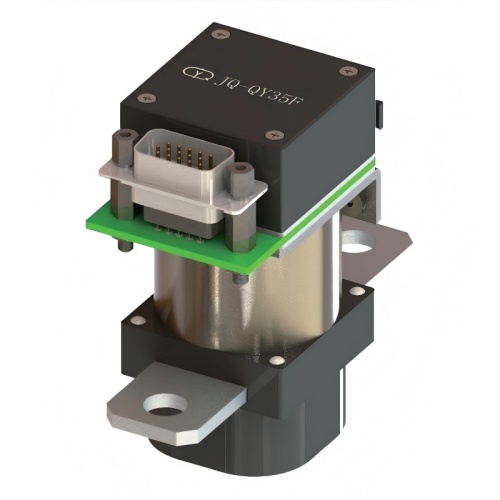

Military Grade Aviation Contactor JQ-QY35F

JQ-QY35F Military Aviation Contactor:

Direct Replacement for CC02XXP EACH Series

The JQ-QY35F Military Aviation Contactor is a precision-engineered, high-reliability replacement specifically designed to replace CC02XXP EACH series contactors in critical aerospace applications. As a key component in YM's extensive Military Aviation Contactor lineup, this product delivers exceptional performance for drone systems, aircraft engines, and aviation power distribution where compatibility with existing systems is paramount.

Engineered with exact mechanical and electrical compatibility, the JQ-QY35F maintains the form, fit, and function of original CC02XXP components while incorporating modern manufacturing advantages. Built to the same rigorous standards as our comprehensive range of Military Metal Relays and High Power Aviation Contactors, this contactor provides a reliable solution for obsolescence management and system maintenance.

Product Visualization & Documentation



Technical Specifications

Electrical Performance Parameters

• Coil Power Consumption: 0.3W - 0.43W range (energy-efficient design)
• Contact Load Capabilities:
  • Standard Power Switching: 1A at 28V DC (resistive load)
  • Precision Signal Switching: 10-50μA at 10-50mV
  • Operational Life: 100,000 cycles minimum for both applications
• Contact Resistance Performance:
  • Initial Resistance: ≤ 50mΩ
  • After Life Testing: ≤ 200mΩ
• Timing Characteristics:
  • Actuation Time: ≤ 4ms
  • Release Time: ≤ 4ms
  • Minimum Pulse Width: 10-50ms for reliable operation

Environmental & Mechanical Properties

• Dielectric Strength:
  • Standard Conditions: 500V RMS, 50Hz
  • High Altitude Conditions: 250V RMS, 50Hz (maintains performance)
• Insulation Resistance:
  • Initial: > 500MΩ
  • Post-Testing: > 50MΩ
• Weight: < 3 grams (lightweight aerospace design)
• Sealing Performance: Maximum leakage: 1×10⁻³ Pa·cm³/s
• Reference Conditions: All specifications referenced at 25°C standard temperature

Key Features & Benefits

• CC02XXP EACH Compatibility: Direct drop-in replacement with identical mechanical dimensions and electrical interfaces
• Military-Grade Durability: Constructed to withstand extreme aerospace environments with vibration resistance comparable to Military Electronic components
• Hermetic Sealing Technology: Complete environmental protection against moisture and contaminants, matching standards of Aviation Oil Sealed Valves
• Dual-Function Design: Capable of handling both power switching and precision signal circuits, offering versatility similar to advanced PCB Signal Relays
• Fast Response Time: 4ms maximum switching speed for critical control applications
• Extended Service Life: 100,000+ operational cycles significantly reduce maintenance requirements and total cost of ownership
• Lightweight Construction: <3g weight contributes to aircraft weight reduction initiatives
• Energy Efficient Operation: Low power consumption minimizes system heat generation and power requirements
• Altitude Performance: Maintains electrical integrity at reduced atmospheric pressures encountered at high altitudes
• Modern Manufacturing Advantages: Contemporary production techniques ensure consistent performance potentially exceeding original specifications
• Assured Supply Availability: Eliminates dependency on obsolete CC02XXP EACH components with reliable ongoing production

Installation & Replacement Procedure

For seamless replacement of CC02XXP EACH contactors, follow this systematic procedure:

1. System Compatibility Verification: Confirm existing system operates at 28V DC and loads do not exceed 1A rating
2. Physical Compatibility Check: Verify JQ-QY35F matches CC02XXP dimensions, mounting pattern, and terminal configuration
3. Safety Protocol Implementation: De-energize system following established aircraft maintenance procedures
4. Direct Replacement Installation: Remove existing CC02XXP contactor and install JQ-QY35F using original mounting hardware
5. Electrical Connection: Connect terminals according to original wiring scheme, following practices consistent with Aviation Temperature Sensor installations for signal circuits
6. Pre-Commissioning Testing: Perform comprehensive testing including contact resistance measurement and switching timing verification
7. System Validation: Conduct operational testing under controlled conditions to validate performance
8. Documentation Update: Record component replacement in maintenance documentation for traceability

Application Areas & Industry Use Cases

The JQ-QY35F is ideally suited for the following applications:

• Legacy Aircraft System Maintenance: Direct replacement for CC02XXP EACH contactors in aging commercial and military aircraft
• Unmanned Aerial Systems: Power distribution, motor control, battery management, and payload switching in drones and UAVs
• Aircraft Engine Control Systems: Starter circuits, generator control, fuel system management, and auxiliary power unit switching
• Avionics Power Distribution: Primary power switching for navigation systems, communication equipment, and radar installations
• Military & Defense Applications: Integration with weapon systems, surveillance platforms, and specialized Military Aviation Connectors
• Ground Support Equipment: Power control in aircraft test systems, maintenance equipment, and ground power units
• Industrial High-Reliability Systems: Applications requiring performance standards comparable to Industrial Power Relays with specific compatibility requirements

Procurement Value Proposition: The JQ-QY35F offers reliable CC02XXP replacement with extended service life, reducing maintenance costs and eliminating obsolescence challenges. Partnering with YM provides access to integrated solutions including Hydraulic Circuit Breakers, Aviation Magnetic Valves, and complementary components for complete system compatibility and support.
