Reliable High-Power Aviation Contactor JCQ-3H450F

Product Overview

The Military Aviation Contactor JCQ-3H450F is a high-performance, precision-engineered aerospace contactor designed as a direct replacement for the LEACH CA450-A19YN-011. This robust component is engineered for critical switching applications in demanding military and commercial aviation environments, including drone systems, aircraft engine controls, and various aerospace power distribution networks. Manufactured to exacting military standards, it ensures reliable operation under extreme conditions of vibration, temperature, and altitude where component failure is not an option. As part of YM's comprehensive lineup of aviation components, which includes specialized items like the Military Aviation Encoding Switch and Aviation Rocker Switch, the JCQ-3H450F stands as a testament to our commitment to reliability and performance in the aerospace sector.

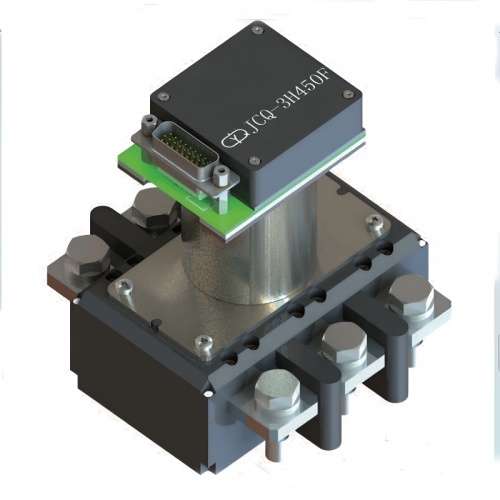

Product Image

Technical Specifications

The JCQ-3H450F is defined by its precise technical parameters, ensuring compatibility and superior performance as a drop-in replacement.

• Coil Power Consumption: Energy-efficient operation with consumption between 0.3W and 0.43W.
• Contact Load & Lifecycle: High reliability with a rating for resistive loads of 1A at 28V DC, achieving a lifecycle of 1 x 10^6 operations. Also tested for low-level signal switching at (10–50)μA and (10–50)mV for an equivalent high cycle count.
• Contact Resistance: Excellent conductivity with an initial contact resistance of ≤50mΩ, remaining ≤200mΩ after full lifecycle endurance testing.
• Timing Parameters: Fast response with both action time and release time ≤4ms, enabling precise circuit control critical for aviation systems.
• Dielectric Strength: High insulation integrity, withstanding 500V r.m.s. at 50Hz under normal atmospheric pressure and 250V r.m.s. under low-pressure conditions.
• Insulation Resistance: Maintains >500MΩ initially and >50MΩ after rigorous high-level life testing, ensuring safety and isolation.
• Weight & Sealing: Lightweight design at <3g. Features hermetic sealing with a leakage rate ≤1 x 10^-3 Pa·cm³/s, providing robust protection against environmental contaminants.

Product Features & Advantages

Engineered to meet and exceed the performance of the original LEACH component, the JCQ-3H450F offers distinct advantages for system integrators.

1. Form-Fit-Function Replacement: Designed as a direct, pin-for-pin substitute for the LEACH CA450-A19YN-011, ensuring seamless integration into existing systems without redesign.
2. Military-Grade Construction: Built to withstand the harsh environmental stresses of military aviation, including extreme shock, vibration, and wide temperature fluctuations.
3. Enhanced Reliability & Longevity: The optimized contact system and robust materials deliver a proven operational life exceeding one million cycles, reducing maintenance intervals and total cost of ownership.
4. Optimized for Weight-Critical Applications: At under 3 grams, it contributes directly to weight reduction goals in aircraft and UAV design, improving fuel efficiency and payload capacity.
5. Superior Hermetic Sealing: Advanced sealing technology ensures integrity against moisture, dust, and fluids, making it suitable for use in conjunction with other sealed systems like Aviation Oil Sealed Valves and Hydraulic Circuit Breakers.

Our expertise in manufacturing high-reliability components such as Military Metal Relays and High Power Aviation Contactors is directly applied to the JCQ-3H450F, guaranteeing unmatched quality.

Integration & Replacement Procedure

Follow these general steps for safe and correct replacement. Always consult the specific aircraft maintenance manual for authorized procedures.

1. System Power-Down & Safety: Ensure the aircraft or system is completely powered down and all relevant safety lock-out/tag-out protocols are followed.
2. Removal of Legacy Contactor: Carefully disconnect and remove the existing LEACH CA450-A19YN-011 contactor, documenting the exact wiring configuration and mounting orientation.
3. Pre-Installation Inspection: Visually inspect the JCQ-3H450F for any damage. Verify the mounting interface and connector compatibility.
4. Installation: Mount the new JCQ-3H450F contactor using the specified torque for mounting hardware. Reconnect all electrical leads according to the documented pinout, ensuring secure connections.
5. Post-Installation Verification: Before restoring full power, perform continuity checks, insulation resistance tests, and a functional test by briefly energizing the coil to verify proper actuation.

Application Scenarios

The JCQ-3H450F is designed for mission-critical applications across a wide spectrum of aerospace and defense platforms:

• Unmanned Aerial Systems (UAS/Drones): Critical for power distribution to flight control actuators, engine starters, and mission payloads in both military and commercial drones.
• Manned Aircraft Systems: Used within engine control units (ECUs), fuel pump controls, environmental control systems, and secondary power distribution panels.
• Avionics & Electrical Power Centers: Provides reliable load switching in aircraft electrical power distribution systems, often working alongside components like Aviation Ammeters and Copper Fuse Holders.
• Ground Support & Test Equipment: Ideal for use in high-cycle-rate test benches and mobile ground power units where durability and precise switching are essential.

Value for International Procurement

Selecting the YM JCQ-3H450F delivers significant strategic and operational value to procurement teams and engineers:

• Risk Mitigation & Supply Chain Diversification: Provides a reliable, high-quality alternative source for a critical aviation part, reducing dependency on single-source suppliers.
• Cost-Effectiveness: Offers competitive pricing without compromising on quality or performance, coupled with a long service life that lowers the total cost of ownership.
• Quality Assurance: Manufactured under strict quality controls, contributing to system reliability and supporting airworthiness certification efforts.
• Technical Partnership: Backed by YM's engineering support and deep expertise in Aviation Contactors for Aircraft and related systems like Military Pressure Sensors.

Certifications & Compliance

YM is dedicated to manufacturing components that meet the rigorous demands of the aerospace industry. Our production processes for components like the JCQ-3H450F are designed to align with relevant international standards for performance, material sourcing, and traceability. We work closely with customers to meet specific qualification requirements.

Customization & OEM Services

For volume production programs, YM offers engineering collaboration and limited customization options for the JCQ-3H450F series to meet unique application needs. Potential adaptations can include:

• Custom coil voltage ratings.
• Specific connector or terminal types.
• Modified mounting configurations.
• Customer-specific labeling, packaging, and documentation.

Our capability extends across our product range, including custom PCB Signal Relays and Solid State Relays for specialized Aviation Applications.

Production & Quality Assurance Process

Every JCQ-3H450F is manufactured in our specialized facility with a focus on aerospace-grade quality:

1. Advanced Material Selection: Sourcing of high-grade, traceable materials for contacts, springs, and housings.
2. Precision Manufacturing: Utilization of automated stamping, CNC machining, and robotic coil winding for consistency.
3. Controlled Assembly: Assembly takes place in controlled environments to prevent contamination.
4. Hermetic Sealing: Performed in specialized chambers to achieve the guaranteed leak rate specification.
5. 100% Final Testing: Each unit undergoes rigorous electrical testing (contact resistance, operate/release voltage, insulation resistance) and mechanical inspection.
6. Quality Validation: Regular destructive and non-destructive testing, including life cycle testing and environmental stress screening on production samples.
